WM-AC-DMSR/BT G2

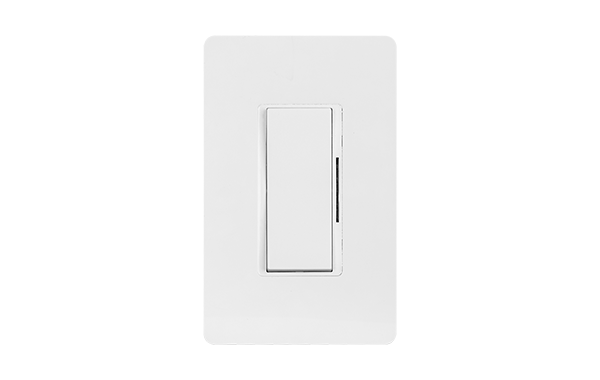

AleoBlue Wireless AC Powered Wall-Box Dimmer Single-Rocker Switch

WM-AC-DMSR/BT Bluetooth® NLC dimmers provide automatic lighting control for a variety of indoor applications. They can replace any standard single-pole wall switch. It allows you to control your lights wirelessly using Bluetooth mesh networking. This technology allows each switch to communicate with others, effectively extending the control range beyond that of a single device.

Download Spec Sheet

APPLICATION

Indoor: retail, education, hospitality, corporate, warehouse, self storage.

FEATURES AND BENEFITS

  • Bluetooth® NLC
  • Manual on/off (Wireless)
  • Continuous Dimming (Wireless)
  • LED status indicator light
  • Mounts in any standard wall box
  • UL Listed. All components have UL certification
  • DO NOT install with power applied to device
  • DO NOT expose the device to moisture
  • Check the “aleoBlue Commissioning User Manual” for settings and commissioning.

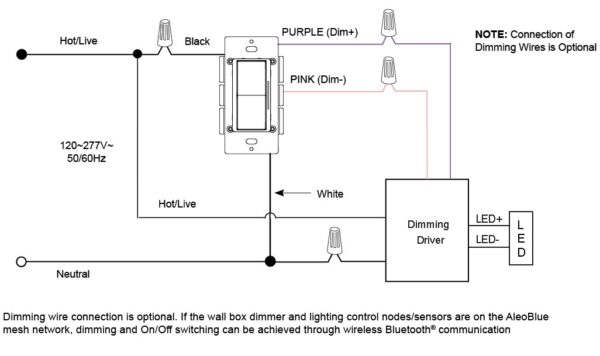

  • The Dimmer connects to a Bluetooth® NLC network to control all of the lights in a specific zone. End Users can program dim levels and set scheduling through the AleoBlue iOS app. The unit also functions as a manual dimmer without control wires to the luminaires.

UL Listed. All components have UL certification.

5-year Limited Warranty. See warranty documentation for more information.
