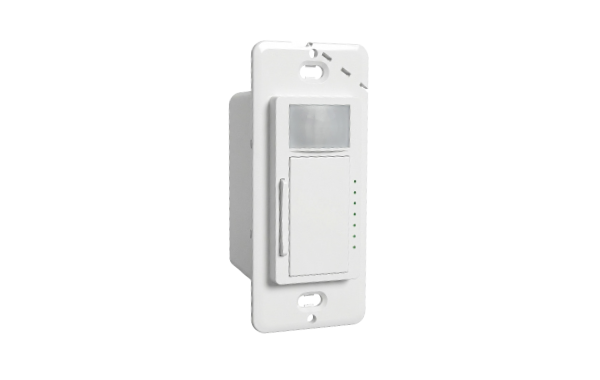

AB-SPIR-WBM-AVK_main-product-image

AB-SPIR-WBM-AVK

Wall-Box PIR Occupancy Sensor / Dimmer Switch

The AB-SPIR-WBM-AVK is an AleoBlue™ wireless Bluetooth® NLC wall switch that combines passive infrared (PIR) occupancy sensing with continuous dimming control. It provides automatic lighting control for a variety of indoor applications and replaces any standard single-pole wall switch. Using Bluetooth® mesh networking, each switch communicates with other AleoBlue™ devices to extend control range and coordinate lighting across a zone.

Download Spec Sheet

APPLICATION

Indoor: Private office, restrooms, closets, storage, education, hospitality, corporate, self storage

FEATURES AND BENEFITS

  • Passive infrared (PIR) occupancy sensor
  • AleoBlue™ Bluetooth® SIG Mesh / NLC
  • Manual On/Off (wireless)
  • Continuous dimming (wireless)
  • LED status / motion indicator light
  • 180° coverage pattern; mounting height up to 4 ft (1.2 m)
  • Mounts in any standard single-gang wall box
  • Color: White

SENSOR OPERATION

The sensor connects to a Bluetooth® NLC network to control all of the lights in a specific zone. The unit also functions as a dimmer to override the pre-configured motion sensor settings.

End Users can program length of time delays, light level sensitivity, sensor range and other setting using the AleoBlue™ iOS app.

  • DO NOT install with power applied to device
  • DO NOT expose the device to moisture
  • Check the “aleoBlue Commissioning User Manual” for settings and commissioning.
  • The Dimmer connects to a Bluetooth® NLC network to control all of the lights in a specific zone. End Users can program dim levels and set scheduling through the AleoBlue iOS app. The unit also functions as a manual dimmer without control wires to the luminaires.

UL Listed. All components have UL certification.

5-year Limited Warranty. See warranty documentation for more information.

AB-DM1S-WBM-AVK G2 Spec Sheet

AB-DM1S-WBM-AVK G2 Installation Guide
