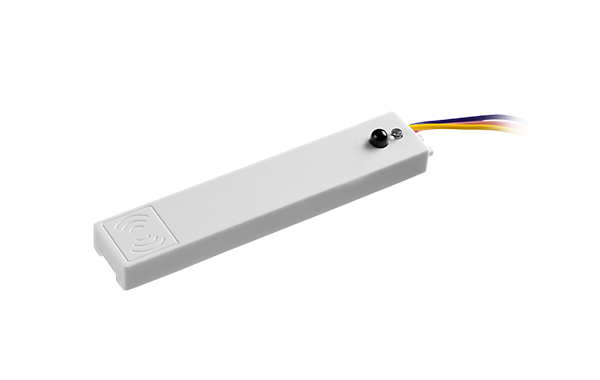

AB-SHF-FM-DVG
AleoBlue Bluetooth® High Frequency Occ Sensor w/ Daylight Harvesting
The AB-SHF-FM-DVG combines occupancy sensing, daylight harvesting, 0-10V dimming and Bluetooth® NLC into a convenient, plug and play, field installable sensor. It automatically detects motion and adjusts lighting levels based on occupancy and ambient light conditions, ensuring optimal illumination while reducing energy waste. Using Bluetooth® NLC—the first wireless standard for professional lighting—this system supports Bluetooth® NLC, enabling reliable, scalable control. It can be easily expanded with AleoBlue™ devices for seamless integration and energy code compliance.
APPLICATION
Indoor: Open offices, Individual offices, Conference rooms, Classrooms, Retail stores, Hospitals, Lobbies.
FEATURES AND BENEFITS
- Bluetooth® NLC
- Utilizes high-frequency microwave sensing to detect motion accurately, even through certain non-metallic materials
- 0-10V Dimming control
- On-board antenna
- LED indicator for motion
- Operates on 12V DC input
- For indoor use only
- Sensor reset by a Remote controller (RC100) & Magnet
- Cost-effective solution for energy savings
- Energy code compliance
- Robust mesh network
- Decentralized control (no single point of failure)
- Gateway-less configuration & operations
Warning
- DO NOT install with power applied to device
- DO NOT expose the device to moisture
Operation
- Check the “aleoBlue Commissioning User Manual” for settings and commissioning.
Warranty
5-year Limited Warranty. See warranty documentation for more information.
AB-SHF-FM-DVG Dimensions

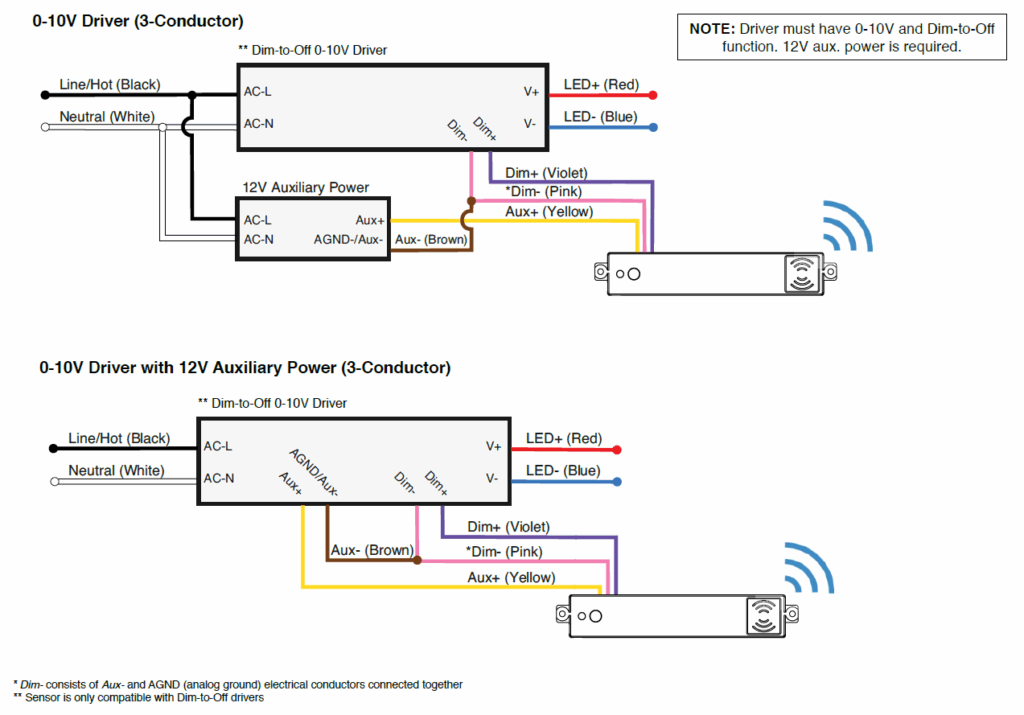

AB-SHF-FM-DVG Wiring Diagram
Specification Sheet
