LTR G7 Series

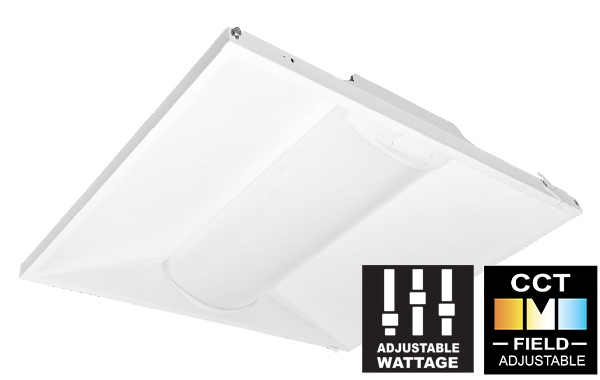

LTR-G7_main-product-image

LTR G7 Series

LED Troffer Retrofit Kit - Sensor Ready

The Aleo LTR™ Series Troffer Retrofit Kit delivers industry-leading versatility with deep energy savings and continuous dimming. Easy and quick installation reduces labor cost and optimizes ROI. The retrofit kit eliminates the need to replace existing luminaire housing, which reduces install time and disposal/removal costs. The precision-formed diffuser produces comfortable and pleasant illumination, enhancing productive spaces in various applications.

Download Spec Sheet

APPLICATION

Provides architectural aesthetics for retail, schools, offices, healthcare, and other various commercial applications.

FEATURES AND BENEFITS

  • Reduces Inventory and Increases Flexibility
  • Field Adjustable Wattage & CCT
  • AleoBlue™ – Wireless Bluetooth® Networked Lighting Controls (NLC)
  • Sensor Ready with Quick Connect Port
  • Field Install Plug and Play Sensor
  • Luminaire-level Lighting Controls (LLLC)

Simple construction with minimal parts allows for easy handling and installation. Luminaire features matte white durable finish.

Reflector systems features highly reflective coating and delivers balanced, comfortable luminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.

UL Classified. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2.

Continuous dimming (0-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy-savings and code compliance.

7-year Limited Warranty. See warranty documentation for more information.

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped with luminaire quick-disconnect.

Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (4) different wattages and (5) different CCTs via switch on driver.

Installs in most troffer luminaires. Retrofit kit fits within troffer and ceiling T-bar grid, eliminating need to remove existing fixture housing.

LTR G7 Spec Sheet

LTR G7 Installation Guide

LTR G7 IES Files (ZIP)

Form Factor Catalog No. Nominal Wattage Color Temperature Lumen (lm) Wattage (W) Efficacy (lm/W)
2’x4’ LTR-24-UXL/8CT G7-HD (SR/RC) 17 2700K 2,604 17.0 153.2
3000K 2,663 16.8 158.5
3500K 2,739 16.6 165.0
4000K 2,745 16.7 164.4
5000K 2,706 17.0 159.2
20 2700K 2,827 18.7 151.2
3000K 2,893 18.5 156.4
3500K 2,979 18.3 162.8
4000K 2,984 18.4 162.2
5000K 2,938 18.7 157.1
28 2700K 3,717 25.1 148.1
3000K 3,815 24.9 153.2
3500K 3,908 24.5 159.5
4000K 3,943 24.8 159.0
5000K 3,863 25.1 153.9
34 2700K 4,648 32.5 143.0
3000K 4,766 32.2 148.0
3500K 4,882 31.7 154.0
4000K 4,912 32.0 153.5
5000K 4,830 32.5 148.6
2’x2’ LTR-22-UXL/8CT G7-HD (SR/RC) 15 2700K 2,365 15.2 155.6
3000K 2,433 15.0 162.2
3500K 2,488 14.8 168.1
4000K 2,511 15.0 167.4
5000K 2,496 15.2 164.2
18 2700K 2,683 17.4 154.2
3000K 2,764 17.2 160.7
3500K 2,831 17.0 166.5
4000K 2,852 17.2 165.8
5000K 2,831 17.4 162.7
25 2700K 3,630 24.3 149.4
3000K 3,737 24.0 155.7
3500K 3,823 23.7 161.3
4000K 3,838 23.9 160.6
5000K 3,830 24.3 157.6
30 2700K 4,211 28.9 145.7
3000K 4,344 28.6 151.9
3500K 4,454 28.3 157.4
4000K 4,466 28.5 156.7
5000K 4,442 28.9 153.7
1’x4’ LTR-14-UXL/8CT G7-HD (SR/RC) 15 2700K 2,297 15.3 150.1
3000K 2,394 15.0 159.6
3500K 2,403 14.9 161.3
4000K 2,455 15.1 162.6
5000K 2,442 15.3 159.6
18 2700K 2,608 17.5 149.0
3000K 2,709 17.1 158.4
3500K 2,738 17.1 160.1
4000K 2,792 17.3 161.4
5000K 2,790 17.6 158.5
25 2700K 3,501 24.4 143.5
3000K 3,662 24.0 152.6
3500K 3,685 23.9 154.2
4000K 3,761 24.2 155.4
5000K 3,754 24.6 152.6
30 2700K 4,065 29.1 139.7
3000K 4,232 28.5 148.5
3500K 4,263 28.4 150.1
4000K 4,357 28.8 151.3
5000K 4,339 29.2 148.6
