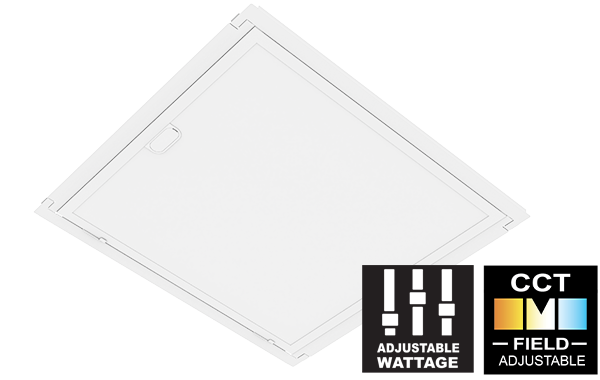

LPR-BL (TAA) Series

Slim LED Panel Retrofit Kit - Sensor Ready

The Aleo LPR-BL™ (TAA) Series Slim LED Panel Retrofit Kit delivers industry-leading performance with deep energy savings and continuous dimming. Easy and quick installation reduces labor cost and optimizes ROI. The retrofit kit eliminates the need to replace existing luminaire housing, which reduces install time and disposal/removal costs. The slim profile, modern design produces pleasant, uniform and low-glare illumination, enhancing spaces in various applications.

Download Spec Sheet

APPLICATION

Retail, schools, offices, healthcare, and other various commercial applications.

FEATURES AND BENEFITS

  • Attractive ROI
  • Field Adjustable CCT and Wattage
  • Slim profile for easy transportation and installation
  • Long life, reduced maintenance
  • Lower energy costs
  • High lumen output
  • 7-year limited warranty
  • TAA compliant for U.S. government procurement

Simple construction with minimal parts allows for easy handling and installation. Solid rigid frame, post-painted matte white finish for strength and durability. Low profile design optimizes shipping, storage, and handling.

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation.

Installs in most standard T-Bar ceiling grid systems. Retrofit kit fits within troffer and ceiling T-bar grid, eliminating need to remove existing fixture housing. Hinged door retrofit kit design.

Continuous dimming (0-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy-savings and code compliance.

Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (3) different wattages and (3) different CCTs via switch on driver.

Back-lit optics produces soft balanced, comfortable luminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.

ETL Listed. Conforms to UL STD. 1598.

7-year Limited Warranty. See warranty documentation for more information.

LPR-BL (TAA) Spec Sheet

LPR-BL (TAA) Installation Guide

LPR-BL IES Files (ZIP)

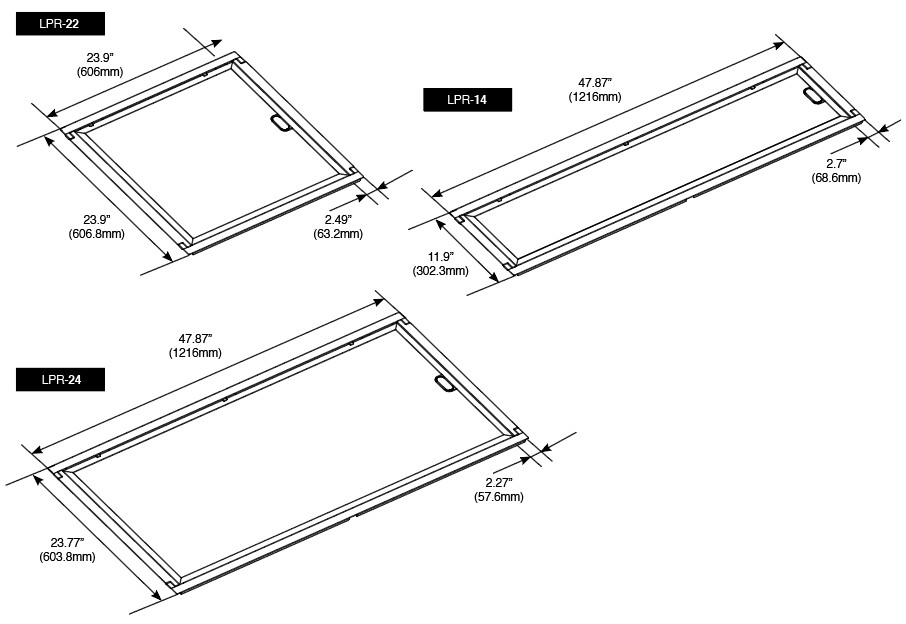

Form Factor Catalog No. Nominal Wattage Color Temperature Lumen (lm) Wattage (W) Efficacy (lm/W)
1’x4′ LPR-BL-14UX-25/8CT G5 SR/RC (TAA) 18 3500K 2207 17.2 128.3
4000K 2270 16.7 135.9
5000K 2246 17.3 129.8
22 3500K 2667 21.0 127.0
4000K 2746 20.4 134.6
5000K 2711 21.1 128.5
25 3500K 2992 23.8 125.7
4000K 3090 23.2 133.2
5000K 3040 23.9 127.2
2’x2′ LPR-BL-14UX-25/8CT G5 SR/RC (TAA) 18 3500K 2407 18.4 130.8
4000K 2538 17.7 143.4
5000K 2483 18.5 134.2
22 3500K 2914 22.5 129.5
4000K 3081 21.7 142.0
5000K 3004 22.6 132.9
25 3500K 3269 25.5 128.2
4000K 3456 24.6 140.5
5000K 3380 25.7 131.5
2’x4′ LPR-BL-24UX-36/8CT G5 SR/RC (TAA) 23 3500K 3358 24.8 135.4
4000K 3490 24.1 144.8
5000K 3436 24.7 139.1
30 3500K 4063 30.3 134.1
4000K 4216 29.4 143.4
5000K 4159 30.2 137.7
36 3500K 4565 34.4 132.7
4000K 4739 33.4 141.9
5000K 4675 34.3 136.3
