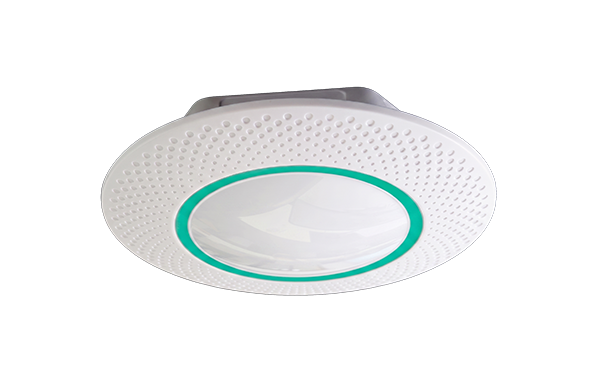

AB-BGW-G1E

AleoBlue™ Wireless Bluetooth® BACnet Gateway

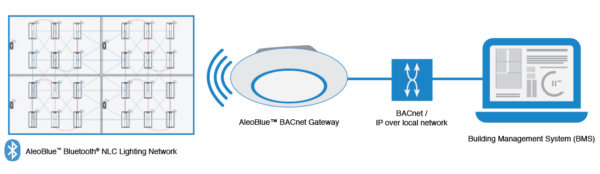

The AB-BGW-G1E connects an AleoBlue™ Bluetooth® NLC lighting network to a Building Management System (BMS) over BACnet/IP. Operating on-premise, it aggregates luminaire and sensor data at the zone level and exposes it as standard BACnet objects, while accepting BMS commands to set zone light levels and recall up to four predefined scenes. All lighting logic remains configured and managed in AleoBlue Commissioning — the gateway adds supervisory visibility and control without modifying the lighting system.

APPLICATION

Indoor commercial and institutional buildings integrating lighting with BMS / building automation: Offices, Healthcare, Education (K-12 and Higher Ed), Retail, Hospitality, Warehouse and Industrial, Government, Mixed-use facilities.

FEATURES AND BENEFITS

Bluetooth® NLC to BACnet/IP gateway
BTL Listed, BACnet/IP (Annex J), B-ASC profile
Up to ~200 Bluetooth® Mesh devices and 100 lighting zones per gateway
PoE (IEEE 802.3af) or 5VDC micro-USB power
Operates on the local network — no internet connectivity required
Change-of-Value (COV) reporting; Structured View topology
Multi-color LED status ring with 17+ defined operating and diagnostic states
Single source of truth — lighting logic stays in AleoBlue™ Commissioning
Zone-level monitoring of occupancy, light level, ambient light, energy use, and health
BMS-driven scene recall and target light-level control across any zone
Offline, USB-based commissioning workflow for secure building environments
Self-contained — no cloud dependency, no central controller, no single point of failure on the lighting side
