AB-SPIR-FM-DVB
AleoBlue Wireless Bluetooth PIR High Bay Occ. Sensor w/ Daylight Harvesting
The AB-SPIR-FM-DVB combines occupancy sensing, daylight harvesting, 0-10V dimming and Bluetooth® Mesh into a convenient, plug and play, field installable sensor. This advanced sensor brings greater controllability, energy savings, and intelligence to high bay lighting. Utilizing a 3.5mm audio jack, the sensor can be easily installed in the field and is compatible with many Aleo high bay luminaires, reducing lead times and labor cost.
APPLICATION
High bay applications: warehouse, distribution centers, storage, manufacturing, shops, retail.
Exterior applications: area/site lighting, wall packs
FEATURES AND BENEFITS
- Bluetooth mesh SIG
- PIR sensing with daylight harvesting
- Built-in 25mA o-10V sinking current output
- Cost-effective solution for energy savings
- Energy code compliance
- Robust mesh network
- Decentralized control (no single point of failure)
- Gateway-less configuration & operations
Warning
- DO NOT install with power applied to device
- DO NOT expose the device to moisture
Operation
- Check the “aleoBlue Commissioning User Manual” for settings and commissioning.
Warranty
5-year Limited Warranty. See warranty documentation for more information.

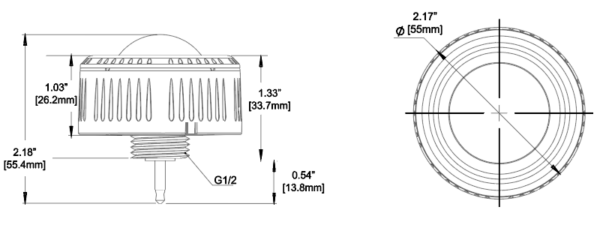

AB-SPIR-FM-DVB Dimensions

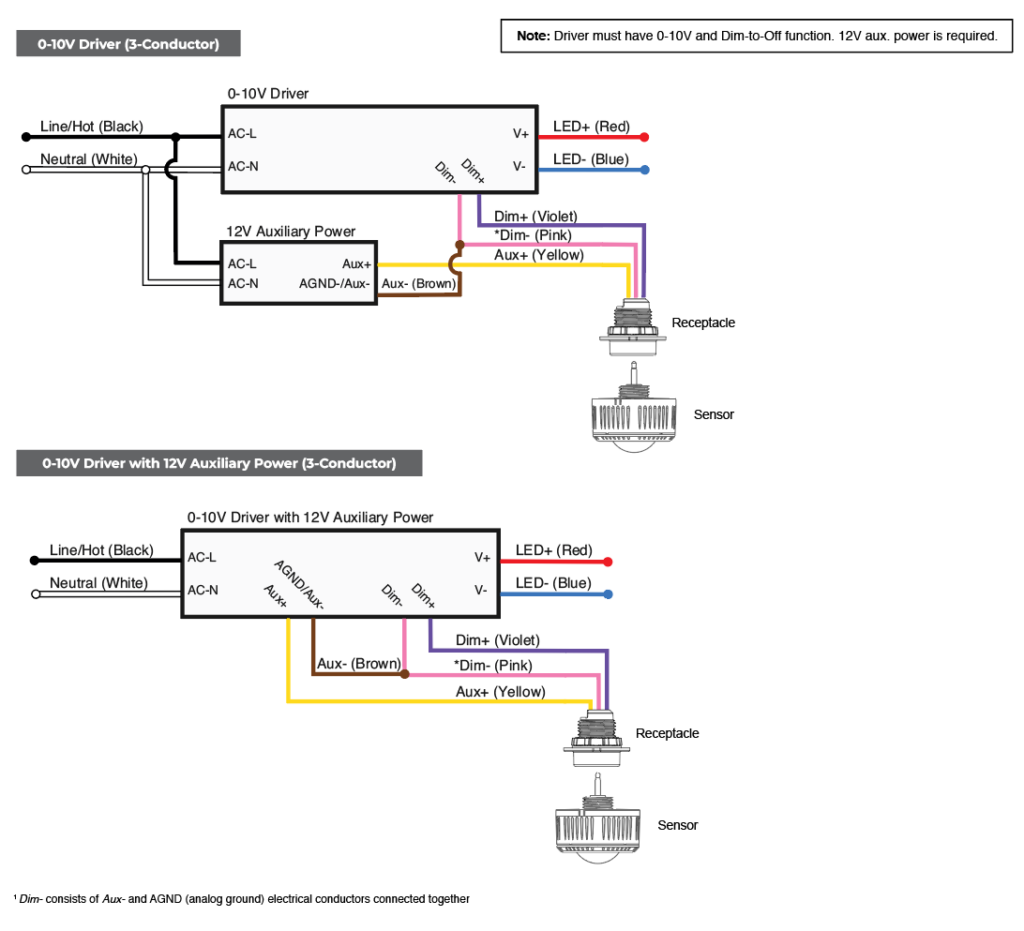

AB-SPIR-FM-DVB Wiring Diagram
Specification Sheet
COMPATIBLE fixtures
XLBM UX Series
Compact Linear LED High Bay
WPX (TAA) Series
Full Cut Off LED Wall Pack
SPG UX Series
Square LED Parking Garage Canopy
SCB UX Series
LED High Bay
RPC UX Series
Round LED Parking Canopy Luminaire
ALX Series
LED Area Luminaire
ALX (TAA) Series
LED Area Luminaire
Similar Products

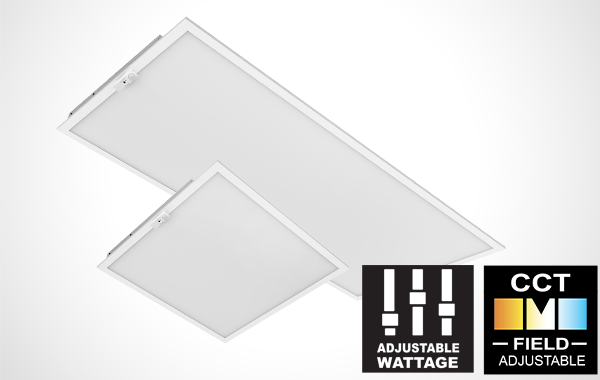

LPS-BL (TAA) Series
