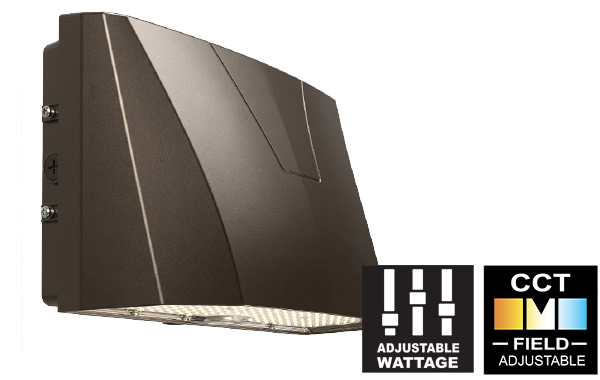

WPX (TAA) Series

Full Cut Off LED Wall Pack

AB-SPIR-FM-DVB Fixtures, Automotive Dealerships, Grocery, Healthcare, Higher Education, K-12 Education, Multi-Family, Outdoor, Outdoor Lighting, Parking Lot, Self Storage, Wall Mount
TAA Compliant

The Aleo WPX™ (TAA) Series combines energy-efficiency, high performance, and rugged construction with a slim profile. Designed look to deliver enhanced performance to outdoor wall-mounted lighting applications. Rugged die-cast housing provides advanced thermal management for long life and weather-proof compartment to withstand challenging, outdoor environments.

APPLICATION

Outdoor wall-mount applications. Building facade. Retail, commercial, Industrial exteriors, school campuses.

FEATURES AND BENEFITS

Attractive ROI
Super Slim Profile
Comes with built-in photocells
Long life, reduced maintenance
Lower energy costs
Low wattage for deep energy Savings
7-year limited warranty
TAA compliant for U.S. government procurement

Construction

Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Weather-proof, gasketed compartment protects electronics against environmental elements. Dark Bronze finish. IP65 Wet Location Rated.

Optical System

High performance LED platforms delivers high efficiency and long life. Full cut-off. Precision-formed forward throw optics designed for superior light distribution and uniformity. Field-adjustable for Type II, III, or IV distribution.

Certifications

UL Listed. All components have safety certification.

Warranty

7-year Limited Warranty. See warranty documentation for more information.

Electrical

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features universal voltage (120-277V) for convenient installation. 0-10V continuous dimming.

Installation & Mounting

Designed to be wall-mounted. Luminaire to be mounted directly over standard 4” junction box (supplied by others) or surface mount and wiring connection through convenient 1/2” threaded conduit entry hub on wall pack sides.

Photocell

Comes Standard with built-in dusk-to-dawn photocell.

Field-Adjustable CCT / Wattage

Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (4) different wattages and (3) different CCTs via switch inside the housing.

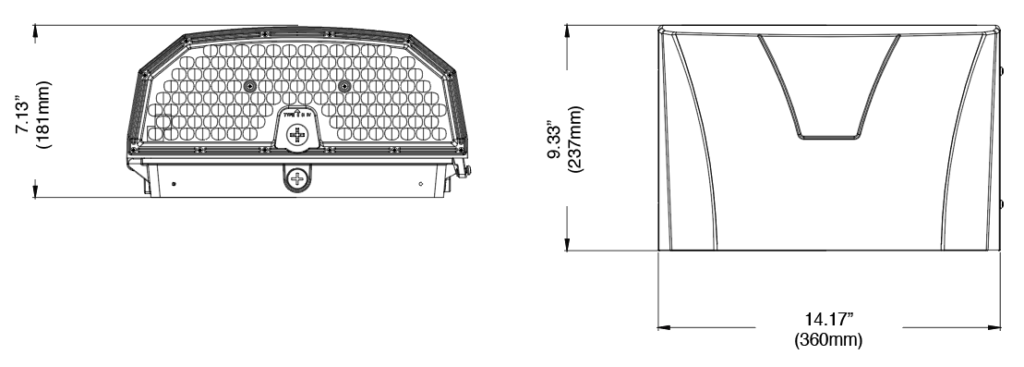

Line Drawing

Specification Sheet

Spec Sheet

Installation Guide

IES Files

IES Files (ZIP)

Catalog No.	Nominal Wattage	Color Temperature	Lumen (lm)	Wattage (W)	Efficacy (lm/W)
WPX-80UX/CT (TAA)	24	3000K	3,288	23.4	140.5
		4000K	3,535	22.6	156.4
		5000K	3,438	23.5	146.3
	40	3000K	5,425	39.0	139.1
		4000K	5,824	37.6	154.9
		5000K	5,666	39.1	144.9
	60	3000K	8,055	58.5	137.7
		4000K	8,631	56.3	153.3
		5000K	8,403	58.6	143.4
	80	3000K	10,639	78.0	136.4
		4000K	11,400	75.1	151.8
		5000K	11,090	78.1	142.0
