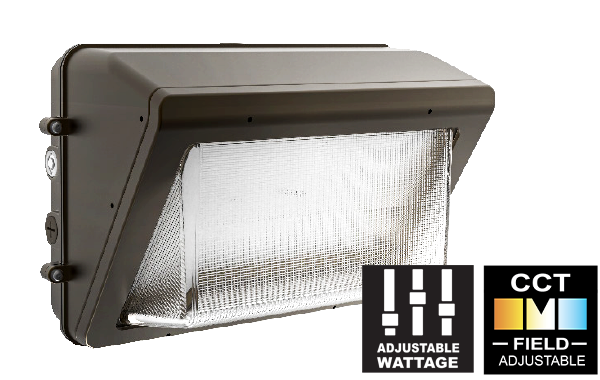

wpe-taa_main-image

WPE (TAA) Series

LED Wall Pack Luminaire

The Aleo WPE™ (TAA) Series combines energy-efficiency, high performance, and rugged construction with a familiar and traditional look to deliver enhanced performance to outdoor wall-mounted lighting applications. Rugged die-cast housing provides advanced thermal management for long life and weather-proof compartment to withstand challenging, outdoor environments. Traditional look helps to maintain familiar building aesthetics.

Download Spec Sheet

APPLICATION

Outdoor wall-mount applications. Building facade. Retail, commercial, industrial exteriors.

FEATURES AND BENEFITS

  • Attractive ROI
  • Low Profile, Slim Design
  • Rugged construction and design
  • Long life, reduced maintenance
  • Lower energy costs
  • High quality light
  • 7-year limited warranty
  • TAA compliant for U.S. government procurement

Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Weather-proof, gasketed compartment protects electronics against environmental elements.

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features universal voltage
(120-277V) for convenient installation. 0-10V continuous dimming.

High performance LED platforms delivers high efficiency and long life. Prismatic glass lens designed for superior light distribution and uniformity. Type IV VS comes standard.

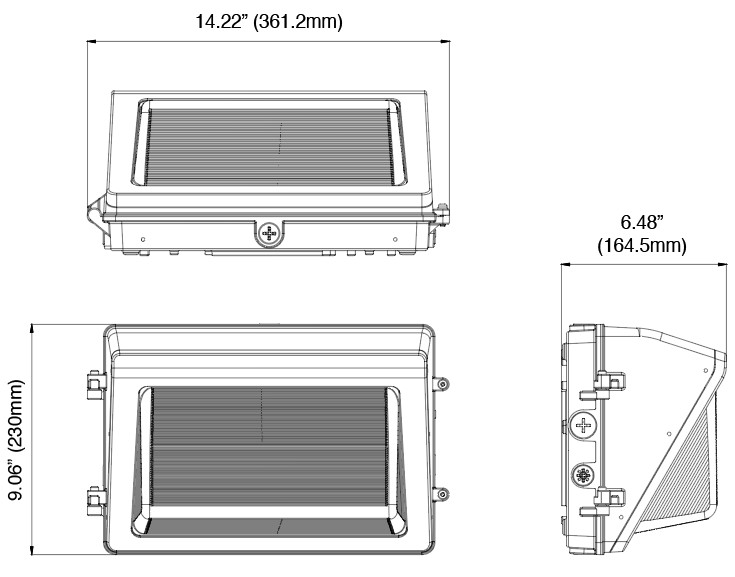

Designed to be wall-mounted higher than 4-ft. from the ground. Luminaire to be mounted directly over standard 4” junction box (supplied by others) or surface mount and wiring connection through convenient 1/2” threaded conduit entry hub.

UL Listed. All components have safety certification.

Comes Standard with built-in dusk-to-dawn photocell.

7-year Limited Warranty. See warranty documentation for more information.

Increased versatility and reduced inventory burden.
Wattage and Color Temp. can be adjusted in the field by selecting (3) different wattages and (3) different CCTs via switch inside the housing.

WPE (TAA) Spec Sheet

WPE (TAA) Installation Guide

WPE (TAA) IES Files (ZIP)

Catalog No. Nominal Wattage Color Temperature Lumen (lm) Wattage (W) Efficacy (lm/W)
WPE-80UX/CT (TAA) 40 3000K 5,483      39.5 138.8
4000K 5,738      38.2 150.2
5000K 5,619      39.6 141.9
60 3000K 8,148      59.3 137.4
4000K 8,521      57.3 148.7
5000K 8,346      59.4 140.5
80 3000K 10,744      79.0 136.0
4000K 11,231      76.3 147.2
5000K 11,017      79.2 139.1
WPE-120UX/CT (TAA) 80 3000K 10,534      76.0 138.6
4000K 11,205      74.4 150.6
5000K 11,011      77.0 143.0
100 3000K 13,034      95.0 137.2
4000K 13,866      93.0 149.1
5000K 13,622      96.2 141.6
120 3000K 15,481     114.0 135.8
4000K 16,457     111.5 147.6
5000K 16,168     115.4 140.1
