SCB UX Series
LED High Bay
The Aleo SCB™ UX Series Slim-Profile Circular High Bay delivers industry-leading performance with a durable, heavy-duty construction. Superior performance, ultra high-efficacy and premium quality provides a robust solution for high ceiling applications, especially warehouse spaces. Delivering high output, quality light and low energy consumption can improve warehouse safety and productivity, lower maintenance cost, and reducing operating costs.
APPLICATION
Provides high output illumination for various commercial industrial applications with high ceilings: warehouse, manufacturing, gymnasiums, cold-storage, wash-down areas
FEATURES AND BENEFITS
- Attractive ROI
- Slim profile for easy transportation and installation
- Ideal for use with sensor and advanced controls
- Long life, reduced maintenance
- Wet-Location, IP69K Rated
- Lower energy costs
- High lumen output
- ETL Sanitation Listed, conforms to NSF 2 standard
- DLC Premium
- 7-year limited warranty
Construction
Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Weather-proof, gasketed driver compartment protects electronics against environmental elements. IP69K, wet location.
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) and High Voltage (277-480V) for convenient installation. Comes equipped standard with 10’ white STOW cord.
Installation & Mounting
Single point mount for Eye Bolt.
Controls & Dimming
Continuous dimming (1-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy-savings and code compliance.
Optical System
Diffuser lens reduces glare and improves occupant working conditions while maintaining high efficiency emission.
Certifications
UL Listed. Wet location rated. ETL Sanitation Listed, conforms to NSF 2 standard
Warranty
7-year Limited Warranty. See warranty documentation for more information.

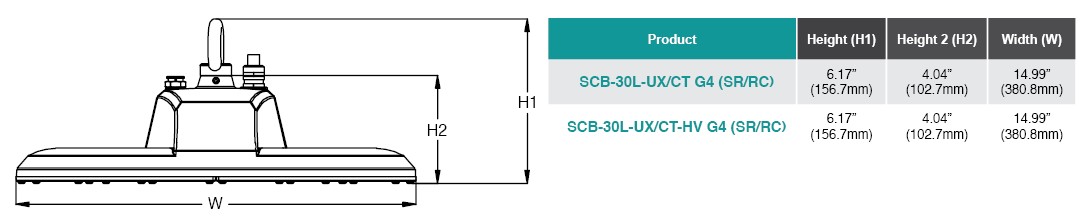

SCB UX Line Drawing
Specification Sheet
Installation Guide
IES Files
| Catalog No. | Nominal Wattage | Color Temperature | Lumen (lm) | Wattage (W) | Efficacy (lm/W) |
|---|---|---|---|---|---|
| SCB-30L-UX/CT G4 (SR/RC) | 100 | ||||
| 4000K | 15,639 | 97.5 | 160.4 | ||
| 5000K | 15,649 | 97.2 | 161.0 | ||
| 150 | |||||
| 4000K | 22,778 | 146.2 | 155.8 | ||
| 5000K | 22,818 | 145.8 | 156.5 | ||
| 200 | |||||
| 4000K | 29,488 | 194.9 | 151.3 | ||
| 5000K | 29,529 | 194.4 | 151.9 | ||
| SCB-30L-UX/CT-HV G4 (SR/RC) | 100 | ||||
| 4000K | 16,145 | 99.6 | 162.1 | ||
| 5000K | 16,232 | 99.4 | 163.3 | ||
| 150 | |||||
| 4000K | 23,531 | 149.4 | 157.5 | ||
| 5000K | 23,646 | 149.0 | 158.7 | ||
| 200 | |||||
| 4000K | 30,458 | 199.2 | 152.9 | ||
| 5000K | 30,620 | 198.7 | 154.1 |
