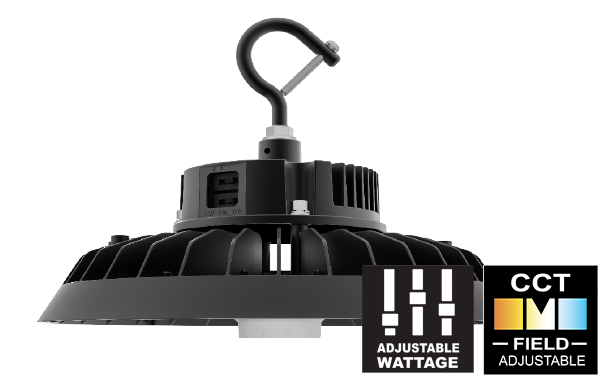

UXB UX (TAA) Series

Circular LED High Bay - CCT Select

The Aleo UXB™ Series, Circular High Bay, combines efficiency, robust construction, and utility to deliver a competitive and high-performance high bay solution for single-point mounting applications. The wet location / IP-rated luminaire provides a versatile solution for high mounting facilities. Delivering high output, quality light and low energy consumption, the UXB improves warehouse safety and productivity, lowers maintenance cost, and reduces operating costs.

APPLICATION

Provides high output illumination for various commercial industrial applications with high ceilings: warehouse, manufacturing, gymnasiums, cold-storage.

FEATURES AND BENEFITS

Attractive ROI
Low Profile, Slim Design
Rugged construction and design
Long life, reduced maintenance
Lower energy costs
High quality light
7-year limited warranty

Construction

Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Integrated, enclosed water-proof driver protects against environmental elements. IP65, Wet Location Rated. Black Finish.

Electrical

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped standard with 6’ white SO cord.

Optical System

Polycarbonate (PC) lens provides protection and high efficiency transmission of light.

Installation & Mounting

Single-point hook mount (hook with screw included).

Certifications

UL Listed. Wet location rated. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2.

Controls & Dimming

Continuous dimming (0-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy-savings and code compliance.

Warranty

7-year Limited Warranty. See warranty documentation for more information.

Field-Adjustable CCT / Wattage

Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (3) different wattages and (3) different CCTs via switch inside the housing.

UXB UX (TAA)

Specification Sheet

UXB UX (TAA) Spec Sheet

Installation Guide

UXB UX (TAA) Installation Guide

IES Files

UXB UX (TAA) IES Files (ZIP)

Catalog No.	Nominal Wattage	Color Temperature	Lumen (lm)	Wattage (W)	Efficacy (lm/W)
UXB-UX-150/CT G5 SR/RC (TAA)	100	3500K	14,539	98.5	147.6
		4000K	15,665	93.8	167.0
		5000K	15,053	98.0	153.6
	125	3500K	17,985	123.1	146.1
		4000K	19,385	117.2	165.4
		5000K	18,632	122.5	152.1
	150	3500K	21,357	147.7	144.6
		4000K	23,016	140.6	163.7
		5000K	22,108	146.9	150.5
UXB-UX-240/CT G5 SR/RC (TAA)	150	3500K	22,240	155.2	143.3
		4000K	24,504	148.6	164.9
		5000K	23,189	154.9	149.7
	200	3500K	29,359	206.9	141.9
		4000K	32,350	198.1	163.3
		5000K	30,603	206.5	148.2
	240	3500K	34,872	248.2	140.5
		4000K	38,436	237.7	161.7
		5000K	36,338	247.7	146.7
