ALX (TAA) Series

LED Area Luminaire

AB-SPIR-FM-DVB Fixtures, Area / Site Lighting, Automotive Dealerships, Grocery, Healthcare, Higher Education, K-12 Education, Outdoor, Outdoor Lighting, Parking Lot, Parking Structure, Self Storage
TAA Compliant

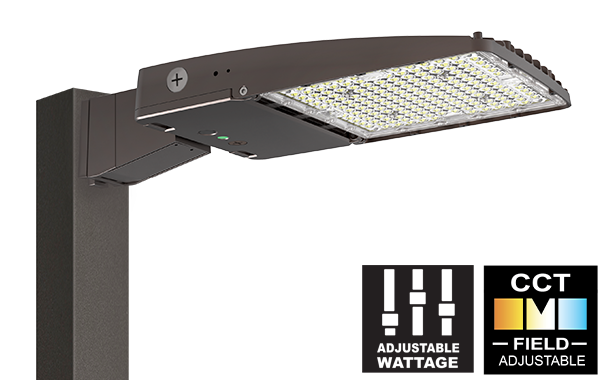

The Aleo ALX™ Series combines energy-efficiency, advanced optical control, and modern slim profile aesthetics to deliver enhanced performance to area lighting applications. Rugged die-cast housing provides advanced thermal management for long life and weather-proof compartment to withstand challenging, outdoor environments.

APPLICATION

Parking lots, walkways, auto dealerships, outdoor retail shopping centers, recreational spaces, campuses.

FEATURES AND BENEFITS

Reduces Inventory and Increases Flexibility
Field Adjustable CCT and Lumen Output
Long life, reduced maintenance
7-year Limited warranty
UL Listed
TAA compliant

Construction

Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Weather-proof, gasketed driver compartment protects electronics against environmental elements.

Optical System

Precision-formed optical lens system reduces glare and improves safety and security by delivering high-efficiency illumination with precise optical distribution. Type III distribution comes standard. Type II, III, IV and V available.

Certifications

UL Listed. All components have UL certification.

Controls & Dimming

Suitable for use with sensors and photocells to achieve deeper energy-savings and code compliance. Comes standard with receptacle for plug and play occupancy sensor or photocell.

Warranty

7-year Limited Warranty. See warranty documentation for more information.

Electrical

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features universal voltage (120-277V) and high voltage (227-480V) for convenient installation.

Field-Adjustable CCT / Wattage

Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (3) different wattages and (3) different CCTs via switch outside the housing.

Installation & Mounting

Versatile platform includes different mounting options, including: straight arm, trunion, slip-fitter, yoke mount and rotatable pole-mount.

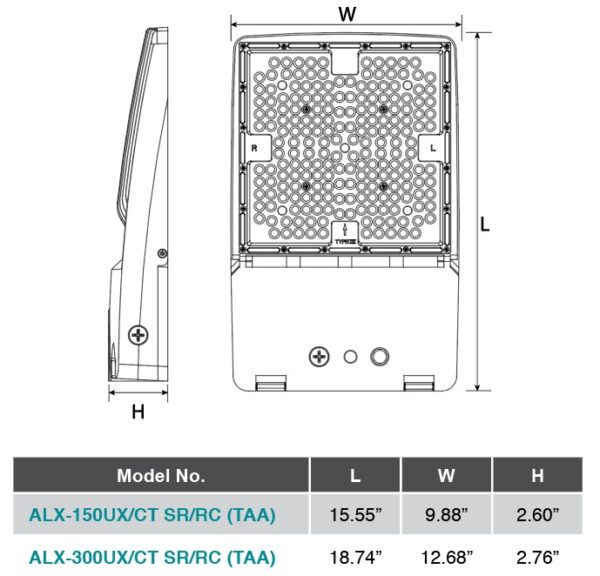

ALX-150, ALX-300 Line Drawing

Specification Sheet

ALX (TAA) Spec Sheet

Installation Guide

ALX (TAA) Installation Guide

IES Files

ALX IES Files (ZIP)

Catalog No.	Nominal Wattage	Color Temperature	Lumen (lm)	Wattage (W)	Efficacy (lm/W)
ALX-150UX/CT SR/RC (TAA)	80	3000K	10,250	80.2	127.8
		4000K	11,385	76.0	149.8
		5000K	10,772	79.5	135.5
	100	3000K	12,675	100.2	126.5
		4000K	14,089	95.0	148.3
		5000K	13,326	99.3	134.2
	150	3000K	18,805	150.2	125.2
		4000K	20,904	142.4	146.8
		5000K	19,774	148.9	132.8
ALX-300UX/CT SR/RC (TAA)	200	3000K	25,253	200.1	126.2
		4000K	28,708	190.5	150.7
		5000K	27,492	199.8	137.6
	240	3000K	30,013	240.1	125.0
		4000K	34,107	228.6	149.2
		5000K	32,661	239.8	136.2
	300	3000K	37,122	300.1	123.7
		4000K	42,198	285.7	147.7
		5000K	40,400	299.7	134.8
