LVX UX Series

LED Linear Vapor Tight Luminaire - CCT Select

Aleo’s LVX™ UX series offers an attractive, energy-saving solution to wet applications. Designed for performance and longevity at an unbeatable value. Manufactured for challenging situations where the fixture’s gasketed enclosure protects against dust, spray, humidity, and liquid.

APPLICATION

Excellent for IP-rated, wet location applications: Parking garage, warehouse, industrial facilities, airports, cold storage, car wash, garden centers, food storage.

FEATURES AND BENEFITS

Attractive ROI
Rugged construction and design
Long life, reduced maintenance
Lower energy costs
High quality light
7-year limited warranty

Construction

Durable enclosure and lens offers protection against dust, jet spray, humidity and water intrusion. Latches ensure solid security from challenging environments.

Electrical

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation.

Field-Adjustable CCT

Increased versatility and reduced inventory burden. Color Temp. can be adjusted in the field by selecting (3) different CCTs via switch on driver box.

Installation & Mounting

For surface-mount or suspension-mount. Equipped with mounting bracket . V-hook hangers available for suspension mount.

Controls & Dimming

Continuous dimming (0-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy-savings and code compliance.

Optical System

Reflector systems features highly reflective gear tray and delivers balanced, comfortable illuminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.

Certifications

UL Listed. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2. Suitable for Wet Locations. DLC Premium

Warranty

7-year Limited Warranty. See warranty documentation for more information.

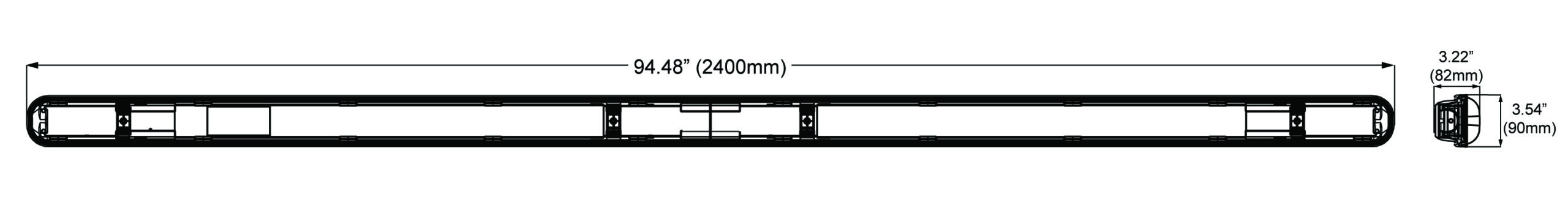

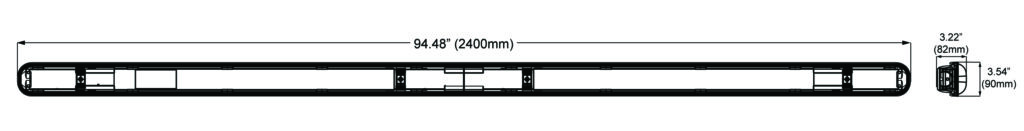

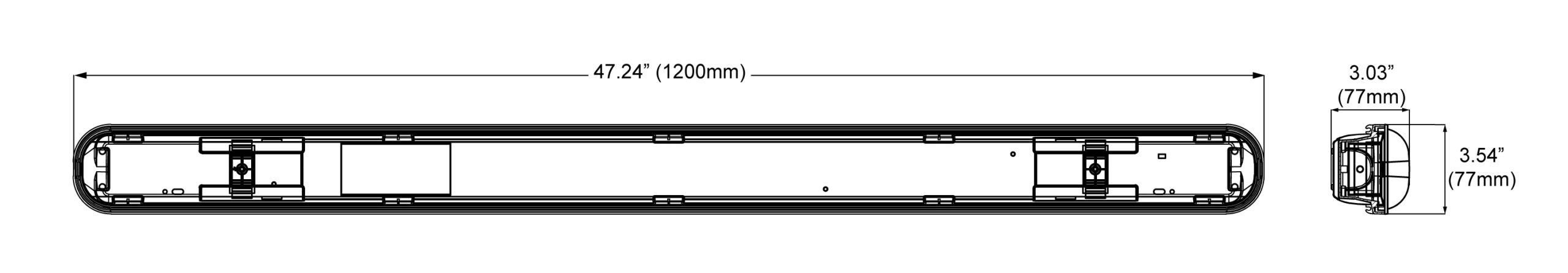

Line Drawing
