Linear Vapor Tight Luminaire
Versatile Wet-Location Linear
Wet Location
Wet Location IP66-rated enclosure protects against dust, moisture, and jet streams.
SLim Profile
Delivers a big punch in a slim profile. High lumen output, durable. Easy shipping, handling, storage and install.

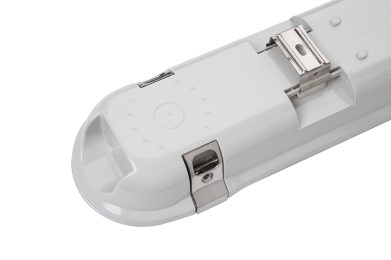

Stainless Steel Latches
Rust-resistant stainless steel latches ensure sealed housing protects against humidity and water intrusion.
Lumen Packages
| FORM FACTOR | MODEL NO. | NOMINAL WATTAGE | 3500K LUMENS | 4000K LUMENS | 5000K LUMENS |
|---|---|---|---|---|---|
|
4' |
LVX-4-UXH-45/8CT XE G4 |
34 |
4719 |
5214 |
4818
|
|
38 |
5320 |
5890 |
5434 |
||
|
45 |
6075 |
6705 |
6210 |
||
|
8' |
LVX-8-UXL-54/8CT XE G4 |
38 |
5402 |
5809 |
5513 |
|
46 |
6292 |
6776 |
6424 |
||
|
54 |
7614 |
8208 |
7776 |

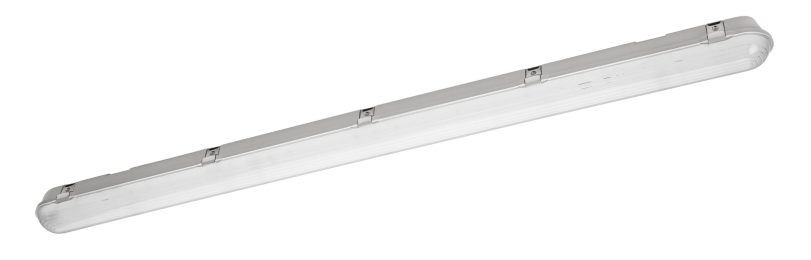

LVX Slim Linear Vapor Tight Series
Energy Savings
Energy Savings
Reduction in Maintenance Cost
Special Features

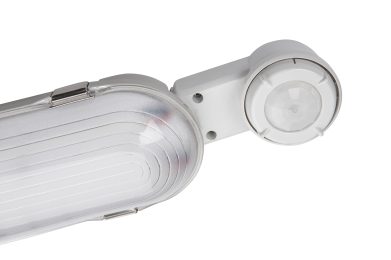

Integrated Occupancy Sensor
Wet-Location occupancy sensor available. Both On/Off and Multi-Level with Daylight available. Ideal for deeper energy savings.
IP66 / Wet Location
Wet Location IP66-rated enclosure protects against dust, moisture, and jet streams.
LED Systems
LVX Luminaire utilizes high-performance components to deliver industry-leading efficacy and reliability. Modular LED modules and driver allow for serviceability and maintenance.

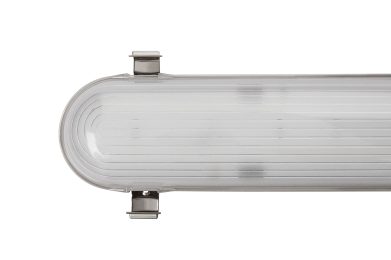

Optical Diffuser
Reflector system features highly reflective gear tray and delivers balanced, comfortable illuminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission
GENERAL APPLICATION
