SPIR-OSDL/BT-PP4-DC-313

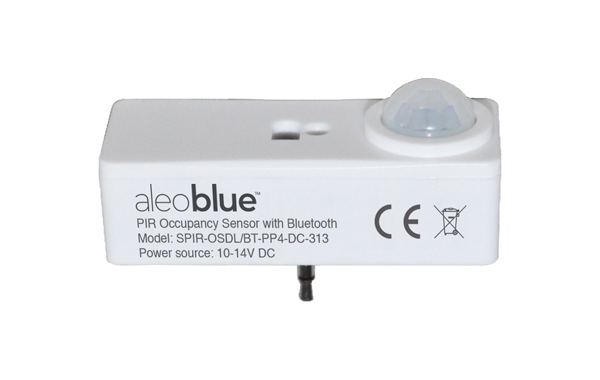

AleoBlue Wireless Bluetooth® PIR Occ Sensor w/ Daylight Harvesting

The SPIR-OSDL/BT-PP4-DC-313 combines occupancy sensing, daylight harvesting, 0-10V dimming and Bluetooth® NLC into a convenient, plug and play, field installable sensor. Utilizing a 2.5mm audio jack, the sensor can be easily installed in the field and is compatible with many Aleo panel luminaires, reducing lead times and labor cost. Using Bluetooth® NLC—the first wireless standard for professional lighting—this system supports Bluetooth® NLC, enabling reliable, scalable control. It can be easily expanded with Bluetooth® NLC-certified products or compatible switches for seamless integration and energy code compliance.

Download Spec Sheet

APPLICATION

Indoor: Open offices, Individual offices, Conference rooms, Classrooms, Retail stores, Hospitals, Lobbies.

FEATURES AND BENEFITS

  • Bluetooth® NLC
  • PIR sensing with daylight haversting
  • On-board antenna
  • LED indicator for motion
  • Sensor reset by a Remote controller (RC100) & Magnet
  • Cost-effective solution for energy savings
  • Energy code compliance
  • Robust mesh network
  • Decentralized control (no single point of failure)
  • Gateway-less configuration & operations
  • DO NOT install with power applied to device
  • DO NOT expose the device to moisture
  • Check the “aleoBlue Commissioning User Manual” for settings and commissioning.

5-year Limited Warranty. See warranty documentation for more information.

SPIR-OSDL/BT-PP4-DC-313 Spec Sheet
