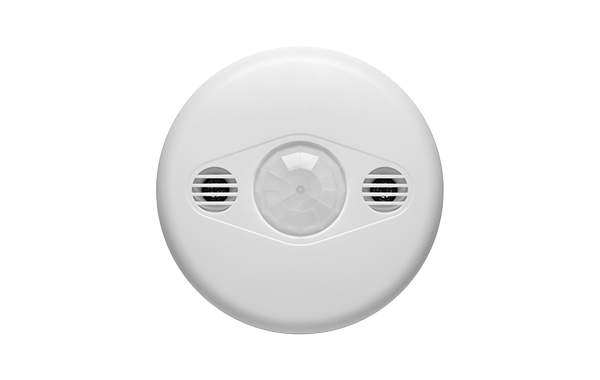

Wireless Bluetooth® Dual Tech Occ Sensor w/ Daylight Harvesting
SDT-OSDL/BT-CM-AC
The SDT-OSDL/BT-CM-AC is a dual-tech Bluetooth sensor, which merge Passive Infrared (PIR) and Ultrasonic technologies for highly accurate occupancy detection. It also include daylight harvesting and 0-10V dimming to further reduce energy consumption in commercial indoor spaces. This combination enhances performance in complex spaces and provides a cost-effective solution for energy savings that meets building energy codes. By leveraging Bluetooth® NLC, the first wireless standard for professional lighting applications which ensures unmatched scalability and reliability, the wireless lighting control system can be seamlessly expanded with Bluetooth® NLC-certified products and/or compatible Bluetooth® switches as needed.
APPLICATION
Indoor: Open offices, Individual offices, Conference rooms, Classrooms, Retail stores, Hospitals, Lobbies.
FEATURES AND BENEFITS
- Bluetooth® mesh compliant
- Bluetooth® NLC Certified
- PIR and Ultrasonic Dual Tech Sensor
- Built-in 5A Relay
- On-board antenna
- Cost-effective solution for energy savings
- Energy code compliance
- Robust mesh network
- Decentralized control (no single point of failure)
- Gateway-less configuration & operations
- UL Listed
Warning
- DO NOT install with power applied to device
Operation
- Check the “aleoBlue Commissioning User Manual” for settings and commissioning.
Warranty
5-year Limited Warranty.

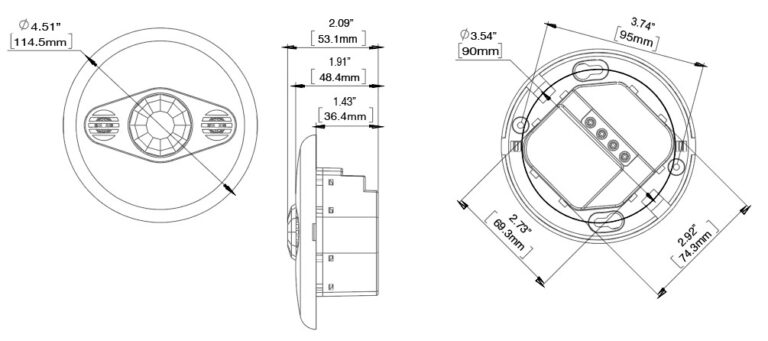

SDT-OSDL/BT-CM-AC Dimensions

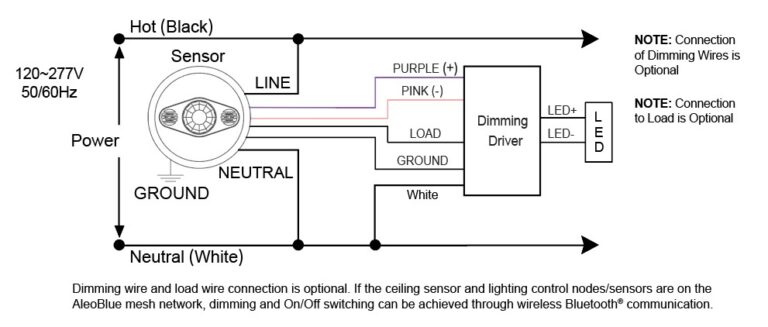

SDT-OSDL/BT-CM-AC Wiring Diagram
Specification Sheet
