BC-SPIR-WBM-ANK

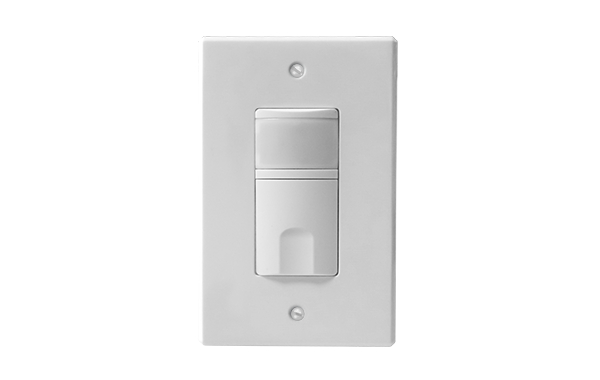

Wall-Box PIR Occupancy Sensor, AC powered

Designed to replace a standard wall switch, BC-SPIR-WBM-ANK uses Passive Infrared (PIR) technology to automatically control lighting based on motion. This device fits into a standard wall box, allowing for both automatic detection and manual control.

Download Spec Sheet

APPLICATION

Indoor: Private office, restrooms, closets, storage, education, hospitality, corporate, self storage.

FEATURES AND BENEFITS

  • PIR Sensor
  • Manual on/off
  • LED motion indicator
  • Mounts in any standard wall box
  • End Users can program length of time delays, VAC or OCC mode, using dip switch on the sensor.
  • UL Listed. All components have UL certification
  • DO NOT install with power applied to device
  • DO NOT expose the device to moisture
  • End Users can program length of time delays, VAC or OCC mode, using dip switch on the sensor.

UL Listed. All components have UL certification.

5-year Limited Warranty. See warranty documentation for more information.

BC-SPIR-WBM-ANK Spec Sheet

BC-SPIR-WBM-ANK Install Guide
