WLC/BT-PLGC-15A-120V-300

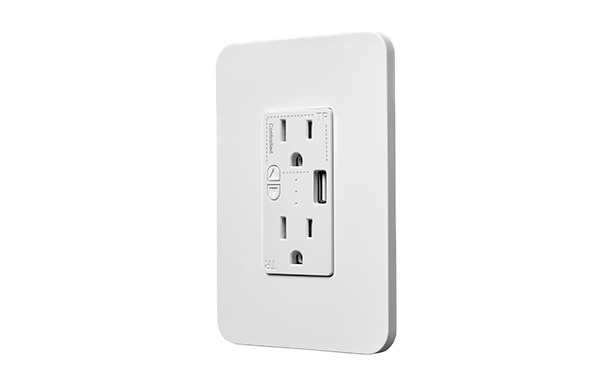

AleoBlue Wireless Bluetooth® Plug Load Control Receptacle
The AleoBlue Wireless Bluetooth® Plug Load Control Receptacle is a smart electrical outlet designed to automate and manage power to plugged-in devices using Bluetooth® technology. It enables energy savings by allowing control based on schedules, occupancy, or user commands through AleoBlue control systems. Ideal for commercial applications, it helps meet energy codes like ASHRAE 90.1 and Title 24 by automatically controlling non-critical plug loads, such as task lighting, monitors, or chargers, when spaces are unoccupied or during off-hours. Its wireless design ensures easy installation and flexibility for retrofits or new projects.
APPLICATION
Indoor spaces with plug load receptacles
FEATURES AND BENEFITS
- Wirelessly connects to sensors and dimmers
- Wireless communication allows easy retrofits without the need to pull control wires between devices
- On/Off control of a device plugged into receptacle
- Bluetooth® NLC wireless communication makes retrofits easy, no need to pull control wire
- Fast installation into standard wall box
Warning
- DO NOT install with power applied to device
- DO NOT expose the device to moisture
Operation
- Check the “aleoBlue Commissioning User Manual” for settings and commissioning.
- This device can be reset to the Unprovisioned Mode by pressing and hold “Up” and “Down” button for 5s to reset the device.
Certifications
FCC, ETL
Warranty
5-year Limited Warranty. See warranty documentation for more information.

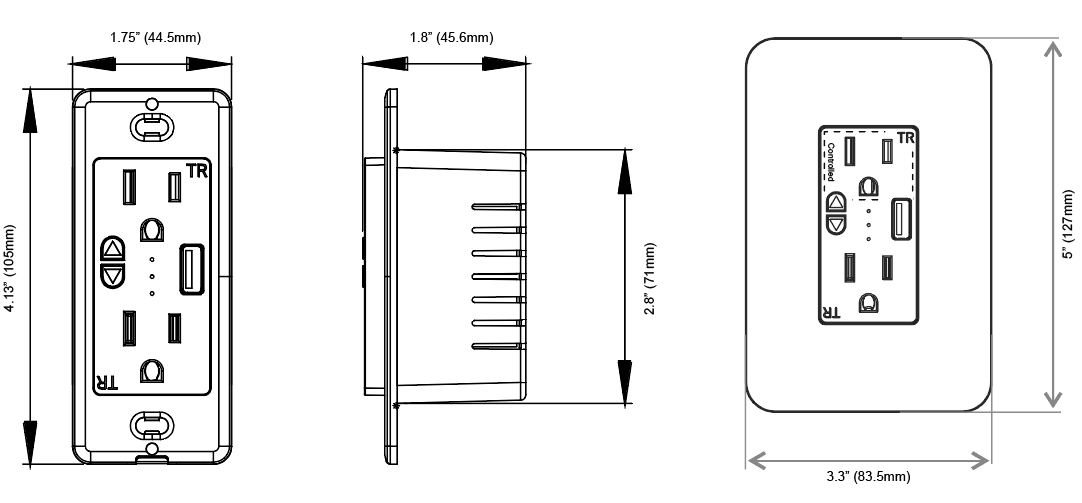

WLC/BT-PLGC-15A-120V-300 Dimensions

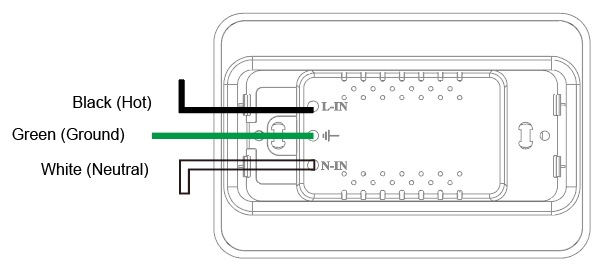

WLC/BT-PLGC-15A-120V-300 Wiring Diagram
Specification Sheet
Installation Guide
