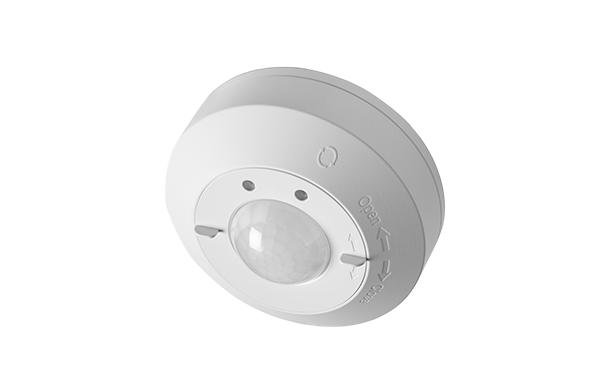

AleoBlue Wireless Bluetooth PIR Occ. Sensor w/ Daylight Harvesting
SPIR-OSDL/BT-CM-AC-210
The SPIR-OSDL/BT-CM-AC-210 combines occupancy sensing, daylight harvesting, 0-10V dimming and Bluetooth® mesh radio circuits into a small package. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. By leveraging Bluetooth® mesh, the first wireless standard for professional lighting applications which ensures unmatched scalability and reliability, the wireless lighting control system can be seamlessly expanded with Bluetooth® mesh-certified products and/or compatible Bluetooth® switches as needed.
APPLICATION
Indoor: Open offices, Individual offices, Conference rooms, Classrooms, Retail stores, Hospitals, Lobbies.
FEATURES AND BENEFITS
- Bluetooth® mesh compliant
- Bluetooth® NLC Certified
- PIR sensing with daylight harvesting
- Built-in 20mA 0-10V signal output
- Built-in 5A Relay
- On-board antenna
- Cost-effective solution for energy savings
- Energy code compliance
- Robust mesh network
- Decentralized control (no single point of failure)
- Gateway-less configuration & operations
- UL Listed
Warning
- DO NOT install with power applied to device
Operation
- Check the “aleoBlue Commissioning User Manual” for settings and commissioning.
Warranty
5-year Limited Warranty. See warranty documentation for more information.
SPIR-OSDL/BT-CM-AC-210 Dimensions

SPIR-OSDL/BT-CM-AC-210 Wiring Diagram

Specification Sheet
