EXL™ Series

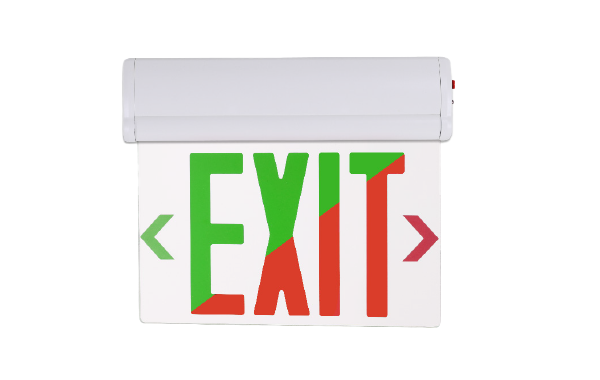

EXL-WH-RG-2S-UM_main-image

EXL™ Series

Bi-Color Edge-Lit Exit Sign

The Aleo EXL™ Series Bi-Color Edge-Lit Exit Sign combines a slim edge-lit appearance with durable construction for commercial egress applications. The injection-molded, flame-retardant, high-impact thermoplastic housing and high-grade acrylic panel provide a clean architectural look, while switchable super-bright red or green LEDs allow field selection of exit color. Universal 120-277VAC operation, included side and ceiling mounting plates, and a universal J-box mounting pattern support quick installation, while the removable front cover simplifies battery maintenance. A built-in 3.6V 500mAh NiMH battery provides a minimum of 90 minutes of emergency operation and includes a test switch and LED status indicator.

Download Spec Sheet

APPLICATION

Office buildings, schools, healthcare facilities, retail stores, hospitality spaces, multifamily residential corridors, and other commercial indoor egress applications. Ideal for lobbies, hallways, stairwells, and architectural interiors where a low-profile, edge-lit exit sign enhances aesthetics while providing reliable emergency wayfinding.

FEATURES AND BENEFITS

  • Flame-Retardant Thermoplastic Housing
  • High-Impact Acrylic Panel Design
  • Switchable Red/Green LED Illumination
  • Field-Selectable Exit Display
  • 100 ft Viewing Distance Visibility
  • Universal 120-277V Input Voltage
  • Side or Ceiling Mounting Options
  • Quick and Easy Installation
  • 90-Minute Emergency Operation
  • UL 924 Listed and Code Compliant
  • Easy Access Front Cover Design
  • 5-Year Limited Warranty

Injection-molded, flame-retardant, high-impact thermoplastic housing with high grade acrylic panel.

Switchable red or green LED (10pcs ea.)

UL Listed to UL924 Emergency Lighting and Power Equipment and CSA C22.2 No. 141 Unit Equipment for Emergency Lighting. Meets NFPA 101 (current Life Safety Code), FCC Title 47, Part 15, Subpart B.

120V-277VAC Universal voltage operation. Emergency unit provided with test switch, LED indicator and rechargeable battery.

Field-selectable bi-color red/green letters, 6” high with 3/4” stroke; 100 ft. viewing distance per UL924.

Product comes standard with side and ceiling mounting plates for quick and easy installation. Removable front cover for easy installation and battery maintenance. Recess Mount Kit is available (sold separately).

Built-in 3.6V 500mAh NiMH battery for minimum 90 minutes emergency operation. Maximum recharge time is 24 hours. Includes test switch and LED indicator.

5-year limited warranty. See warranty documentation for more information.

EXL-WH-RG-2S-UM Spec Sheet
