EML SQ™ Series

EM2L-SQ-WH_main-image

EML SQ™ Series

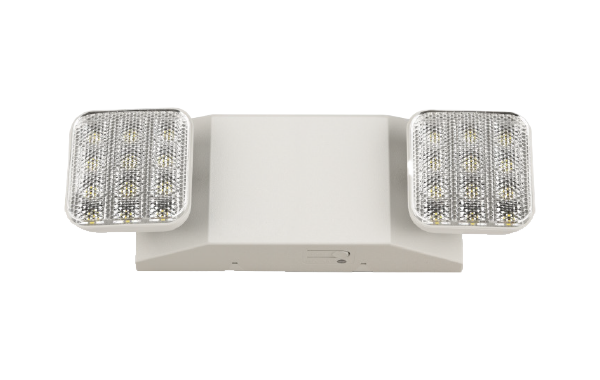

Compact Emergency Light - Dual Head (Square)

The Aleo EML™ Series Emergency Light – Dual Head (Square) combines reliable emergency illumination, energy-efficient LED performance, and a durable thermoplastic ABS housing for commercial indoor applications. Two 12-piece 2835 SMD LED lamp heads provide dependable emergency lighting, while universal voltage (120-277V) input supports flexible installation. The included mounting plate and universal J-box mounting pattern allow for quick wall mounting. A built-in 3.6V 1000mAh NiCad battery delivers a minimum of 90 minutes of emergency operation and includes a test switch and status indicator for easy maintenance.

Download Spec Sheet

APPLICATION

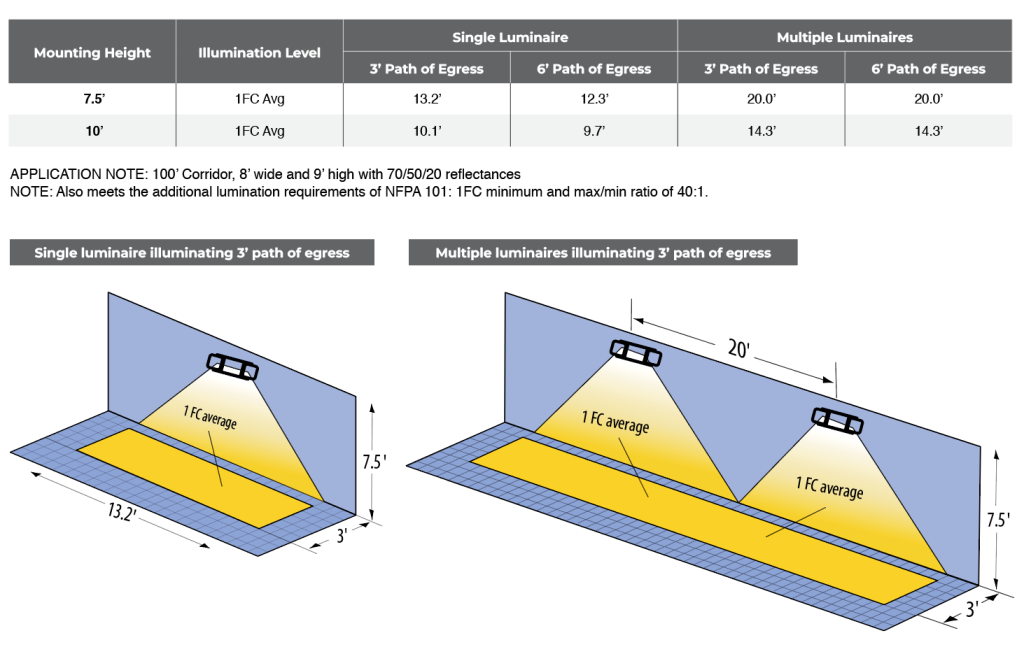

Path-of-egress illumination for code-required emergency lighting per NFPA 101 Life Safety Code. Suitable for corridors, stairwells, hallways, offices, schools, retail spaces, and healthcare facilities at lower mounting heights. Indoor damp-location listed only.

FEATURES AND BENEFITS

  • Durable Thermoplastic ABS Housing
  • UL 94V-0 Flame-Rated Construction
  • High-Efficiency 2835 SMD LED Heads
  • Dual LED Emergency Lamp Heads
  • Universal 120-277V Input Voltage
  • Quick and Easy Installation
  • Universal J-Box Mounting Pattern
  • 90-Minute Emergency Operation
  • UL 924 Listed and Code Compliant
  • 5-Year Limited Warranty

Durable injection-molded thermoplastic ABS housing with UL 94V-0 flame rating.

Two (2) 12pc 2835 SMD LED lamp heads for emergency mode.

UL Listed to UL924 Emergency Lighting and Power Equipment and CSA C22.2 No. 141 Unit Equipment for Emergency Lighting. Damp location listed. Meets NFPA 101 (current Life Safety Code), FCC Title 47, Part 15, Subpart B. RoHS compliant.

Product features universal voltage (120-277V) input for convenient installation. Emergency unit provided with test switch, status indicator and rechargeable battery.

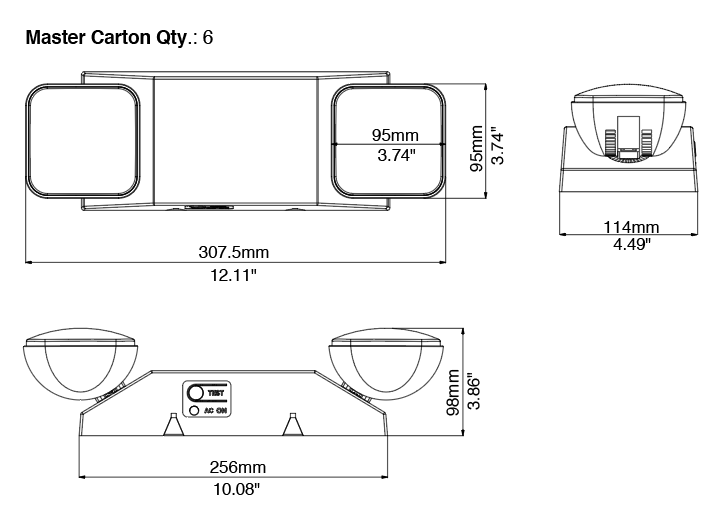

Product comes standard with mounting plate for quick and easy installation. Suitable for wall mount applications. Universal J-box mounting pattern.

Built-in 3.6V 1000mAh NiCad battery for minimum 90 minutes emergency operation. Maximum recharge time is 24 hours. Includes test switch and charge indicator.

5-year limited warranty. See warranty documentation for more information.

EM2L-SQ-WH ECO Spec Sheet
