EMC ECO™ Series

EMC-R-WH-RG ECO_main-image

EMC ECO™ Series

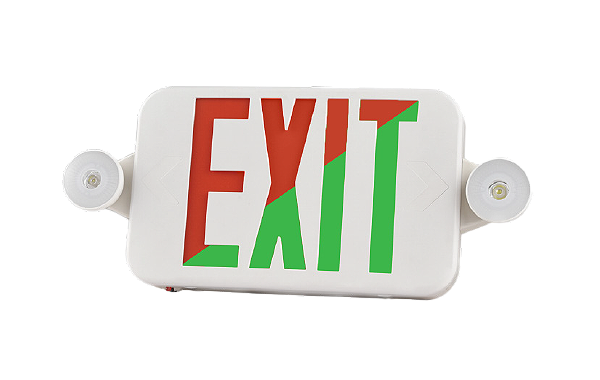

Compact Emergency Combo Exit Sign

The Aleo EMC™ ECO Series combines exit signage and emergency illumination in one compact, low-profile unit for commercial spaces. Field-selectable red or green LED letters mean a single SKU covers either code requirement, and two adjustable 1W LED lamp heads deliver path-of-egress lighting when power is lost. The flame-retardant, high-impact thermoplastic housing is damp-location listed, and a universal 120V-277V input with universal J-box mounting pattern allows fast wall or ceiling installation.

Download Spec Sheet

APPLICATION

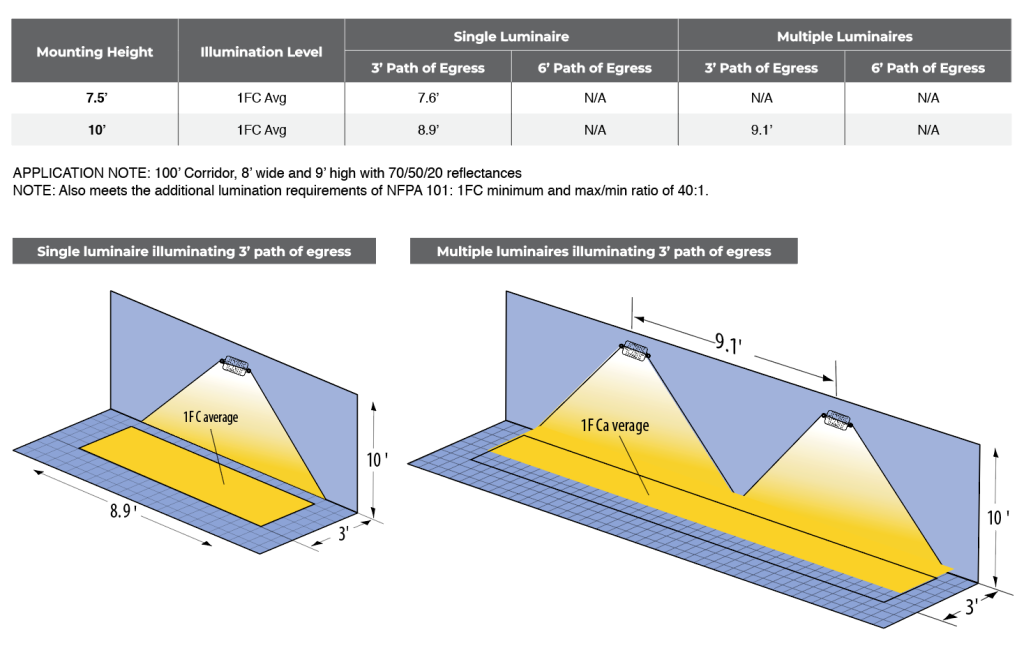

Code-required emergency egress lighting and exit identification per NFPA 101 Life Safety Code. Ideal for hallways, stairwells, offices, schools, retail, healthcare, multifamily, and similar commercial interiors — including damp locations such as covered walkways and parking structures.

FEATURES AND BENEFITS

  • Flame-Retardant Thermoplastic Housing
  • High-Impact Durable Construction
  • Dual 1W LED Lamp Heads
  • Field-Selectable Red/Green Exit Display
  • 100 ft Viewing Distance Visibility
  • Universal 120-277V Input Voltage
  • Wall or Ceiling Mountable Design
  • Quick and Easy Installation
  • 90-Minute Emergency Operation
  • UL 924 Listed and Code Compliant
  • Damp Location Rated
  • 5-Year Limited Warranty

Injection molded, flame retardant, high impact, thermoplastic housing.

Two (2) 1W LED lamp heads for emergency mode.

UL Listed to UL924 Emergency Lighting and Power Equipment and CSA C22.2 No. 141 Unit Equipment for Emergency Lighting. Damp location listed. Meets NFPA 101 (current Life Safety Code), FCC Title 47, Part 15, Subpart B. RoHS compliant.

Product features universal voltage (120-277V) input for convenient installation. Emergency unit provided with test switch, status indicator and rechargeable battery.

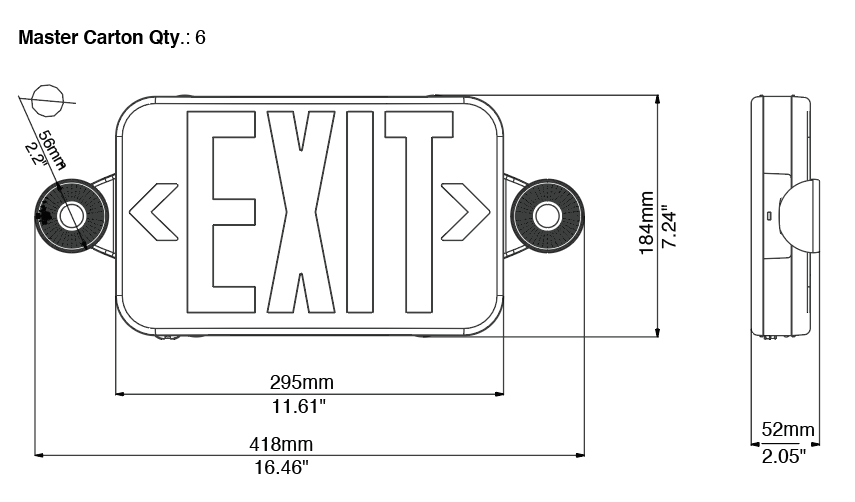

Field-selectable bi-color red/green letters, 6” high with 3/4” stroke; 100 ft. viewing distance per UL924.

Product comes standard with mounting plate for quick and easy installation. Suitable for wall mount or ceiling applications. Universal J-box mounting pattern.

Built-in 3.6V 2000mAh NiMH battery for minimum 90 minutes emergency operation. Maximum recharge time is 24 hours. Includes test switch and charge indicator.

5-year limited warranty. See warranty documentation for more information.

EMC-R-WH-RG ECO Spec Sheet
