EML ECO™ Series

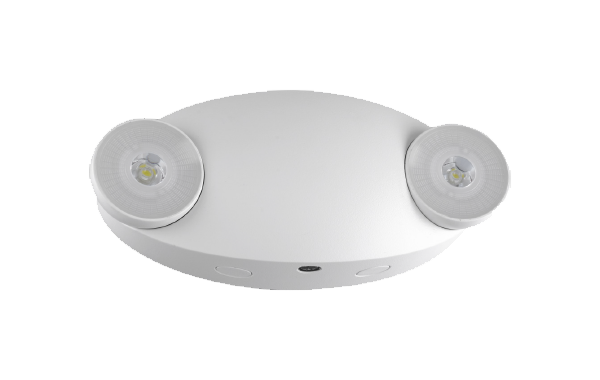

EM2L-R-WH ECO_main-image

EML ECO™ Series

Compact Contemporary Emergency Light - Dual Head (Round)

The Aleo EML™ Series Emergency Light – Dual Head (Round) delivers dependable emergency illumination with energy-efficient LED performance and a compact, low-profile design. Two ultra-bright LED lamp heads provide over 200 lumens of illumination, while the built-in nickel-cadmium battery delivers a minimum of 90 minutes of emergency operation. 120V/277V dual operation and included mounting plate allow for quick and easy installation.

Download Spec Sheet

APPLICATION

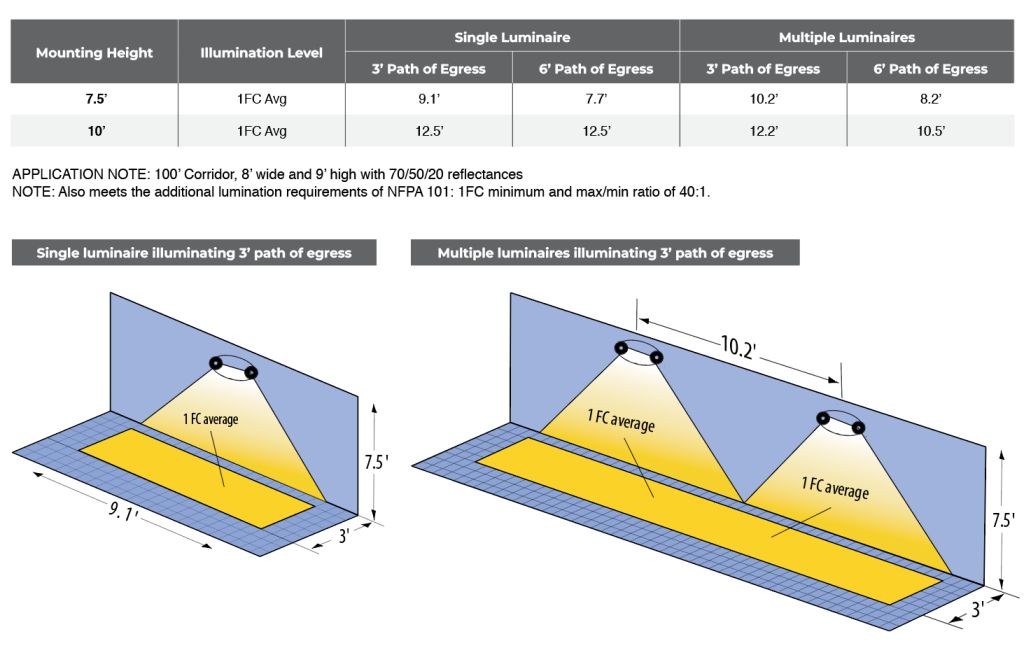

Path-of-egress illumination for code-required emergency lighting per NFPA 101 Life Safety Code. Suitable for corridors, stairwells, hallways, offices, schools, retail spaces, and healthcare facilities at lower mounting heights. Indoor damp-location listed only.

FEATURES AND BENEFITS

  • Durable Thermoplastic ABS Housing
  • UL 94V-0 Flame-Rated Construction
  • Dual LED Emergency Lamp Heads
  • Universal 120-277V Input Voltage
  • Quick and Easy Installation
  • Universal J-Box Mounting Pattern
  • 90-Minute Emergency Operation
  • 200+ Lumens Emergency Output
  • UL 924 Listed and Code Compliant
  • 5-Year Limited Warranty

Durable injection-molded thermoplastic ABS housing with UL 94V-0 flame rating.

Two (2) ultra bright round LED lamp heads for emergency mode.

UL Listed to UL924 Emergency Lighting and Power Equipment and CSA C22.2 No. 141 Unit Equipment for Emergency Lighting. Damp location listed. Meets NFPA 101 (current Life Safety Code), FCC Title 47, Part 15, Subpart B. RoHS compliant.

Product features 120V or 277V input for convenient installation. Emergency unit provided with test switch, status indicator and rechargeable battery.

Product comes standard with mounting plate for quick and easy installation. Suitable for wall mount applications. Universal J-box mounting pattern.

Built-in 3.6V 1000mAh NiCad battery provides a minimum of 90 minutes of emergency operation with over 200 lumens of illumination. Maximum recharge time is 24 hours. Includes test switch and charge indicator.

5-year limited warranty. See warranty documentation for more information.

EM2L-R-WH ECO Spec Sheet
