EML HO™ Series

EM2L-R-WH HO_main-image

EML HO™ Series

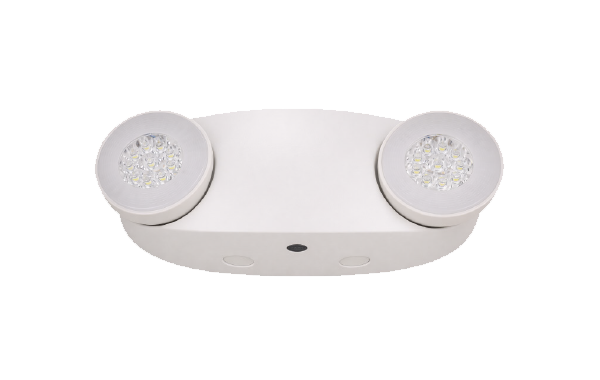

High Output Emergency Light - Dual Head (Round)

The Aleo EML™ Series Emergency Light – Dual Head (Round) delivers dependable emergency illumination with energy-efficient LED performance and a compact, low-profile design. Two (2) 10-piece LED lamp heads provide more than 1200 lumens of illumination in emergency mode, while the built-in 6V 4.5AH lead acid battery delivers a minimum of 90 minutes of emergency operation. Universal voltage (120-277V) and included mounting plate allow for quick and easy installation.

Download Spec Sheet

APPLICATION

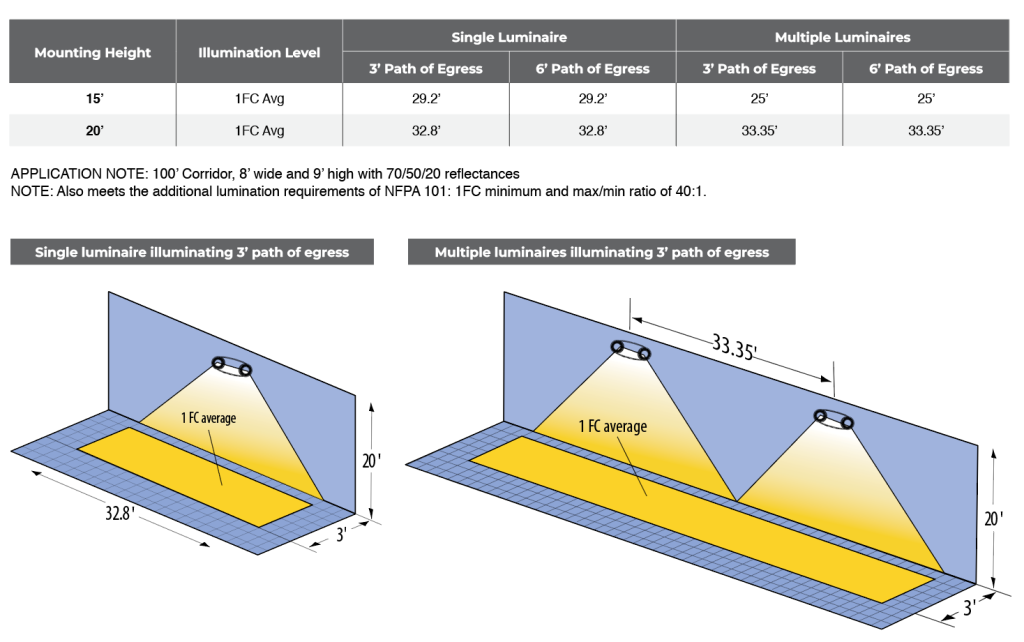

Suitable for corridors, stairwells, hallways, offices, schools, retail spaces, and healthcare facilities at lower mounting heights.

FEATURES AND BENEFITS

  • Durable Thermoplastic ABS Housing
  • UL 94V-0 Flame-Rated Construction
  • High-Output LED Lamp Heads
  • 1,200+ Lumens Emergency Output
  • Universal 120-277V Input Voltage
  • Quick and Easy Installation
  • Universal J-Box Mounting Pattern
  • 90-Minute Emergency Operation
  • UL 924 Listed and Code Compliant
  • 5-Year Limited Warranty

Durable injection-molded thermoplastic ABS housing with UL 94V-0 flame rating.

Two (2) 10-piece LED lamp heads provide more than 1200 lumens of illumination in emergency mode

UL Listed to UL924 Emergency Lighting and Power Equipment and CSA C22.2 No. 141 Unit Equipment for Emergency Lighting. Damp location listed. Meets NFPA 101 (current Life Safety Code), FCC Title 47, Part 15, Subpart B. RoHS compliant.

Product features universal voltage (120-277V) input for convenient installation. Emergency unit provided with test switch, status indicator and rechargeable battery.

Product comes standard with mounting plate for quick and easy installation. Suitable for wall mount applications. Universal J-box mounting pattern.

Built-in 6V 4.5AH lead acid battery provides a minimum of 90 minutes of emergency operation with over 1200 lumens of illumination. Maximum recharge time is 24 hours. Includes test switch and charge indicator.

5-year limited warranty. See warranty documentation for more information.

EM2L-R-WH HO Spec Sheet
