EMC SQ™ Series

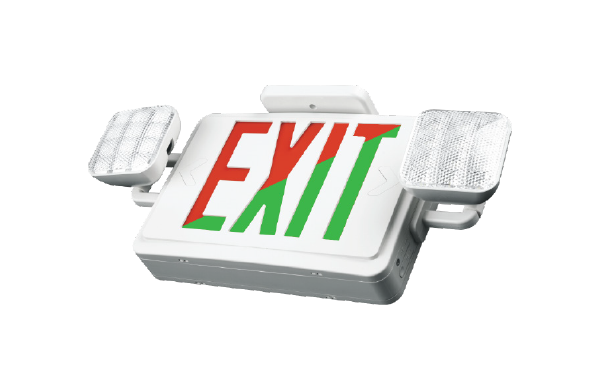

Emergency Combo Exit Sign, Dual Square Head

The Aleo EMC™ SQ Series Emergency Combo Exit Sign combines exit signage and emergency illumination in one durable, low-profile unit for commercial interiors. Field-selectable red or green LED letters let a single unit satisfy either code requirement, while two LED square lamp heads deliver path-of-egress illumination on loss of power. The flame-retardant, high-impact thermoplastic housing is indoor damp-location listed, and dual 120V/277V input with a universal J-box mounting pattern allows quick wall or ceiling installation. A built-in 3.6V 1200mAh NiMH battery provides a minimum of 90 minutes of emergency operation, with an integrated test switch and status indicator for simple compliance checks.

Download Spec Sheet

APPLICATION

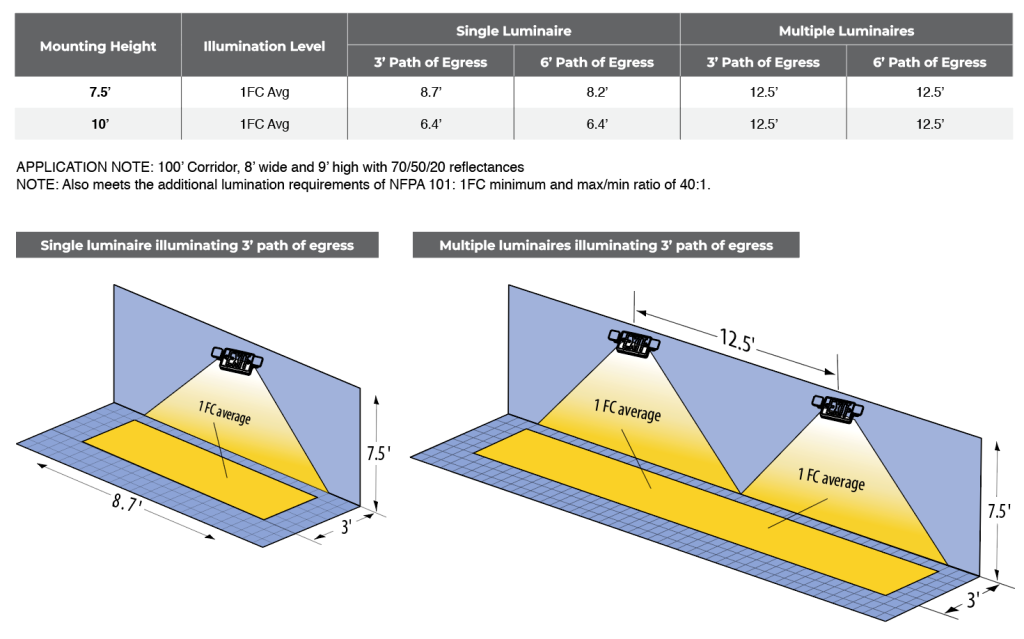

Code-required emergency egress lighting and exit identification per NFPA 101 Life Safety Code. Ideal for corridors, stairwells, hallways, offices, schools, retail spaces, and healthcare facilities — and optimized for lower mounting heights, where the wide-throw square lamp heads maximize path-of-egress coverage between fixtures.

FEATURES AND BENEFITS

  • Flame-Retardant Thermoplastic Housing
  • High-Impact Durable Construction
  • Ultra-Bright 2835 SMD LED Heads
  • Field-Selectable Red/Green Exit Display
  • 100 ft Viewing Distance Visibility
  • Universal 120-277V Input Voltage
  • Wall or Ceiling Mountable Design
  • Quick and Easy Installation
  • 90-Minute Emergency Operation
  • UL 924 Listed and Code Compliant
  • Indoor Damp Location Rated
  • 5-Year Limited Warranty

Injection molded, flame retardant, high impact, thermoplastic housing.

Two (2) 12pcs ultra bright 2835 SMD LED lamp heads for emergency mode.

UL Listed to UL924 Emergency Lighting and Power Equipment and CSA C22.2 No. 141 Unit Equipment for Emergency Lighting. Indoor damp location listed. Meets NFPA 101 (current Life Safety Code), FCC Title 47, Part 15, Subpart B. RoHS compliant.

Product features 120V or 277V input for convenient installation. Emergency unit provided with test switch, status indicator and rechargeable battery.

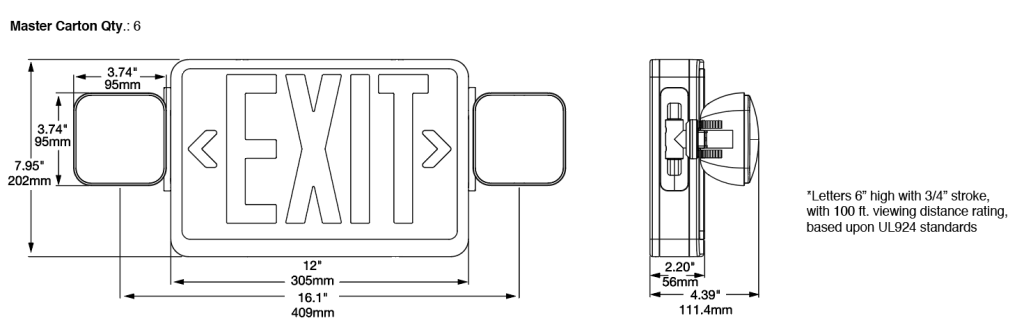

Field-selectable bi-color red/green letters, 6” high with 3/4” stroke; 100 ft. viewing distance per UL924.

Product comes standard with mounting plate for quick and easy installation. Suitable for wall mount or ceiling applications. Universal J-box mounting pattern.

Built-in 3.6V 1200mAh NiMH battery for minimum 90 minutes emergency operation. Maximum recharge time is 24 hours. Includes test switch and charge indicator.

5-year limited warranty. See warranty documentation for more information.
