EXS™ Series

EXS-WH-RG_main-image

EXS™ Series

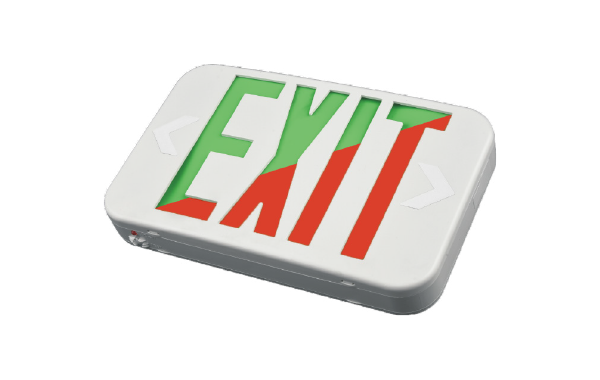

Bi-Color Edge-Lit Exit Sign

The Aleo EXL™ Series Bi-Color Edge-Lit Exit Sign combines a slim edge-lit appearance with durable construction for commercial egress applications. The injection-molded, flame-retardant, high-impact thermoplastic housing and high-grade acrylic panel provide a clean architectural look, while switchable super-bright red or green LEDs allow field selection of exit color. Universal 120-277VAC operation, included side and ceiling mounting plates, and a universal J-box mounting pattern support quick installation, while the removable front cover simplifies battery maintenance. A built-in 1.2V 1000mAh NiCad battery provides a minimum of 90 minutes of emergency operation and includes a test switch and LED status indicator.

Download Spec Sheet

APPLICATION

Office buildings, schools, healthcare facilities, retail stores, hospitality spaces, multifamily residential corridors, and other commercial indoor egress applications. Ideal for lobbies, hallways, stairwells, and architectural interiors where a low-profile, edge-lit exit sign enhances aesthetics while providing reliable emergency wayfinding.

FEATURES AND BENEFITS

  • UL 94V-0 Flame-Rated ABS Housing
  • High-Impact Thermoplastic Construction
  • Switchable Red/Green LED Display
  • Field-Selectable Exit Sign Letters
  • 100 ft Viewing Distance Visibility
  • Universal 120-277V Input Voltage
  • Ceiling, Wall, or End Mount Options
  • Quick and Easy Installation
  • 90-Minute Emergency Operation
  • UL 924 Listed and Code Compliant
  • Rechargeable NiCad Battery System
  • 5-Year Limited Warranty

Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating.

Switchable red or green long-life LED (6pcs. ea.)

UL Listed to UL924 Emergency Lighting and Power Equipment and CSA C22.2 No. 141 Unit Equipment for Emergency Lighting. Meets NFPA 101 (current Life Safety Code), FCC Title 47, Part 15, Subpart B.

120V-277VAC Universal input voltage operation. Emergency unit provided with test switch, charge indicator and rechargeable battery.

Field-selectable bi-color red/green letters, 6” high with 3/4” stroke; 100 ft. viewing distance per UL924.

Product comes standard with mounting plate for quick and easy installation. Suitable for ceiling, surface end or wall back mounting.

Built-in 1.2V 1000mAh NiCad battery for minimum 90 minutes emergency operation. Maximum recharge time is 24 hours. Includes test switch and LED indicator.

5-year limited warranty. See warranty documentation for more information.

EXS-WH-RG Spec Sheet
