EML WL™ Series

EM2L-WL-R-WH_main-image

EML WL™ Series

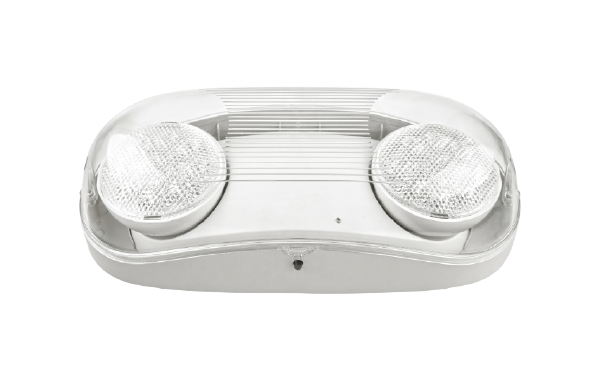

Wet Location Emergency Light - Dual Head (Round)

The Aleo EML™ Series Emergency Light – Dual Head (Round) delivers reliable emergency illumination with energy-efficient LED performance and a durable wet-location design. Two 12-piece 2835 LED lamp heads provide more than 400 lumens of emergency output, while the thermoplastic ABS housing and polycarbonate cover feature a UL 94V-0 flame rating. Dual 120V/277V input and included mounting plate support quick wall or ceiling installation. A built-in NiCad battery provides a minimum of 90 minutes of emergency operation. UL924 and CSA Listed for wet locations.

Download Spec Sheet

APPLICATION

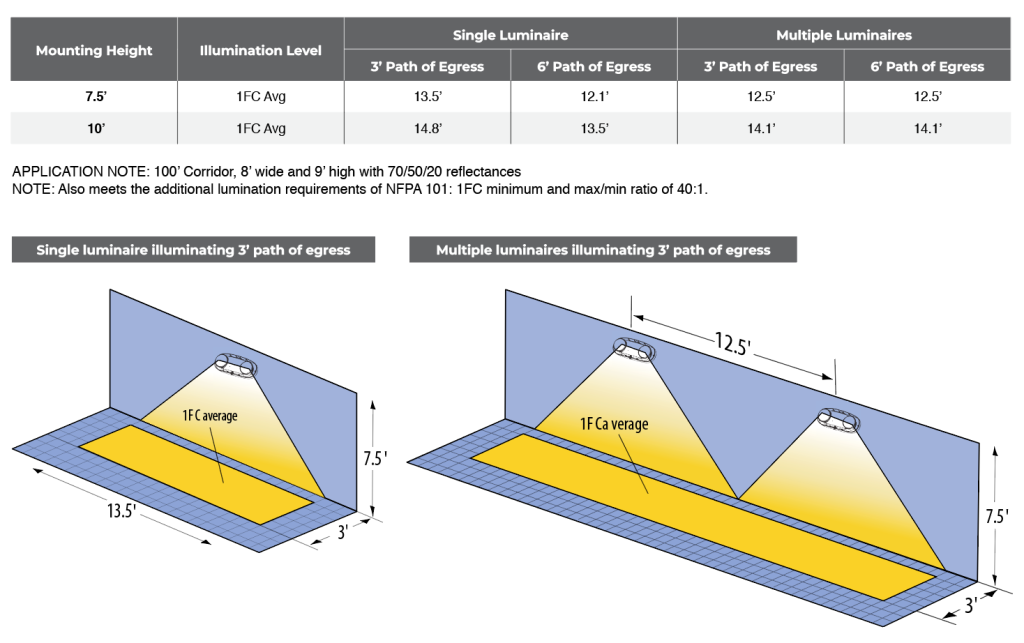

Path-of-egress illumination for code-required emergency lighting per NFPA 101 Life Safety Code. Suitable for parking garages, exterior walkways, covered loading areas, stairwells, warehouses, utility rooms, industrial facilities, and other wet location emergency egress applications. Ideal for indoor or outdoor wall and ceiling mount installations exposed to moisture or humidity.

FEATURES AND BENEFITS

  • Durable Thermoplastic ABS Housing
  • Polycarbonate Protective Cover
  • UL 94V-0 Flame-Rated Construction
  • High-Efficiency LED Lamp Heads
  • 400+ Lumens Emergency Output
  • Universal 120-277V Input Voltage
  • Wall or Ceiling Mountable Design
  • Quick and Easy Installation
  • 90-Minute Emergency Operation
  • Wet Location Rated
  • UL 924 Listed and Code Compliant
  • 5-Year Limited Warranty

Durable injection-molded thermoplastic ABS housing and polycarbonate cover with UL 94V-0 flame rating.

Two (2) 12pcs 2835 0.5W LED lamp heads for emergency mode provide more than 400Lm output.

UL Listed to UL924 Emergency Lighting and Power Equipment and CSA C22.2 No. 141 Unit Equipment for Emergency Lighting. Wet location listed. Meets NFPA 101 (current Life Safety Code), FCC Title 47, Part 15, Subpart B. RoHS compliant.

Product features 120V or 277V input for convenient installation. Emergency unit provided with test switch, status indicator and rechargeable battery.

Product comes standard with mounting plate for quick and easy installation. Suitable for wall mount or ceiling applications. Universal J-box mounting pattern.

Built-in 3.6V 2000mAh NiCad battery for minimum 90 minutes emergency operation. Maximum recharge time is 24 hours. Includes test switch and charge indicator.

5-year limited warranty. See warranty documentation for more information.

EM2L-WL-R-WH ECO Spec Sheet
