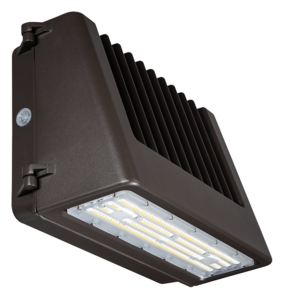

WPT Series

Full Cut Off LED Wall Pack

The Aleo WPT UX™ Series combines energy-efficiency, high performance, and rugged construction with a slim profile. Designed look to deliver enhanced performance to outdoor wall-mounted lighting applications. Rugged die-cast housing provides advanced thermal management for long life and weather-proof compartment to withstand challenging, outdoor environments.

APPLICATION

Outdoor wall-mount applications. Building facade. Retail, commercial, Industrial exteriors, school campuses.

FEATURES AND BENEFITS

  • Attractive ROI
  • Super Slim Profile
  • Comes with built-in photocells
  • Long life, reduced maintenance
  • Lower energy costs
  • Low wattage for deep energy Savings
  • 7-year limited warranty

Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Weather-proof, gasketed compartment protects electronics against environmental elements. Dark Bronze finish.

IP65 Wet Location Rated.

High performance LED platforms delivers high efficiency and long life. Frosted prismatic glass lens designed for superior light distribution and uniformity. Type III comes standard.

UL Listed. All components have safety certification. DLC QPL Premium

7-year Limited Warranty. See warranty documentation for more information.

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features universal voltage (120-277V) for convenient installation. 0-10V continuous dimming.

Designed to be wall-mounted. Luminaire to be mounted directly over standard 4” junction box (supplied by others) or surface mount and wiring connection through convenient 1/2” threaded conduit entry hub on wall pack sides.

Comes Standard with built-in dusk-to-dawn photocell.

Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (4) different wattages and (3) different CCTs via switch inside the housing.

Model No. Nom. Wattage 3000K Lumens 4000K Lumens 5000K Lumens
WPT-80UX/CT 32

4320

4864

4704

48

6192

6960

6912

64

7749

8757

8694

80

10125

11907

10530
