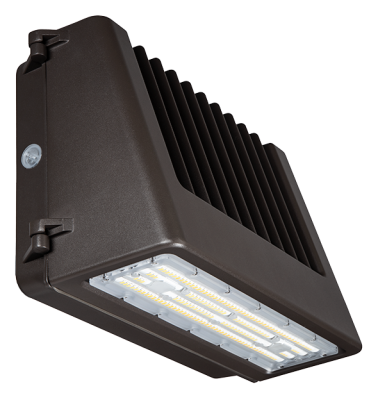

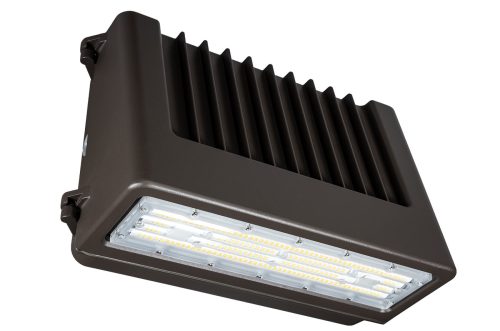

Wall Pack
CCT and Lumen Select | Integrated Photocell
CCT and Lumen Select
Offers extreme versatility with field-adjustable color temperature and lumen output
Integrated Photocell
Built-in Photocell comes standard for dusk to dawn operation. No need for auxiliary photocells or timers.
Advanced Full Cut Off Optics
Dark Sky Compliant, advanced forward throw optics delivers and distributes light efficiently without wasted light pollution.
Energy Savings
Energy Savings
LUMEN PACKAGES
| MODEL NO. | NOM. WATTAGE | 3000K LUMENS | 4000K LUMENS | 5000K LUMENS |
|---|---|---|---|---|
|
WPT-80UX/CT |
32 |
4320 |
4864 |
4704 |
|
48 |
6192 |
6960 |
6912 |
|
|
64 |
7749 |
8757 |
8694 |
|
|
80 |
10125 |
11907 |
10530 |
Specification Features

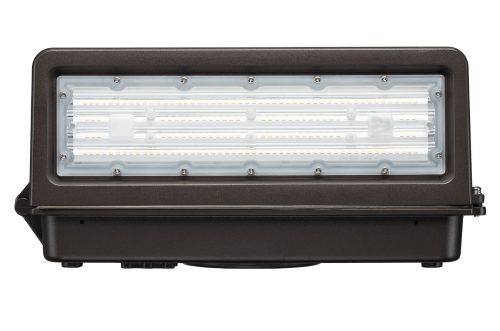

Advanced Optics
Precision formed optical diffuser optimizes light distribution for enhanced safety and efficiency in outdoor spaces.
Integral Photocell
Integrated dusk to dawn photocells guarantees energy savings and offers contractor-friendly convenience.

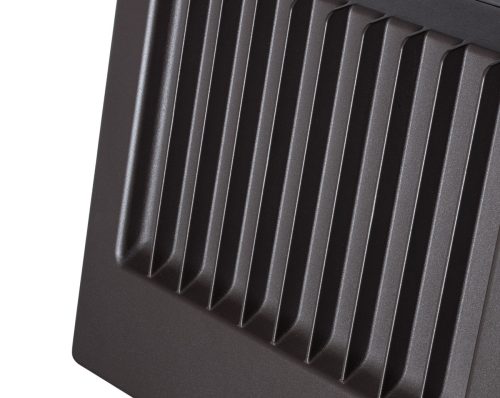

Rugged Construction
Durable enclosure withstands challenging environments and delivers performance for the long haul.
Low-Profile Design
Slim form factor for easy shipping, handling, storage, and installation. Enhances aesthetics of parking garages.
CCT Select
Increased versatility and reduced inventory burden. Color temperature can be adjusted in the field. Always have the right CCT for any job.
Wet Location Rated
Gasketed housing protects electronics against environmental elements.
