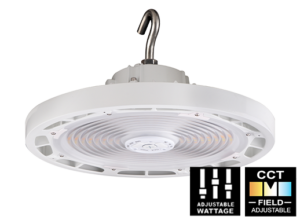

UXB UX Series
Circular LED High Bay - CCT Select
The Aleo UXB™ Series, Circular High Bay, combines efficiency, robust construction, and utility to deliver a competitive and high-performance high bay solution for single-point mounting applications. The wet location / IP-rated luminaire provides a versatile solution for high mounting facilities. Delivering high output, quality light and low energy consumption, the UXB improves warehouse safety and productivity, lowers maintenance cost, and reduces operating costs
APPLICATION
Provides high output illumination for various commercial industrial applications with high ceilings: warehouse, manufacturing, gymnasiums, cold-storage.
FEATURES AND BENEFITS
- Attractive ROI
- Low Profile, Slim Design
- Rugged construction and design
- Long life, reduced maintenance
- Lower energy costs
- High quality light
- 7-year limited warranty
Construction
Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Integrated, enclosed water-proof driver protects against environmental elements. IP66, Wet Location Rated. White Finish.
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) and High Voltage (277-480V) for convenient installation. Comes equipped standard with 6’ white SO cord.
Optical System
Glass lens provides protection and high efficiency transmission of light. Clear PC or Aluminum dome reflector accessories available (sold separately) for reduced glare and controlled optics.
Installation & Mounting
Single-point hook mount (hook with screw included).
Certifications
UL Listed. All components have UL certification. DLC QPL Premium
Controls & Dimming
Continuous dimming (1-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy-savings and code compliance.
Warranty
7-year Limited Warranty. See warranty documentation for more information.
Field-Adjustable CCT / Wattage
Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (3) different wattages and (2) different CCTs via switch inside the housing.

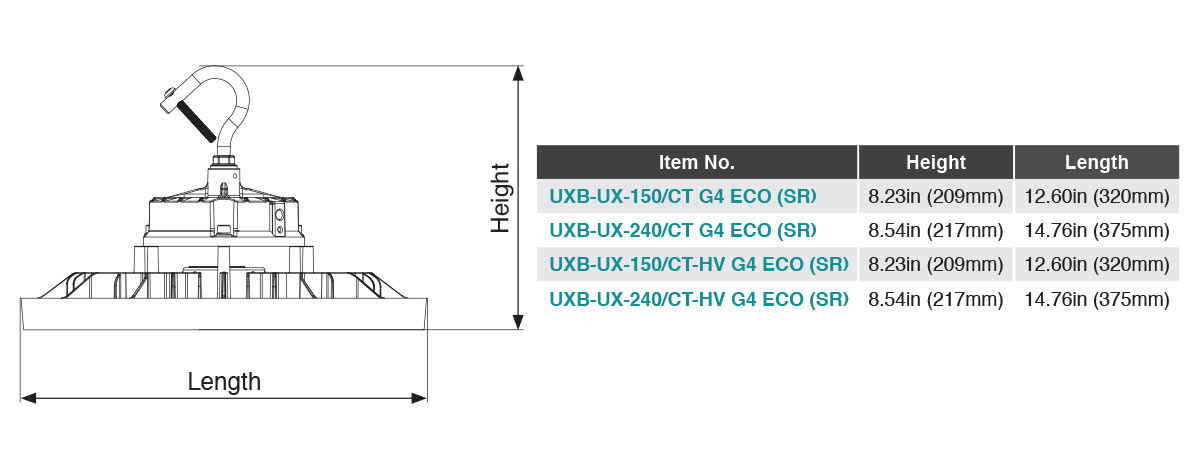

Line Drawing
Specification Sheet
Installation Guide
IES Files
| Model No. | Nom. Wattage | 4000K Lumens | 5000K Lumens |
|---|---|---|---|
|
UXB-UX-150/CT G4 ECO (SR) |
150 |
23,047.8 |
22,170.5 |
|
UXB-UX-240/CT G4 ECO (SR) |
240 |
34,420.7 |
33,291.7 |
|
UXB-UX-150/CT-HV G4 ECO (SR) |
150 |
22,259.9 |
21,573.0 |
|
UXB-UX-240/CT-HV G4 ECO (SR) |
240 |
34,751.4 |
33,575.4 |
