SLA Series
Dusk to Dawn Security Area Light - Field Adjustable
The Aleo SLA™ Series delivers high performance, energy savings illumination to a familiar form factor. Perfect for upgrading mercury vapor and HPS security/barn luminaires. Durable, versatile, and efficient. Field selectable CCT and lumen packages provides added flexibility.
APPLICATION
Streets, alleyways, farms, doorways, pathways, yards.
FEATURES AND BENEFITS
- Attractive ROI
- Low Profile, Slim Design
- Rugged construction and design
- Long life, reduced maintenance
- Lower energy costs
- High quality light
- 7-year limited warranty
Construction
Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Weather-proof, gasketed driver compartment protects electronics against environmental elements.
Electrical
Field Selectable lumen output and color temp. Universal voltage:120V-277V input.
Installation & Mounting
Photocell
Comes Standard with built-in dusk-to-dawn photocell.
Field-Adjustable CCT / Wattage
Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (3) different wattages and (3) different CCTs via switch inside the housing.
Optical System
Precision-formed optical lens system reduces glare and improves safety and security by delivering high-efficiency illumination with precise optical distribution. Type V distribution comes standard.
Certifications
UL Listed. All components have UL certification. DLC QPL Premium.
Warranty
7-year Limited Warranty. See warranty documentation for more information.

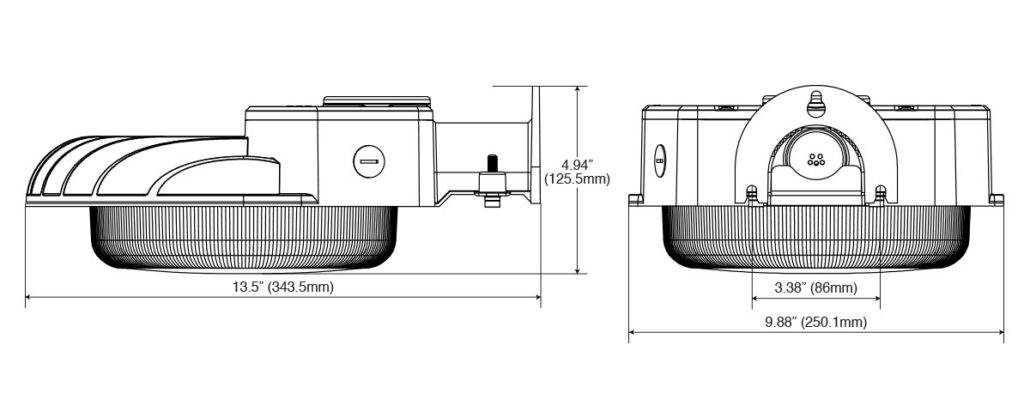

Line Drawing
Specification Sheet
Installation Guide
IES Files
| Model No. | Nom. Wattage | 3500K Lumens | 4000K Lumens | 5000K Lumens |
|---|---|---|---|---|
|
SLA-60UX/CT |
30 | 4,359 | 4,986 | 4,740 |
| 40 | 5,756 | 6,584 | 6,256 | |
| 60 | 8,550 | 9,780 | 9,294 |
