FL Series
Mini Flood Light
The FL Series combines energy-efficiency, advanced optical control, and modern slim profile aesthetics to deliver enhanced performance to general outdoor lighting applications. Rugged diecast housing provides advanced thermal management for long life and weather-proof compartment to withstand outdoor environments. Comes standard with rotatable knuckle-mount arm for versatility and convenience.
APPLICATION
Excellent for general outdoor lighting applications needing low wattage LED and slim profile form factor. Common applications: multi-family common area, walkways, doorways, retail shopping centers, recreational spaces.
FEATURES AND BENEFITS
- Attractive ROI
- Rugged construction and design
- Long life, reduced maintenance
- Lower energy costs
- High quality light
- 7-year limited warranty
Construction
Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Weather-proof, gasketed driver compartment protects electronics against environmental elements. Small form factor and slim-profile make for versatility. IP65 Rated.
Electrical
Luminaire utilizes high-efficiency LED arrays maintained at cool temperatures for long life and reliability. 120V-277V input. Flicker-free. Non-dimming.
Installation & Mounting
Flood light comes standard with knuckle-mount arm that is rotatable. 1/2 trade size threaded chase nipple on arm mounts to electrical boxes. Available mounting accessories: yoke and trunion mount (not available for 15W).
Controls & Dimming
Non-dimming.
Optical System
Precision-formed optical lens system improves safety and security by delivering high-efficiency illumination. NEMA 7X7 beam spread.
Certifications
UL Listed. Wet Location. DLC Premium.
Warranty
7-year Limited Warranty. See warranty documentation for more information.

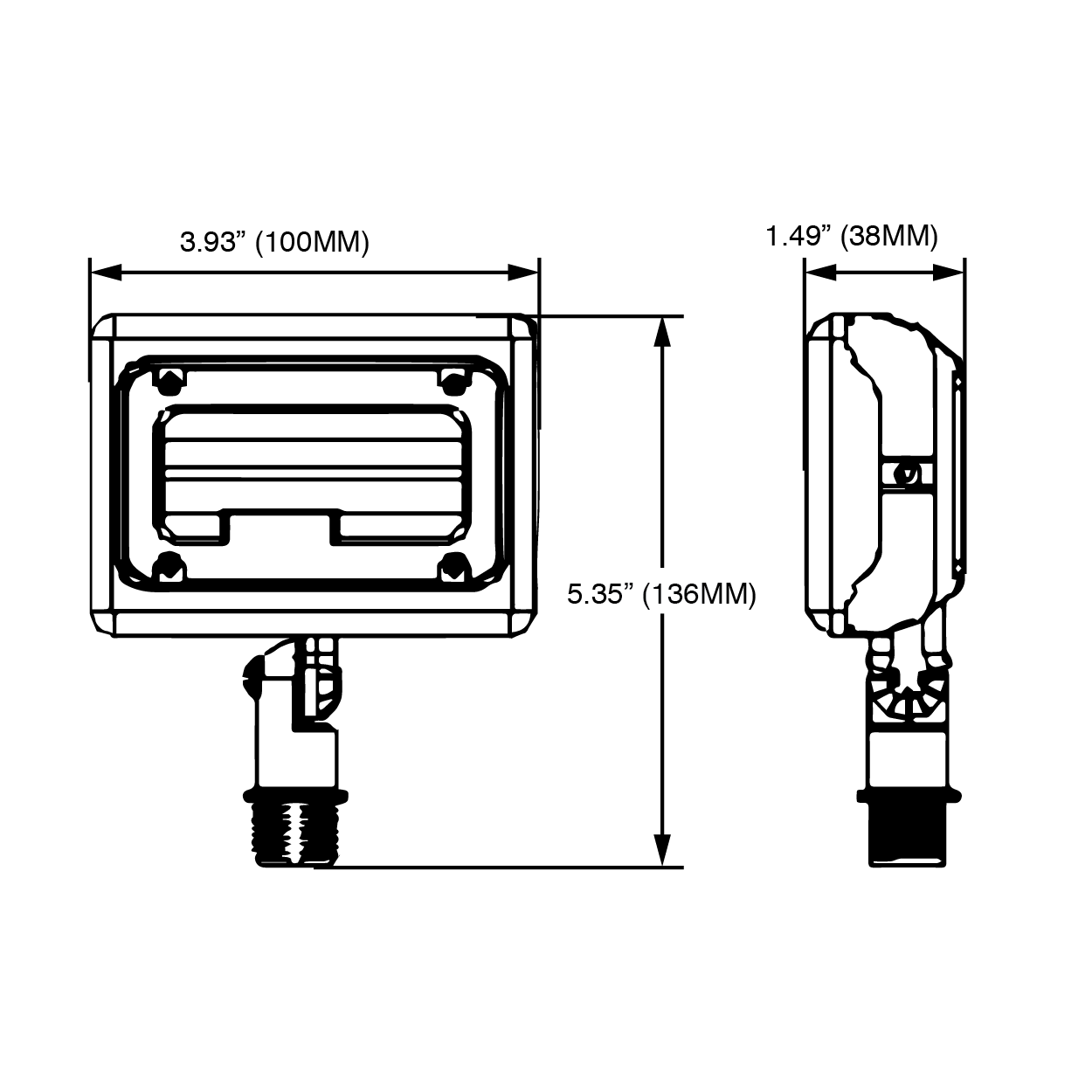

FL-15 Line Drawing

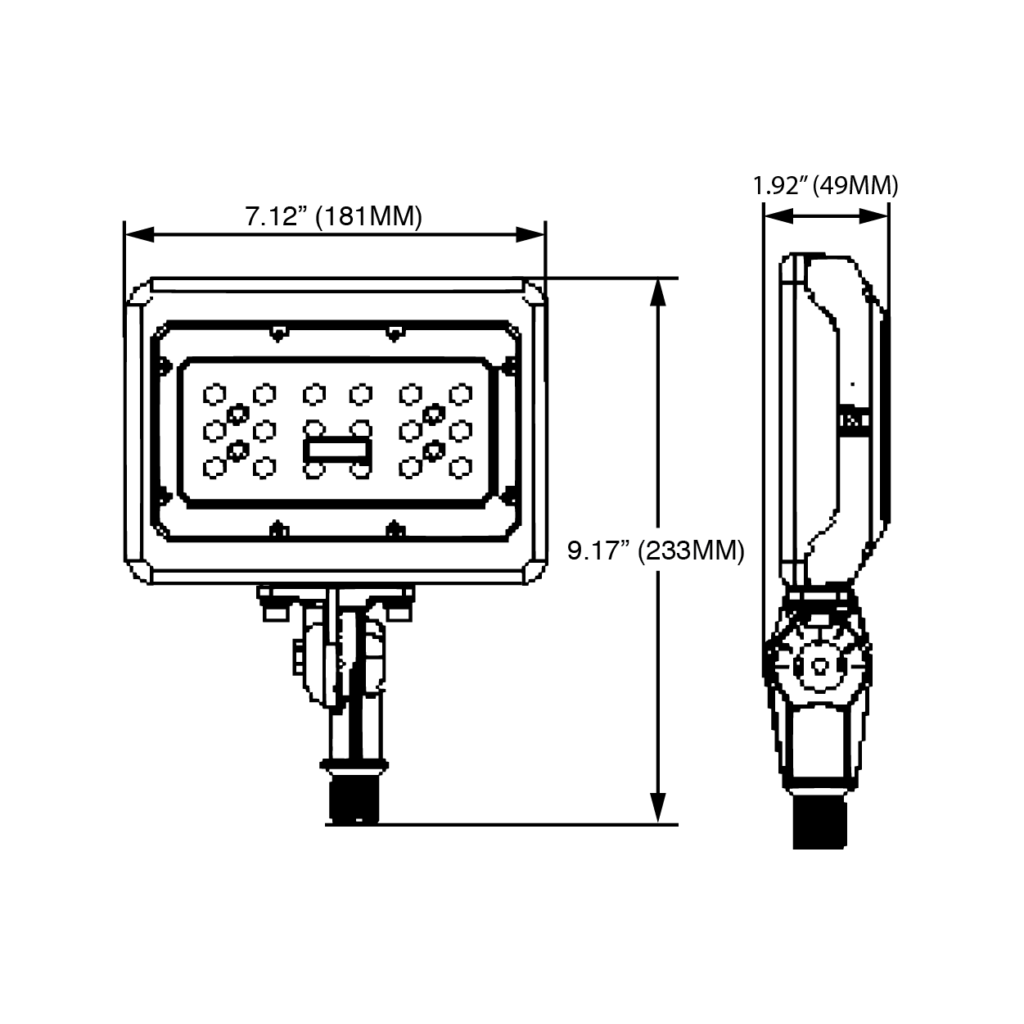

FL-30 Line Drawing

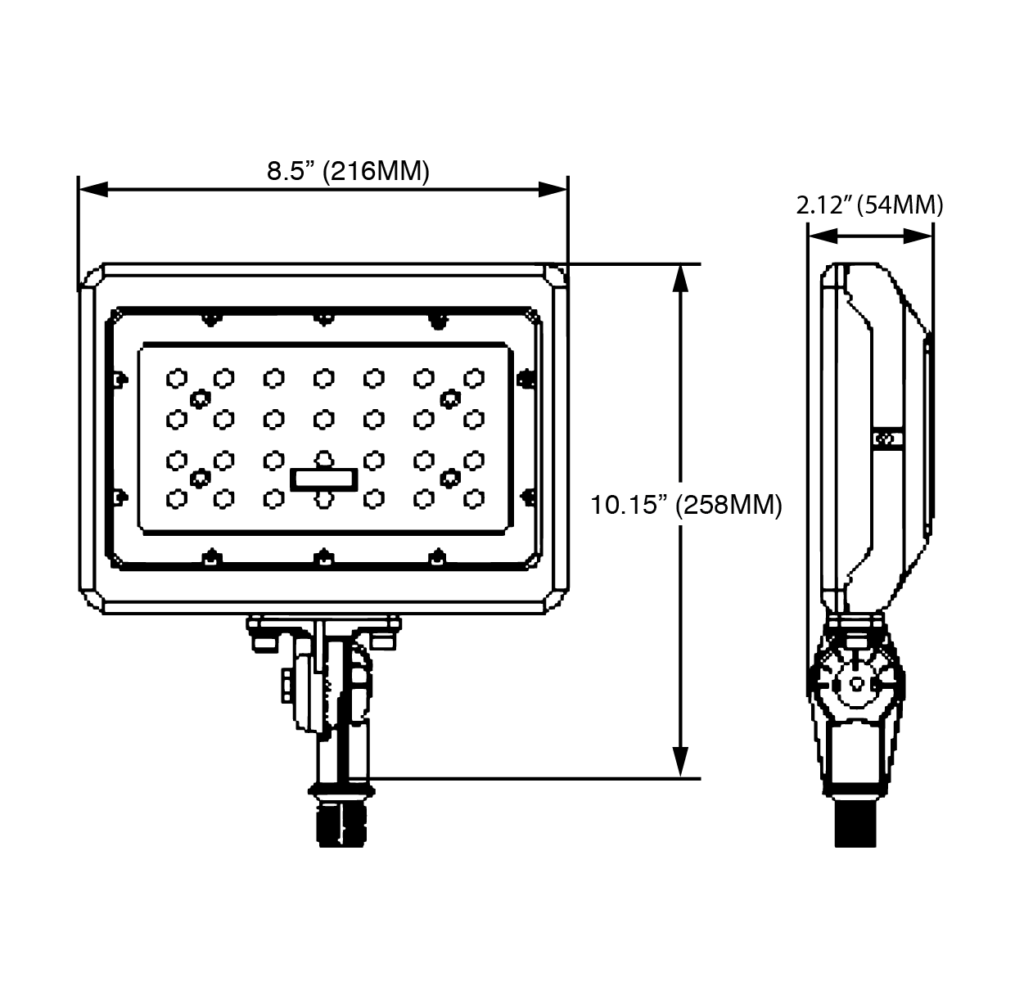

FL-50 Line Drawing
| Model No. | Wattage (nom.) | Lumens |
|---|---|---|
| FL-15/50K | 15W | 1624.3 |
| FL-30K/50K | 30W | 3432 |
| FL-50/50K | 50W | 5793 |
| Model No. | Description |
|---|---|
| -KNM | Knuckle Mount (comes standard) |
| -AUB | Trunnion Mount (FL-30, FL-50 Only) Sold Separately |
| -YOK | Yoke Mount (FL-30, FL-50 Only) Sold Separately |
