LT-CD BTEZ Series
Volumetric LED Troffer - SimplBlue Bluetooth Mesh Sensor
The Aleo LT-CD™ BTEZ Series LED Field Adjustable Troffer delivers industry-leading Versatility with deep energy savings and continuous dimming. The precision-formed diffuser produces comfortable and pleasant illumination, enhancing productive spaces in various applications.
Now Quick Ship items equipped with our SimplBlue Wireless Bluetooth Mesh System (NLC) occupancy sensor with daylight (LLLC).
Provides architectural aesthetics for retail, schools, offices, healthcare, and other various commercial applications.
FEATURES AND BENEFITS
- SimplBlue Wireless Bluetooth Mesh Networked Lighting Control System (NLC)
- DLC NLC5
- Luminaire Level Lighting Control (LLLC) for maximum energy savings, versatility, and rebate incentive optimization
- Reduces Inventory and Increases Flexibility
- Field Adjustable CCT and Lumen Output
- 7-year Limited warranty
- UL and DLC Premium
Simple construction with minimal parts allows for easy handling and installation. Low profile design optimizes shipping, storage, and handling. Luminaire features matte white durable finish. Integral T-Bar clips built into luminaire. Diffuser requires no additional frame or fastener for easy installation.
Reflector systems features highly reflective coating and delivers balanced, comfortable illuminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.
UL Listed. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2.
7-year Limited Warranty. See warranty documentation for more information.
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped with luminaire quick-disconnect.
Field-Adjustable CCT / Wattage
Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by using SimplBlue app to set CCT / lumen level.
Installation & Mounting
Installs in most standard T-Bar ceiling grid systems. Flange kit available for hard-lid/drywall applications.
Controls & Dimming
Comes with built-in wireless Bluetooth Mesh occupancy sensing with daylight harvesting. Utilizes SimplBlue app for commissioning manual control. Continuous dimming (0-10V) comes standard. Integrated with daylight harvesting PIR sensor to achieve deeper energy-savings and code compliance.
|Form Factor||Model No.||Nom. Wattage||3000K Lumens||3500K Lumens||4000K Lumens||5000K Lumens|

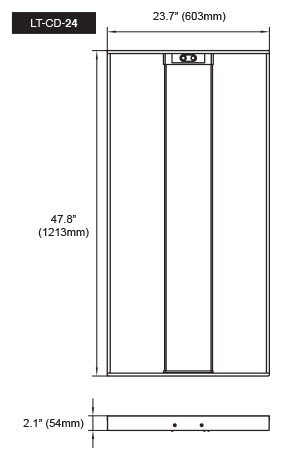

|2’x4′||LT-CD-24-UXL-45/8CT G5 ECO/OSDL/BTEZ||45||5895||6030||6030||5940|

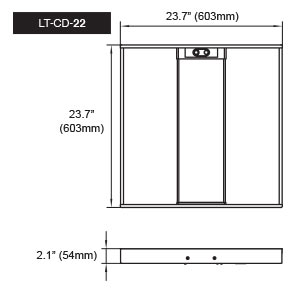

|2’x2′||LT-CD-22-UXL-35/8CT G5 ECO/OSDL/BTEZ||35||4375||4515||4550||4410|
