LPS-BL BTEZ With SimplBlue

Slim LED Panel Back-Lit - SimplBlue Bluetooth Mesh Sensor

The Aleo LPS-BL™ BTEZ Series LED Field Adjustable Panel delivers industry-leading performance with deep energy savings and continuous dimming. The slim profile, modern design produces pleasant, uniform and low-glare illumination, enhancing spaces in various applications.

Now Quick Ship items equipped with our SimplBlue Wireless Bluetooth Mesh System (NLC) occupancy sensor with daylight (LLLC).

APPLICATION

Retail, schools, offices, healthcare, and other various commercial applications.

FEATURES AND BENEFITS

SimplBlue Wireless Bluetooth Mesh Networked Lighting Control System (NLC)
DLC NLC5
Luminaire Level Lighting Control (LLLC) for maximum energy savings, versatility, and rebate incentive optimization
Attractive ROI
Field Adjustable CCT and Wattage
Slim profile for easy transportation and installation
Lower energy costs
High lumen output
7-year limited warranty

Construction

Solid rigid frame, post-painted matte white finish for strength and durability. Low profile design optimizes shipping, storage, and handling. Integral T-Bar clips built into luminaire. Integrated parts and diffuser for easy installation and handling.

Electrical

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation.

Installation & Mounting

Installs in most standard T-Bar ceiling grid systems. Compatible with standard 15/16” and 9/16” T-bar grid ceilings.

Controls & Dimming

Comes with built-in wireless Bluetooth Mesh occupancy sensing with daylight harvesting. Utilizes SimplBlue app for commissioning manual control. Continuous dimming (0-10V) comes standard. Integrated with daylight harvesting PIR sensor to achieve deeper energy-savings and code compliance.

Field-Adjustable CCT / Wattage

Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by using SimplBlue app to set CCT / lumen level.

Optical System

Back-lit optics produces soft balanced, comfortable luminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.

Certifications

UL Listed. All components have UL certification.

Warranty

7-year Limited Warranty. See warranty documentation for more information.

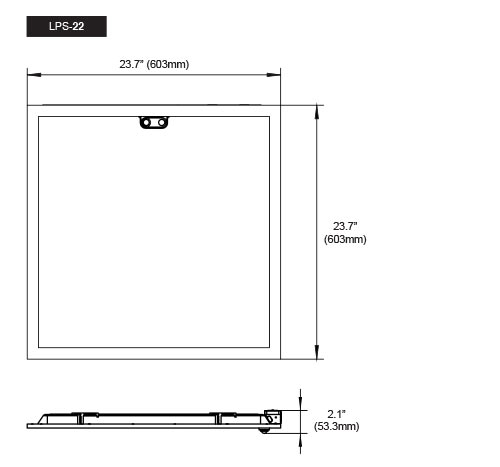

LPS-BL-22 Line Drawing
