LTR (SR/RC) Series
LED Troffer Retrofit Kit - Sensor Ready
The Aleo LTR™ (SR/RC) Series Troffer Retrofit Kit delivers industry-leading Versatility with deep energy savings and continuous dimming. Easy and quick installation reduces labor cost and optimizes ROI. The retrofit kit eliminates the need to replace existing luminaire housing, which reduces install time and disposal/removal costs. The precision-formed diffuser produces comfortable and pleasant illumination, enhancing productive spaces in various applications.
Sensory Ready quick connect port enables plug and play field installation of AleoBlue Wireless Bluetooth Mesh Networked Lighting Control (NLC) occupancy sensors with daylight (LLLC).
Provides architectural aesthetics for retail, schools, offices, healthcare, and other various commercial applications.
FEATURES AND BENEFITS
- Reduces Inventory and Increases Flexibility
- Field Adjustable CCT
- AleoBlue – Wireless Bluetooth Mesh Networked Lighting Controls (NLC)
- Sensor Ready with Quick Connect Port
- Field Install Plug and Play Sensor
- Luminaire-level Lighting Controls (LLLC)
Simple construction with minimal parts allows for easy handling and installation. Luminaire features matte white durable finish.
Reflector systems features highly reflective coating and delivers balanced, comfortable luminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.
UL Classified. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2.
Controls & Dimming
Continuous dimming (0-10V) comes standard. Luminaire is sensor-ready with quick-connection port to accept AleoBlue luminaire-level lighting control (LLLC) sensor. Easily upgrade to an AleoBlue Networked Lighting Controls (NLC) system with field installable, plug and play sensors and control nodes. AleoBlue offers advanced lighting controls, easy code compliance, and intuitive commissioning.
7-year Limited Warranty. See warranty documentation for more information.
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped with luminaire quick-disconnect.
Increased versatility and reduced inventory burden. Color Temp. can be adjusted in the field by selecting (3) different CCTs via switch on driver box.
Installation & Mounting
Installs in most troffer luminaires. Retrofit kit fits within troffer and ceiling T-bar grid, eliminating need to remove existing fixture housing.
|Form Factor||Model No.||Nom. Wattage||3500K Lumens||4000K Lumens||5000K Lumens|

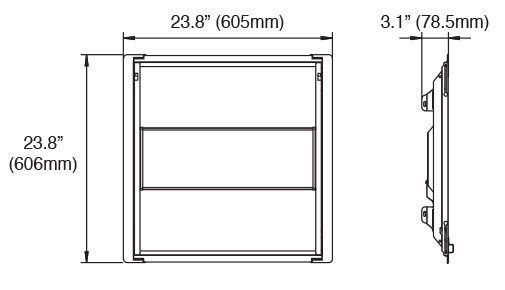

LTR-22-UXL/8CT G5 ECO-HD (SR/RC) (XX)

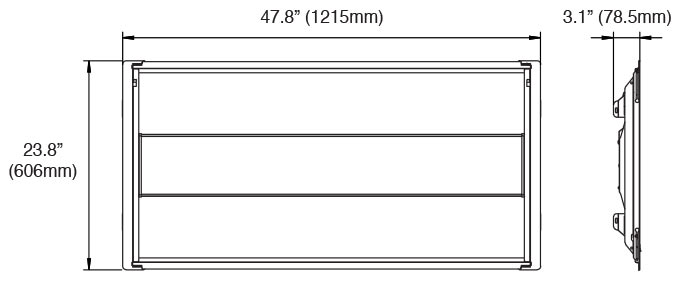

LTR-24-UXL/8CT G5 ECO-HD (SR/RC) (XX)
|-EM700||Emergency battery backup, 700 lm|
|-EM1400||Emergency battery backup, 1400 lm|
