LTR BTEZ With SimplBlue

LED Troffer Retrofit Kit - SimplBlue Bluetooth Mesh Sensor

The Aleo LTR™ BTEZ Series Troffer Retrofit Kit delivers industry-leading Versatility with deep energy savings and continuous dimming. Easy and quick installation reduces labor cost and optimizes ROI. The retrofit kit eliminates the need to replace existing luminaire housing, which reduces install time and disposal/removal costs. The precision-formed diffuser produces comfortable and pleasant illumination, enhancing productive spaces in various applications.

Now Quick Ship items equipped with our SimplBlue Wireless Bluetooth Mesh System (NLC) occupancy sensor with daylight (LLLC).

APPLICATION

Provides architectural aesthetics for retail, schools, offices, healthcare, and other various commercial applications.

FEATURES AND BENEFITS

SimplBlue Wireless Bluetooth Mesh Networked Lighting Control System (NLC)
DLC NLC5
Luminaire Level Lighting Control (LLLC) for maximum energy savings, versatility, and rebate incentive optimization
Reduces Inventory and Increases Flexibility
Field Adjustable CCT
7-year Limited warranty
UL and DLC Premium

Construction

Simple construction with minimal parts allows for easy handling and installation. Luminaire features matte white durable finish.

Optical System

Reflector systems features highly reflective coating and delivers balanced, comfortable luminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.

Certifications

UL Classified. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2.

Warranty

7-year Limited Warranty. See warranty documentation for more information.

Electrical

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped with luminaire quick-disconnect.

Field-Adjustable CCT

Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by using SimplBlue app to set CCT / lumen level.

Installation & Mounting

Installs in most troffer luminaires. Retrofit kit fits within troffer and ceiling T-bar grid, eliminating need to remove existing fixture housing.

Controls & Dimming

Comes with built-in wireless Bluetooth Mesh occupancy sensing with daylight harvesting. Utilizes SimplBlue app for commissioning manual control. Continuous dimming (0-10V) comes standard. Integrated with daylight harvesting PIR sensor to achieve deeper energy-savings and code compliance.

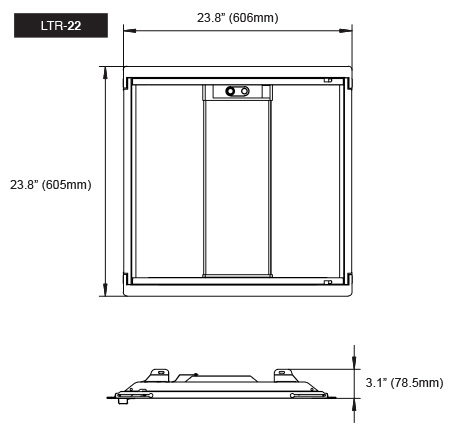

2X2 Line Drawing
