CM-DC-OS/BT
AleoBlue Wireless DC Powered Ceiling-Mount Occ. Sensor
The CM-DC-OS/BT uses digital PIR Motion Detector Architecture and Quad Element passive infrared (PIR) technology for improved detection coverage for ceiling mount applications. The sensor is suitable for a variety of indoor applications. It supports ceiling mounts up to 12ft high. Both sensor and power pack are rated for use in temperatures ranging from – 30° to 70°C and relative humidity from 90 to 95% at
30°C. High Vin-2.5V 100mA source. Low 100mA sink current.
APPLICATION
Indoor: retail, education, hospitality, corporate, warehouse, self storage.
FEATURES AND BENEFITS
- PIR sensor
- Bluetooth SIG mesh
- LED Motion indicator
- Mounting height up to 12ft (3.6m)
- 360° coverage pattern
- Sensor can pair with iOS application to allow setup and sensor adjustments, including time time delay and more
Warning
- DO NOT install with power applied to device
- DO NOT expose the device to moisture
Operation
- Check the “aleoBlue Commissioning User Manual” for settings and commissioning.
Certifications
UL Listed. All components have UL certification.
Warranty
5-year Limited Warranty. See warranty documentation for more information.

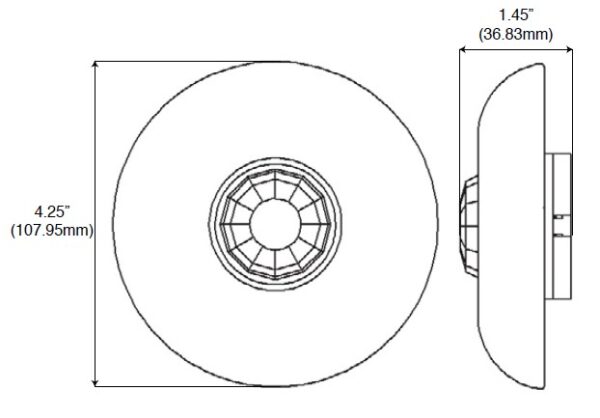

CM-DC-OS/BT Dimensions

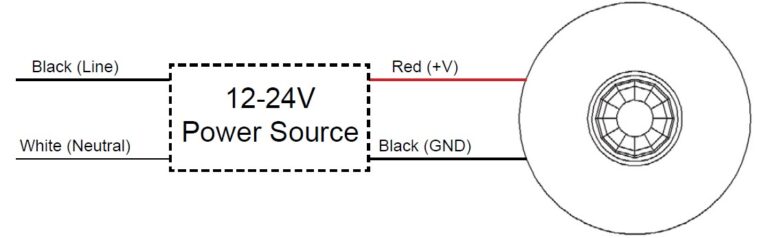

CM-DC-OS/BT Wiring Diagram
Specification Sheet
