RKLS Series
Linear Magnetic Module Retrofit Kit
The Aleo RKLS Series Magnetic Module Retrofit Kit is the ultimate retrofit kit for energy-savings in myriad of commercial applications. The RKLS offers extreme versatility and flexibility with the ability to be fit inside various existing linear luminaires. The magnetic design allows for easy and convenient installation. Removable lens allows for increased light output and efficacy for fixtures with existing lens. Easy replacement and maintenance with external 2-channel driver.
APPLICATION
Retrofit of commercial, retail, education, hospitality, corporate. Ideal upgrade for prismatic troffers, parabolic troffers, strips/channels, wraparounds, vapor tights.
FEATURES AND BENEFITS
- Quick and Easy Installation
- Visually pleasing, architectural design
- Continuous dimming for further demand reduction
- Compatible with advanced sensor/control integration
- Long life, reduced maintenance
- 7-year limited warranty
- UL and DLC Listed
Construction
Precision extruded aluminum heat sink with integral LED and magnetic mounting. Seamless design with frosted end caps and lens diffuser.
Electrical
External 2-channel LED Driver for easy driver and module replacement. Universal voltage: 120V-277V input. 0-10V dimming.
Installation & Mounting
Quick and easy installation. Modules are magnetic for fast mounting and alignment. Comes with self-tapping tek screws. LED driver matches standard ballast mounting pattern.
Controls & Dimming
Continuous dimming (0-10V) comes standard. Can be used with dimmer and sensor control.
Retrofit Contents
(1) LED Driver, (2) Magnetic Modules, (2) Lenses, Tek Screws, Quick Disconnect, Retrofit Label.
Optical System
Lens (optional) delivers balanced, comfortable illuminance. Optimal glare control. For higher efficacy and lumen output, lens is removable.
Certifications
ETL Listed. DLC Premium QPL.
Driver: Meets FCC Part 15 Class A Limit for EMI
Warranty
7-year Limited Warranty. See warranty documentation for more information.

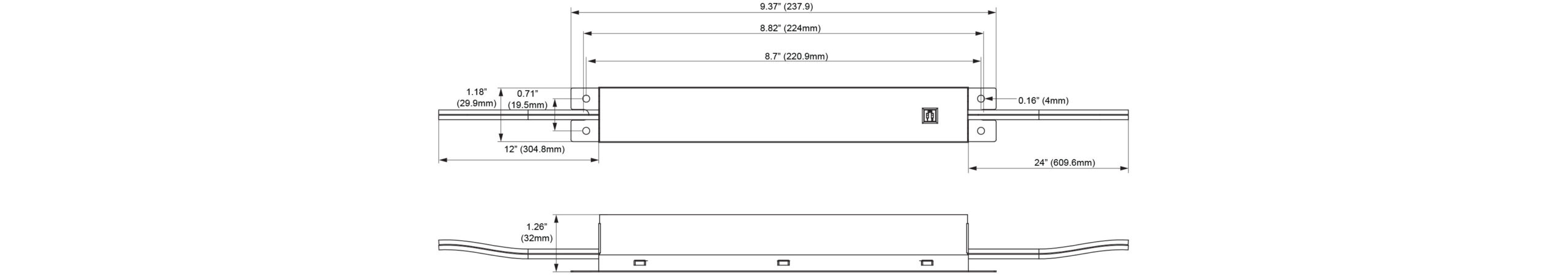

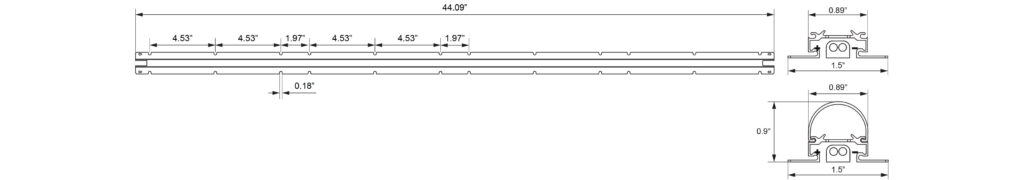

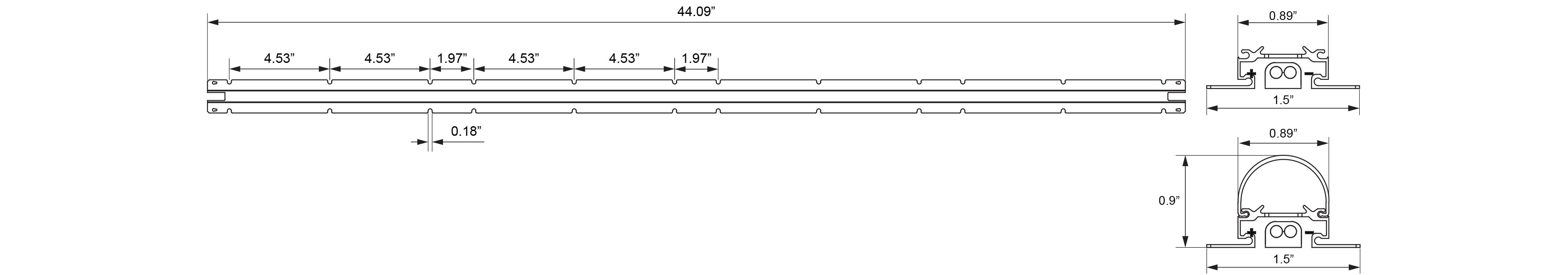

RKLS Line Drawing
Specification Sheet
Installation Guide
IES Files
| Form Factor | Model No. | Application | Nom. Wattage | 3500K Lumens | 4000K Lumens | 5000K Lumens |
|---|---|---|---|---|---|---|
| 4′ | RKLS-2-44UXL/8xx XE (3200L) | Linear | 24 | 3404 | 3427 | 3450 |
| RKLS-2-44UXL/8xx XE (4000L) | 30 | 4116 | 4144 | 4172 | ||
| RKLS-2-44UXL/8xx XE (4700L) | 36 | 4930 | 4964 | 4998 | ||
| RKLS-2-44UXL/8xx XE (5400L) | 42 | 5577 | 5616 | 5655 | ||
| 2′ | RKLS-2-22UXL/8xx XE (3200L) | Linear | 24 | 3404 | 3427 | 3473 |
| RKLS-2-22UXL/8xx XE (4000L) | 30 | 4116 | 4144 | 4200 | ||
| RKLS-2-22UXL/8xx XE (4700L) | 36 | 4930 | 4964 | 5032 | ||
| RKLS-2-22UXL/8xx XE (5400L) | 42 | 5577 | 5616 | 5694 |
