Flexible, Versatile, Controllable
Quick & Easy Install

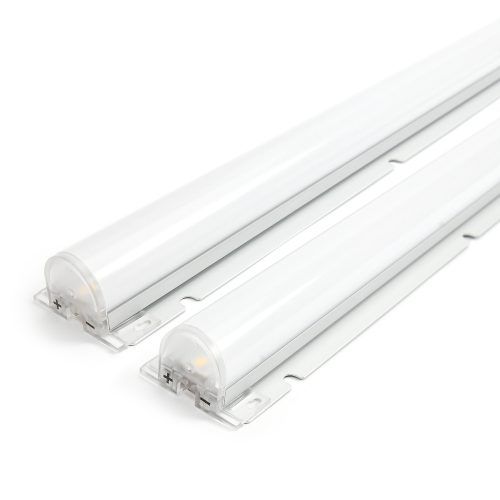

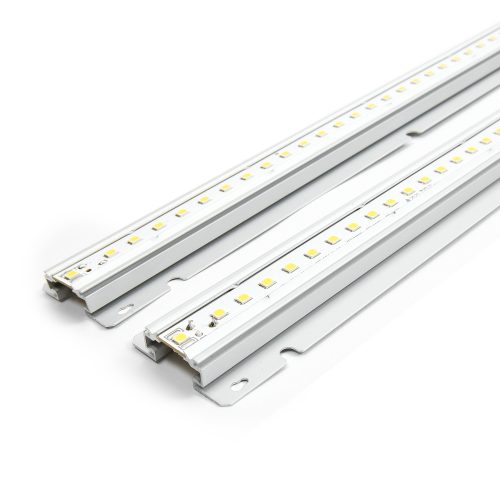

Magnetic LED module bars make alignment and fastening easy. Comes equipped with self-tapping tek screws. Easy and safe wiring.
Versatile and Flexible
Slim profile and modular design enables energy-efficient retrofit of various linear luminaires
Controls and Accessories
0-10V continuous dimming makes the RKLS ideal for use with controls. Compatible with standard EM BBU devices and systems.
Mounting & Installation

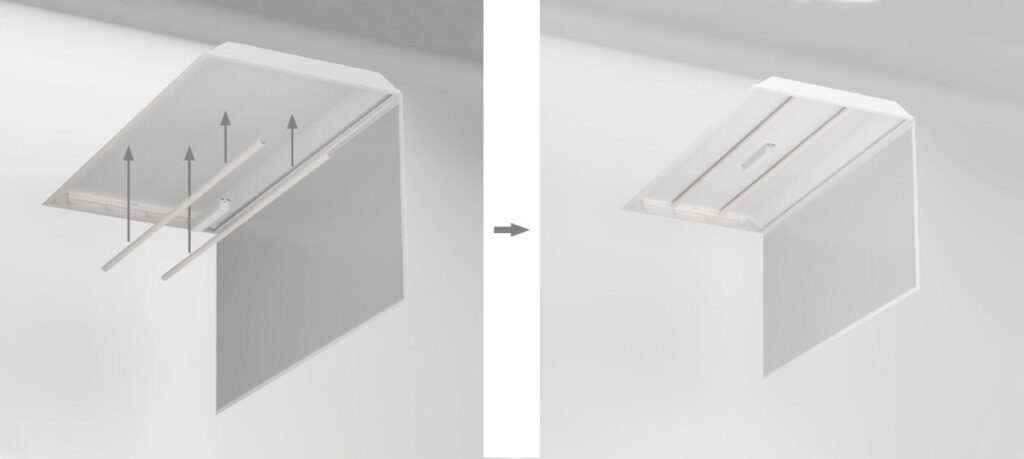

Troffer Application

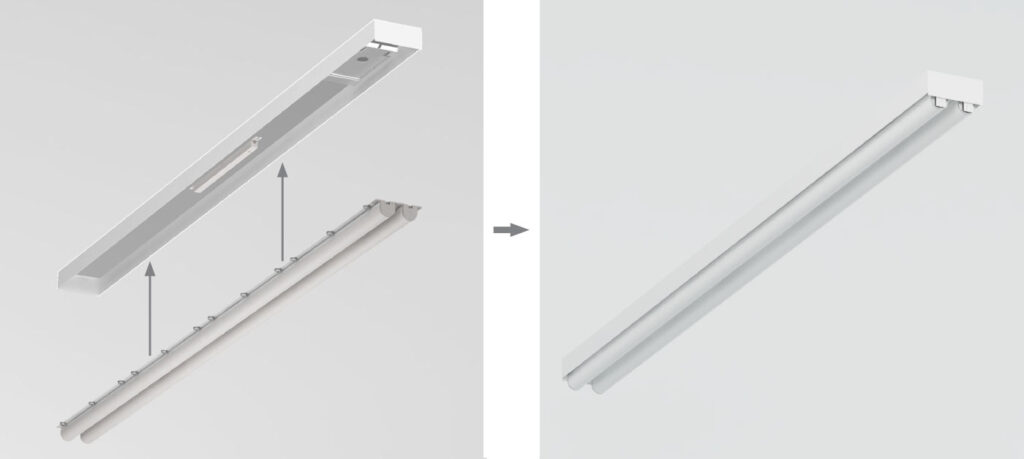

Strip Application
Energy Savings
Energy Savings
Lumen Packages
| MODEL NO. | APPLICATION | NOM. WATTAGE | 3500K LUMENS | 4000K LUMENS | 5000K LUMENS |
|---|---|---|---|---|---|
|
RKLS-2-44UXL/8xx XE (3200L) |
Linear |
24 |
3404 |
3427 |
3450 |
|
RKLS-2-44UXL/8xx XE (4000L) |
30 |
4116 |
4144 |
4172 |
|
|
RKLS-2-44UXL/8xx XE (4700L) |
36 |
4930 |
4964 |
4998 |
|
|
RKLS-2-44UXL/8xx XE (5400L) |
42 |
5577 |
5616 |
5655 |
|
|
RKLS-2-22UXL/8xx XE (3200L)
|
Linear |
24 |
3404 |
3427 |
3473 |
|
RKLS-2-22UXL/8xx XE (4000L)
|
30 |
4116 |
4144 |
4200 |
|
|
RKLS-2-22UXL/8xx XE (4700L)
|
36 |
4930 |
4964 |
5032 |
|
|
RKLS-2-22UXL/8xx XE (5400L)
|
42 |
5577 |
5616 |
5694 |
Specification Features
Quick and Easy Installation

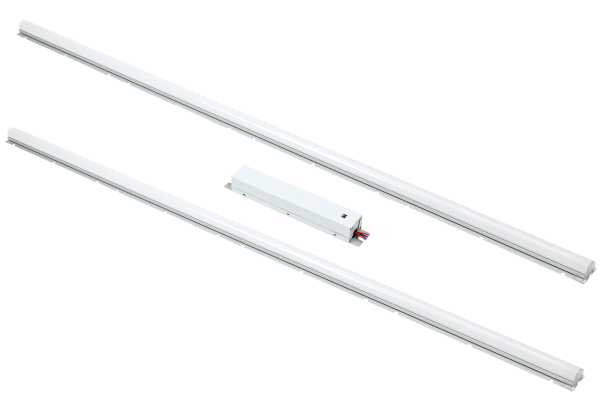

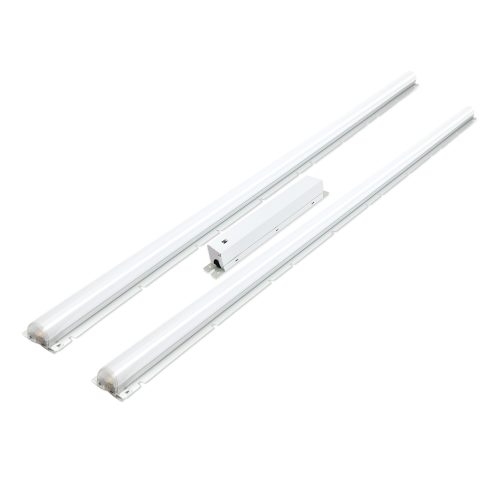

Retrofit kit comes equipped with magnetic LED modules, LED driver, tek screws, luminaire quick disconnect. Easy alignment and fastening. Installs faster than some TLEDs.
Maintenance and Replacement
Modular LED design and external LED driver makes maintenance and replacement easy.
Dimming and Controls
Fully controllable and dimmable retrofit system allows for deep energy savings. 0-10V continuous dimming driver compatible with dimmers and sensors.
Emergency Battery Backup
Unlike TLEDs, the RKLS can easily be integrated with EM BBU drivers to achieve emergency egress lighting.
Safety
The RKLS retrofit kit offers a safe and convenient alternative to TLED tubes. No AC power to sockets or modules. Familiar form factor external driver easily and safely replaces fluorescent systems.
Ultra High Efficacy
Up to 150 lm/W and DLC Premium QPL listed for retrofit of linear ambient and troffers delivers increased savings, optimized ROI, and faster payback periods.
