LPR-BL Series
Slim LED Panel Back-Lit - Field Adjustable
The Aleo LPR-BL™ (SR/RC) Series Slim LED Panel Retrofit Kit delivers industry-leading performance with deep energy savings and continuous dimming. Easy and quick installation reduces labor cost and optimizes ROI. The retrofit kit eliminates the need to replace existing luminaire housing, which reduces install time and disposal/removal costs. The slim profile, modern design produces pleasant, uniform and low-glare illumination, enhancing spaces in various applications.
APPLICATION
Retail, schools, offices, healthcare, and other various commercial applications.
FEATURES AND BENEFITS
- Attractive ROI
- Field Adjustable CCT and Wattage
- Slim profile for easy transportation and installation
- Long life, reduced maintenance
- Lower energy costs
- High lumen output
- 7-year limited warranty
Construction
Simple construction with minimal parts allows for easy handling and installation. Solid rigid frame, post-painted matte white finish for strength and durability. Low profile design optimizes shipping, storage, and handling.
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation.
Installation & Mounting
Installs in most standard T-Bar ceiling grid systems. Retrofit kit fits within troffer and ceiling T-bar grid, eliminating need to remove existing fixture housing. Hinged door retrofit kit design.
Controls & Dimming
Continuous dimming (0-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy savings and code compliance.
Field-Adjustable CCT / Wattage
Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by selecting (3) different wattages and (3) different CCTs via switch on driver.
Optical System
Back-lit optics produces soft balanced, comfortable luminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.
Certifications
UL Listed. All components have UL certification. DLC Listed.
Warranty
7-year Limited Warranty. See warranty documentation for more information.

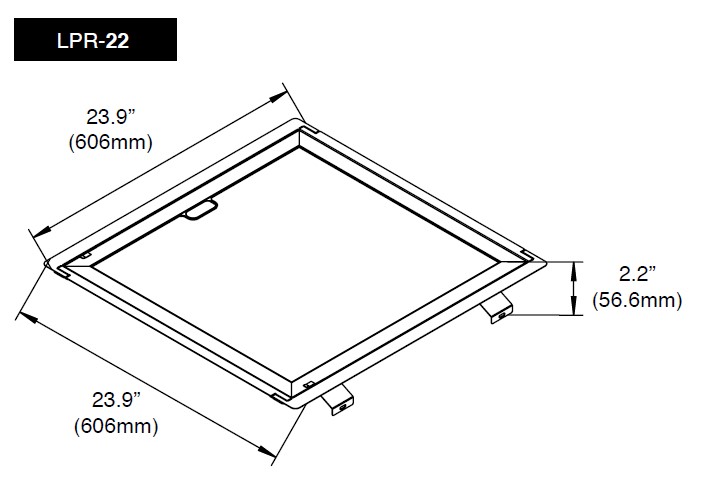

LPR-22 Line Drawing

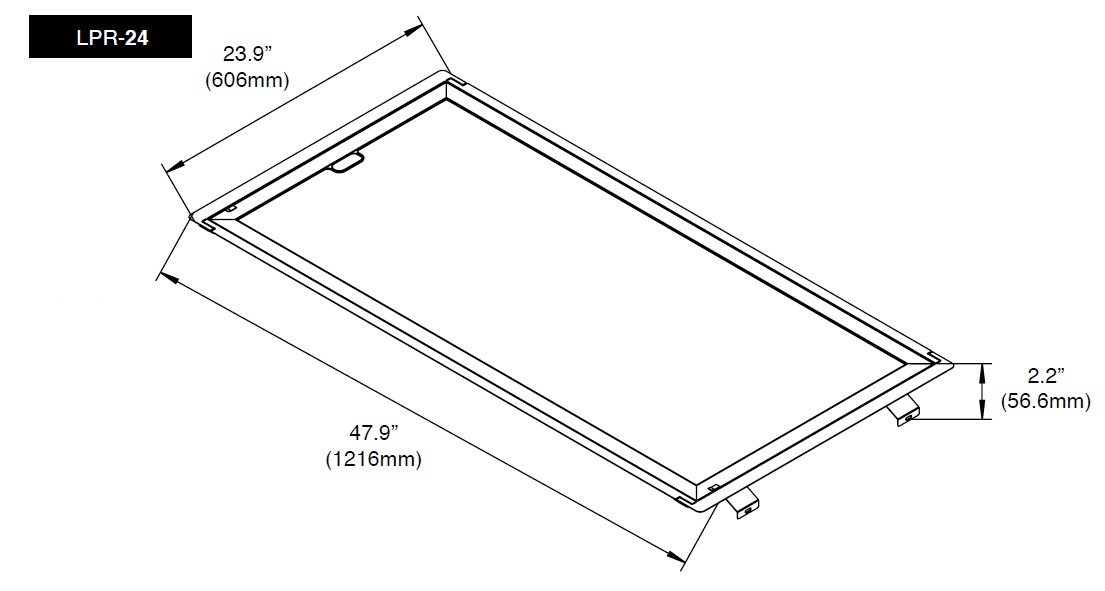

LPR-24 Line Drawing

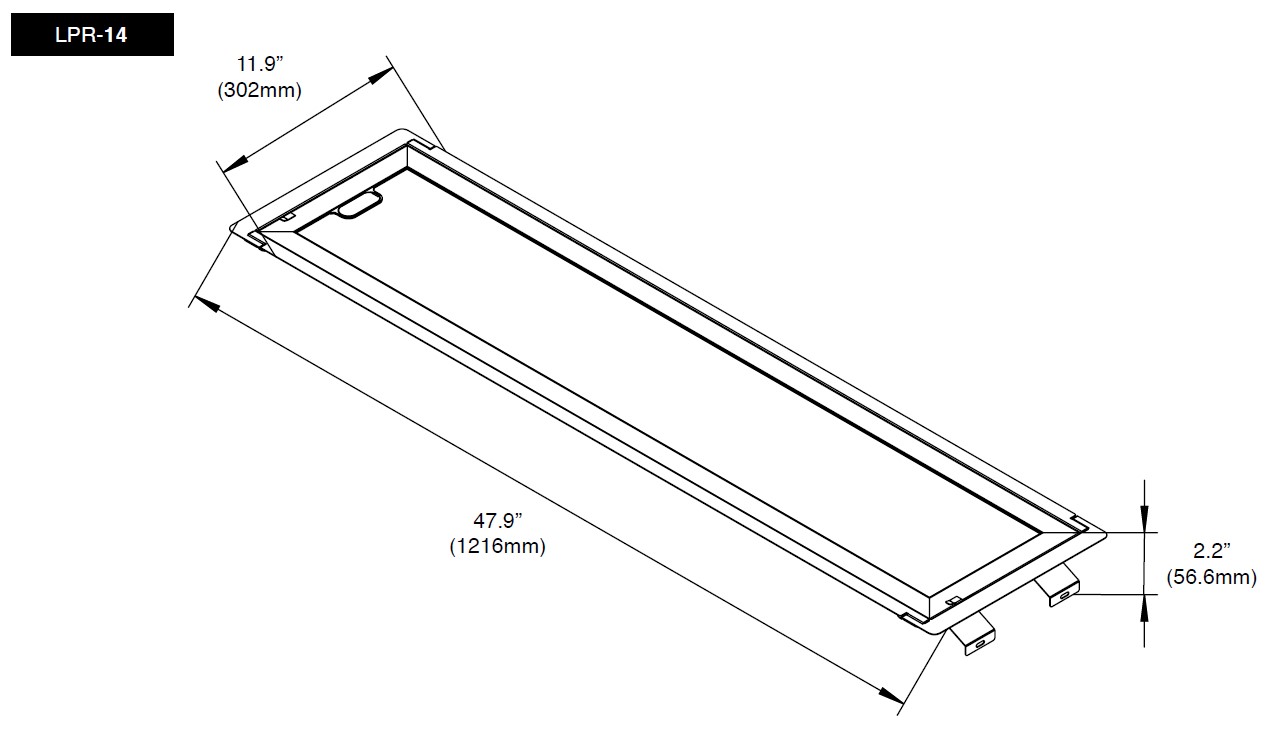

LPR-14 Line Drawing
Specification Sheet
Installation Guide
IES Files
| Form Factor | Catalog No. | Nominal Wattage | Color Temperature | Lumen (lm) | Wattage (W) | Efficacy (lm/W) |
|---|---|---|---|---|---|---|
| 2’x4′ | LPR-BL-24UX-36/8CT G5 (SR/RC) | 18 | 3500K | 2,315 | 18.1 | 127.9 |
| 4000K | 2,465 | 17.3 | 142.5 | |||
| 5000K | 2,410 | 18.3 | 131.7 | |||
| 22 | 3500K | 2,721 | 21.8 | 124.8 | ||
| 4000K | 2,905 | 20.9 | 139.0 | |||
| 5000K | 2,840 | 22.1 | 128.5 | |||
| 25 | 3500K | 3,060 | 25.1 | 121.9 | ||
| 4000K | 3,257 | 24.0 | 135.7 | |||
| 5000K | 3,175 | 25.3 | 125.5 | |||
| 2’x2′ | LPR-BL-22UX-25/8CT G5 (SR/RC) | 18 | 3500K | 2,304 | 18.0 | 128.0 |
| 4000K | 2,423 | 17.2 | 140.9 | |||
| 5000K | 2,331 | 18.1 | 128.8 | |||
| 22 | 3500K | 2,721 | 21.8 | 124.8 | ||
| 4000K | 2,856 | 20.8 | 137.3 | |||
| 5000K | 2,748 | 21.9 | 125.5 | |||
| 25 | 3500K | 3,050 | 25.0 | 122.0 | ||
| 4000K | 3,210 | 23.9 | 134.3 | |||
| 5000K | 3,082 | 25.1 | 122.8 | |||
| 1’x4′ | LPR-BL-14UX-25/8CT G5 (SR/RC) | 23 | 3500K | 3,228 | 21.9 | 147.4 |
| 4000K | 3,356 | 21.0 | 159.8 | |||
| 5000K | 3,258 | 22.0 | 148.1 | |||
| 30 | 3500K | 4,147 | 29.0 | 143.0 | ||
| 4000K | 4,327 | 27.9 | 155.1 | |||
| 5000K | 4,193 | 29.2 | 143.6 | |||
| 36 | 3500K | 5,122 | 37.2 | 137.7 | ||
| 4000K | 5,349 | 35.8 | 149.4 | |||
| 5000K | 5,190 | 37.5 | 138.4 |
