WPL Series
LED Wall Pack Luminaire
The Aleo WPL™ Series combines energy-efficiency, advanced optical control, and modern slim profile aesthetics to deliver enhanced performance to outdoor wall-mount lighting applications. Rugged die-cast housing provides advanced thermal management for long life and weather-proof compartment to withstand challenging, outdoor environments.
APPLICATION
Outdoor wall-mount applications. Building facade. Retail, commercial, industrial exteriors
FEATURES AND BENEFITS
- Attractive ROI
- Rugged construction and design
- Long life, reduced maintenance
- Lower energy costs
- High quality light
- 7-year limited warranty
Construction
Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Weather-proof, gasketed driver compartment protects electronics against environmental elements.
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features universal voltage (120-277V) for convenient installation.
Installation & Mounting
Luminaire comes standard mounting plate for quick and easy installation.
Controls & Dimming
Suitable for use with sensors and daylight harvesting to achieve deeper energy-savings and code compliance. Sensor accessory available: occupancy sensing with daylight cut-off and photocell (must order with wall pack extension accessory).
Optical System
Precision-formed optical lens system improves safety and security by delivering high-efficiency illumination with precise optical distribution. Type III Med. distribution comes standard.
Certifications
ETL Listed. All components have safety certification. DLC Premium QPL listed
Warranty
7-year Limited Warranty. See warranty documentation for more information.

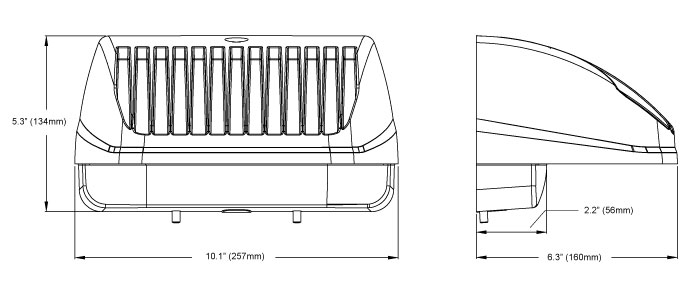

WPL-42 Line Drawing

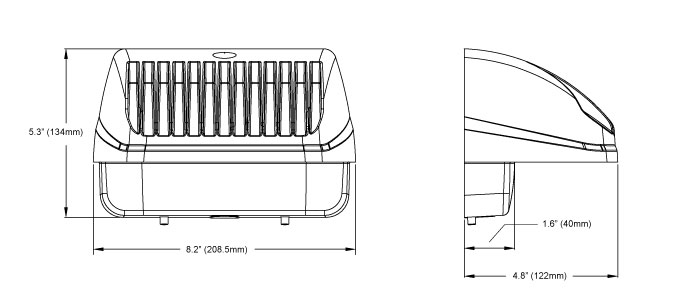

WPL-24 Line Drawing
Specification Sheet
Installation Guide
IES Files
Form Factor | Model No. | Wattage | Lumens |
---|---|---|---|
Small | WPL-24/50K XE G3 | 24W | 2,724 |
Large | WPL-42/50K XE G3 | 42W | 4,382 |
