STL UX Series
LED Stairwell Strip Luminaire - CCT Select
The Aleo STL™ UX Series CCT Field Adjustable Stairwell Strip Luminaire delivers high performance with deep energy savings. The LED luminaire comes equipped with a multi-level occupancy sensor enhancing safety and security in stairwells, hallways and corridors.
APPLICATION
Excellent for general utility applications: Stairwell, Hallways, Corridors, Closets, Pathways
FEATURES AND BENEFITS
- Attractive ROI
- Super Slim Profile
- Ideal for use with sensor and advanced controls
- Long life, reduced maintenance
- Lower energy costs
- High quality light
- 7-year limited warranty
Construction
Integral LED gear tray and reflector with driver on board allows for easy installation and handling. Luminaire features matte white durable finish. Diffuser requires no additional frame or fastener for easy installation.
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped with luminaire quick-disconnect.
Installation & Mounting
Ideal for wall or ceiling surface mount. Mount via keyholes or directly to J-Box.
Controls & Dimming
0-10V dimming comes standard. Comes equipped with High Frequency (microwave) multi-level occupancy sensor for a bi-level (high/low) system.
Optical System
Reflector systems features highly reflective coating and delivers balanced, comfortable illuminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high effciency emission.
Certifications
UL Listed. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2. DLC Premium
Warranty
7-year Limited Warranty. See warranty documentation for more information.
Model No. | Nom. Wattage | 3500K Lumens | 4000K Lumens | 5000K Lumens |
---|---|---|---|---|
STL-4UXH/8CT XE G4-OSDL/HF (XX) | 25W | 3475 | 3850 | 3575 |
34W | 4590 | 5100 | 4726 | |
40W | 5280 | 5880 | 5440 |
Model No. | Description |
---|---|
-OSDL/HF | High Frequency Multi-Level Occ. Sensor (comes standard) |
-EM1800 | Emergency battery backup, 1800 lm (comes standard) |

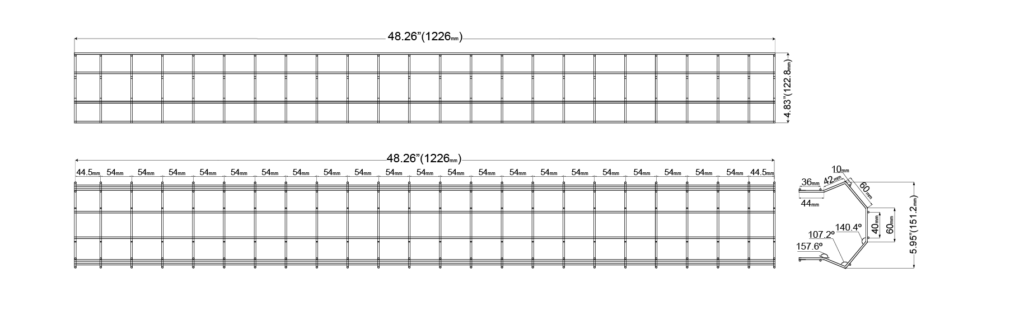

-STL-WG-4 | Wire Guard for Stairwell Strip STL 4′ (sold separately) |
