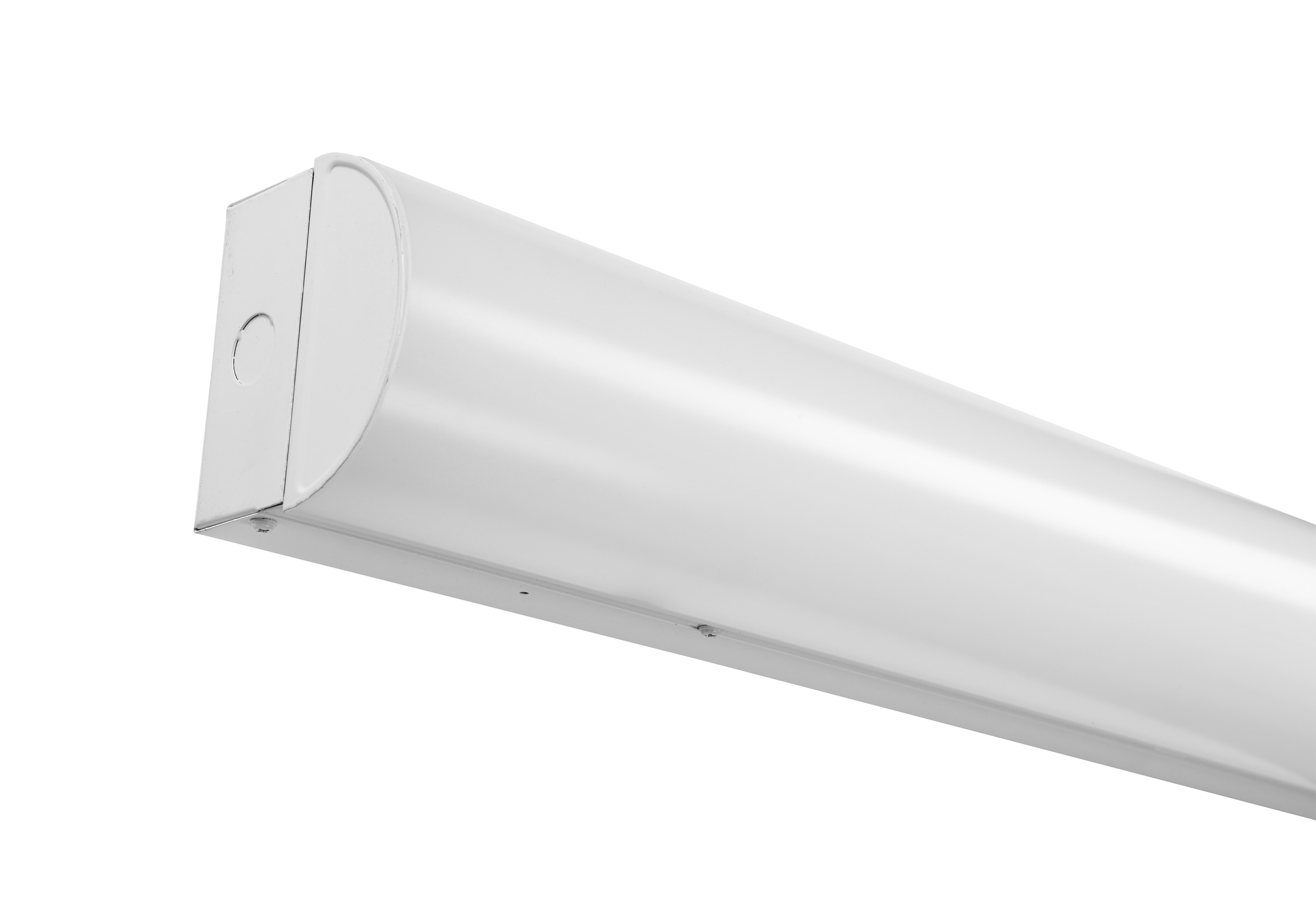

Stairwell Strip Luminaire

High / Low Occupancy Sensing Improved Safety and Security
STL UX Series

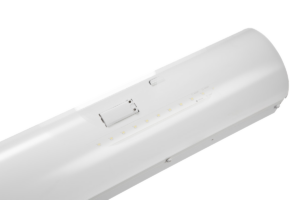

MULTI-LEVEL OCC SENSOR

0-10V dimming comes standard. Equipped with High Frequency (microwave) multi-level occupancy sensor for a bi-level (high/low) system

EMERGENCY BATTERY BACKUP

Emergency Battery Backup System available: 1800 lm, 90 min. Test Switch included

FIELD-ADJUSTABLE CCT

Increased versatility and reduced inventory burden. Color Temp. can be adjusted in the field by selecting (3) different CCTs via switch on driver box

Lumen Packages

Form Factor Model No. Nom. Wattage 3500K Lumens 4000K Lumens 5000k LUMENS

4′

STL-4UXH/8CT XE G4-OSDL/HF (XX)
25
3475
3850
3575
34
4590
5100
4726
40
5280
5880
5440

Energy Savings

0%

Energy Savings

Hours Rated Life
0
lm/W
0
0%

Reduction in Maintenance Cost

Specification Features

em bbu

Emergency Battery Backup comes standard with the STL providing 1800 lm of egress illumination for 90 min.

DAMP LOCATION RATED

Dampness rating makes luminaire ideal for a variety of applications where dampness exists, like car washes and outdoor pathways.

VERSATILE MOUNTING OPTIONS

Ideal for wall or ceiling surface mount. Mounts via keyholes or directly to J-Box.

LED Systems

STL Luminaire utilizes high-performance components to deliver industry-leading efficacy and reliability. Modular LED modules and driver allow for serviceability and maintenance.​

Finish

High-quality post-painted powder coating allows easy handling and installation. No rough edges. high reflectivity coating improves optics and reflectivity​

OPTICAL DIFFUSER

Reflector system features highly reflective coating, delivering adequate light for stairwells and hallways. Diffuser lens reduces glare and improves safety and security ​
