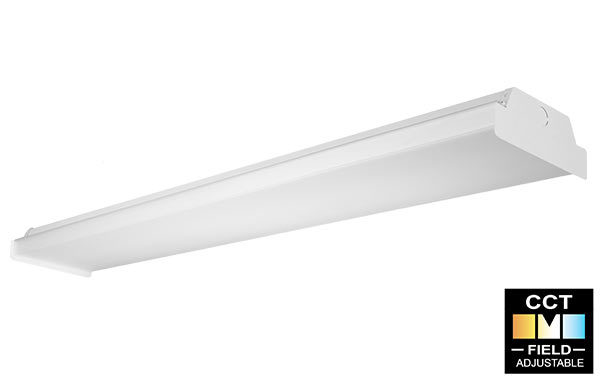

LWA UX Series
LED Commercial Wrap Luminaire – Field Adjustable
The Aleo LWA™ UX Series Commercial Wrap Luminaire delivers industry-leading performance with deep energy savings and continuous dimming. Low profile design offers easy handling and storage. This versatile luminaire produces energy-efficient, comfortable illumination for a myriad of applications.
APPLICATION
Excellent for general utility applications: storage closets, restrooms, hallways, corridors, stairwells.
FEATURES and BENEFITS
- Reduces Inventory and Increases Flexibility
- Field Adjustable CCT and Lumen Output
- Long life, reduced maintenance
- 7-year Limited warranty
- UL
Construction
Modular LED and driver allows for serviceability and maintenance. Luminaire features matte white durable finish. Diffuser requires no additional frame or fastener for easy installation.
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped with luminaire quick-disconnect.
Installation and Mounting
Controls and Dimming
Continuous dimming (0-10V) comes standard. Suitable for use with dimmers, sensors, daylight harvesting and other control strategies to achieve deeper energy savings and code compliance.
Optical System
Reflector systems features highly reflective coating and delivers balanced, comfortable illuminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.
Field Adjustable CCT
Increased versatility and reduced inventory burden. Color Temp. can be adjusted in the field by selecting (3) different CCTs via switch on driver box.
Certifications
UL Listed. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2.
Warranty
7-year Limited Warranty. See warranty documentation for more information.
| Form Factor | Model No. | Nom. Wattage | 3500K Lumens | 4000K Lumens | 5000K Lumens |
|---|---|---|---|---|---|
| 4′ |
LWA-4UXH-40/8CT XE G4 |
30 | 4260 | 4500 | 4290 |
| 35 | 4795 | 5075 | 4830 | ||
| 40 | 5400 | 5720 | 5440 |
| Model No. | Description |
|---|---|
| EM700 | Emergency battery backup, 700 lm |
| EM1400 | Emergency battery backup, 1400 lm |
| OSDL/BT | AleoBlue Wireless Bluetooth Occupancy Sensor |
| WLC/BT | Wireless Bluetooth Lighting Control Node |
| OSDL/HF/IR | Multi-Level High Frequency Occ Sensor IR Commissioning |
*Will be supplied with side fixture-mounting sensor, unless specified
