LT-CD BTEZ with SimplBlue

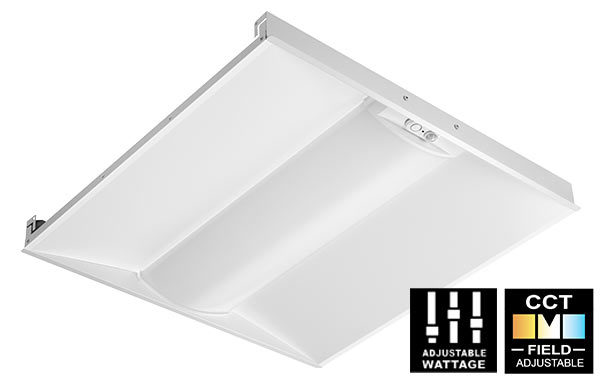

Volumetric LED Troffer – SimplBlue Bluetooth Mesh Sensor

The Aleo LT-CD™ BTEZ Series LED Field Adjustable Troffer delivers industry-leading Versatility with deep energy savings and continuous dimming. The precision-formed diffuser produces comfortable and pleasant illumination, enhancing productive spaces in various applications.

Now Quick Ship items equipped with our SimplBlue Wireless Bluetooth Mesh System (NLC) occupancy sensor with daylight (LLLC).

Download Spec SheetLearn More

APPLICATION

Provides architectural aesthetics for retail, schools, offices, healthcare, and other various commercial applications.

FEATURES and BENEFITS

  • SimplBlue Wireless Bluetooth Mesh Networked Lighting Control System (NLC)
  • DLC NLC5
  • Luminaire Level Lighting Control (LLLC) for maximum energy savings, versatility, and rebate incentive optimization
  • Reduces Inventory and Increases Flexibility
  • Field Adjustable CCT and Lumen Output
  • 7-year Limited warranty
  • UL and DLC Premium

Construction

Simple construction with minimal parts allows for easy handling and installation. Low profile design optimizes shipping, storage, and handling. Luminaire features matte white durable finish. Integral T-Bar clips built into luminaire. Diffuser requires no additional frame or fastener for easy installation.

Optical System

Reflector systems features highly reflective coating and delivers balanced, comfortable illuminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.

Certifications

UL Listed. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2.

Warranty

7-year Limited Warranty. See warranty documentation for more information.

Electrical

Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped with luminaire quick-disconnect.

Field-Adjustable CCT / Wattage

Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by using SimplBlue app to set CCT / lumen level.

Installation and Mounting

Installs in most standard T-Bar ceiling grid systems. Flange kit available for hard-lid/drywall applications

Controls / Dimming

Comes with built-in wireless Bluetooth Mesh occupancy sensing with daylight harvesting. Utilizes SimplBlue app for commissioning manual control. Continuous dimming (0-10V) comes standard. Integrated with daylight harvesting PIR sensor to achieve deeper energy-savings and code compliance.

2x2 Line Drawing

LT-CD-BTEZ-22

2x4 Line Drawing

LT-CD-BTEZ-24

Specification Sheet

LT-CD BTEZ Spec Sheet

Images

IES Files

LT-CD BTEZ IES Files

Form Factor Model No. Nom. Wattage 3000K Lumens 3500K Lumens 4000K Lumens 5000K Lumens
2’x4′ LT-CD-24-UXL-45/8CT G5 ECO/OSDL/BTEZ 45 5895 6030 6030 5940
2’x2′ LT-CD-22-UXL-35/8CT G5 ECO/OSDL/BTEZ 35 4375 4515 4550 4410

Model No. Description
-EM700 Emergency battery backup, 700 lm
-EM1400 Emergency battery backup, 1400 lm
