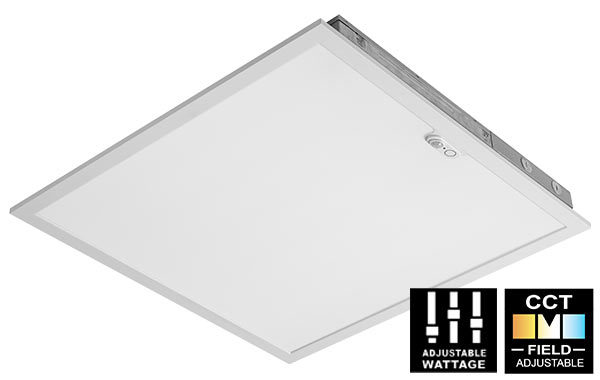

LPS-BL BTEZ with SimplBlue
Slim LED Panel Back-Lit – SimplBlue Bluetooth Mesh Sensor
The Aleo LPS-BL™ BTEZ Series LED Field Adjustable Panel delivers industry-leading performance with deep energy savings and continuous dimming. The slim profile, modern design produces pleasant, uniform and low-glare illumination, enhancing spaces in various applications.
Now Quick Ship items equipped with our SimplBlue Wireless Bluetooth Mesh System (NLC) occupancy sensor with daylight (LLLC).
APPLICATION
Retail, schools, offices, healthcare, and other various commercial applications.
FEATURES and BENEFITS
- SimplBlue Wireless Bluetooth Mesh Networked Lighting Control System (NLC)
- DLC NLC5
- Luminaire Level Lighting Control (LLLC) for maximum energy savings, versatility, and rebate incentive optimization
- Attractive ROI
- Field Adjustable CCT and Wattage
- Slim profile for easy transportation and installation
- Lower energy costs
- High lumen output
- 7-year limited warranty
Construction
Solid rigid frame, post-painted matte white finish for strength and durability. Low profile design optimizes shipping, storage, and handling. Integral T-Bar clips built into luminaire. Integrated parts and diffuser for easy installation and handling.
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation.
Installation and Mounting
Installs in most standard T-Bar ceiling grid systems. Compatible with standard 15/16” and 9/16” T-bar grid ceilings
Controls and Dimming
Comes with built-in wireless Bluetooth Mesh occupancy sensing with daylight harvesting. Utilizes SimplBlue app for commissioning manual control. Continuous dimming (0-10V) comes standard. Integrated with daylight harvesting PIR sensor to achieve deeper energy-savings and code compliance.
Field-Adjustable CCT / Wattage
Increased versatility and reduced inventory burden. Wattage and Color Temp. can be adjusted in the field by using SimplBlue app to set CCT / lumen level.
Optical Systems
Back-lit optics produces soft balanced, comfortable luminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.
Certification
UL Listed. All components have UL certification.
Warranty
7-year Limited Warranty. See warranty documentation for more information.
| Form Factor | Model No. | Wattage | 3000K Lumens | 3500K Lumens | 4000K Lumens | 5000K Lumens |
|---|---|---|---|---|---|---|
| 2’x2′ | LPS-BL-22UX-30/8CT G5 ECO/OSDL/BTEZ | 30 | 3810 | 3930 | 3990 | 3960 |
| 2’x4′ | LPS-BL-24UX-40/8CT G5 ECO/OSDL/BTEZ | 40 | 5040 | 5120 | 5120 | 5080 |
| Model No. | Description |
|---|---|
| -EM1400 | Emergency battery backup, 1400 lm |
