LPA Series
Linear Architectural Pendant
The Aleo LPA Series provides an elegant, slim-profile linear luminaire that delivers high-quality, comfortable illumination. Clean lines and discrete profile makes this a versatile solution to lift the ambiance of a variety of commercial spaces.
APPLICATION
Excellent for illuminating high-end, architectural spaces: offices, open-ceilings, shared working spaces, conference rooms, libraries.
FEATURES AND BENEFITS
- Attractive ROI
- Frosted PMMA diffuser lens
- Long life, reduced maintenance
- Lower energy costs
- High quality light
- 7-year limited warranty
Construction
Top of the line craftsmanship using an extruded aluminum channel housing. Specification-grade powder coat finish and end-cap construction. Modern design with no visible fasteners.
Electrical
Luminaire utilizes high-efficiency LED arrays maintained at cool temperatures for long life and reliability. 120V-277V input. Flicker-free driver.
Installation & Mounting
Suspended or surface-mount options via mounting clips. Comes standard with 8’ aircraft hanging kit and canopy kit. Comes equipped standard with 8’ white SO cord.
Optical System
Optimal glare control, uniform illumination. Options of direct/indirect (up and down) or direct (down) illumination. Frosted PMMA diffuser lens.
Controls & Dimming
Continuous dimming (0-10V) comes standard. Suitable for use with controls.
Certifications
ETL Listed. DLC Premium.
Warranty
7-year Limited Warranty. See warranty documentation for more information.
Specification Sheet
Installation Guide
IES Files
Form Factor | Model No. | Wattage | Lumens |
---|---|---|---|

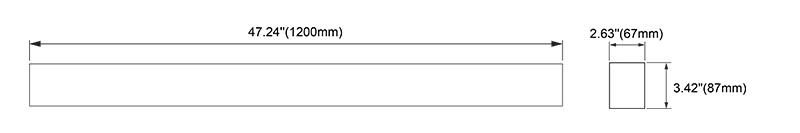

4′ length | LPA-DR-4HE-30/835K | 29W | 3915 |
4′ length | LPA-IND-4LE-33/835K | 33W | 4455 |

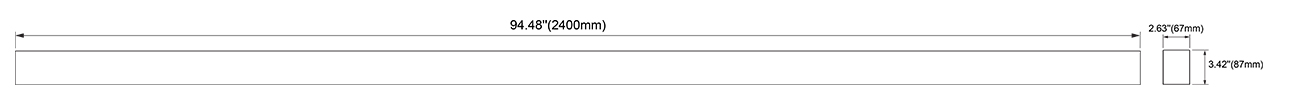

8′ length | LPA-DR-8HE-60/835K | 57W | 7695 |
8′ length | LPA-IND-8LE-66/835K | 66W | 9240 |
