ALS Series
Slim LED Area Luminaire
The Aleo ALS™ Series combines energy-efficiency, advanced optical control, and modern slim profile aesthetics to deliver enhanced performance to area lighting applications. Rugged die-cast housing provides advanced thermal management for long life and weather-proof compartment to withstand challenging, outdoor environments.
APPLICATION
Parking lots, walkways, auto dealerships, outdoor retail shopping centers, recreational spaces, campuses.
FEATURES AND BENEFITS
- Attractive ROI
- Low Profile, Slim Design
- Rugged construction and design
- Long life, reduced maintenance
- Lower energy costs
- High quality light
- 7-year limited warranty
Construction
Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Weather-proof, gasketed driver compartment protects electronics against environmental elements.
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features universal voltage (120-277V) for convenient installation.
Installation & Mounting
Luminaire comes standard with straight-arm mounting accessory. Versatile platform includes different mounting options, including: u-bracket trunion, slip-fitter, wall-mount.
Controls & Dimming
Suitable for use with sensors and daylight harvesting to achieve deeper energy-savings and code compliance. Sensor accessory available: occupancy sensing with daylight cut-off and photocell.
Optical System
Precision-formed optical lens system reduces glare and improves safety and security by delivering high-efficiency illumination with precise optical distribution. Type III distribution comes standard. Type V distribution available.
Certifications
ETL Listed. All components have ETL certification. DLC Premium QPL
Warranty
7-year Limited Warranty. See warranty documentation for more information.

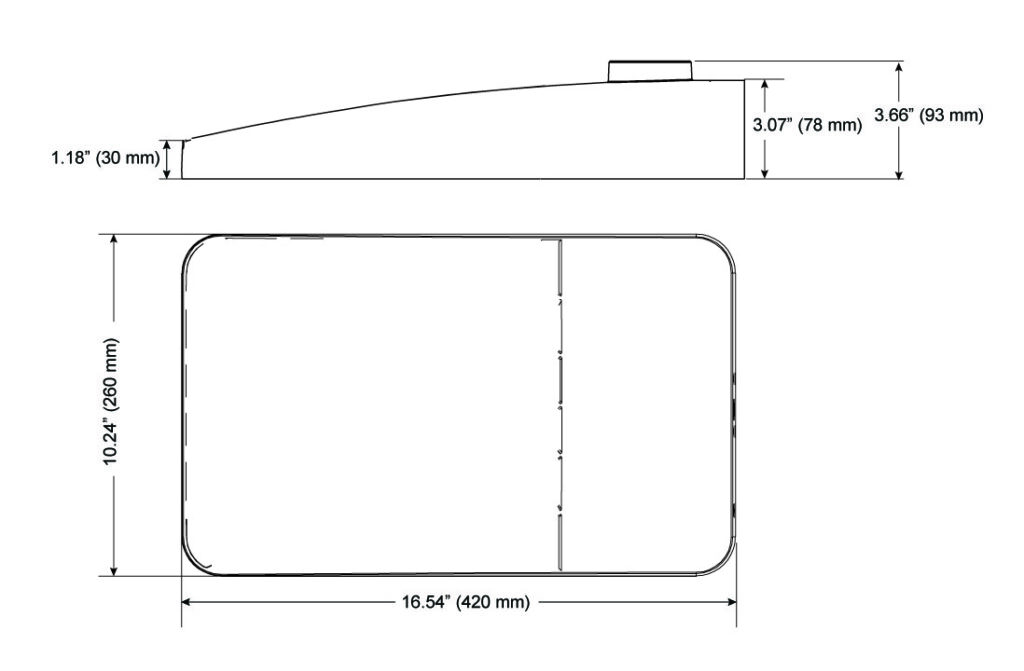

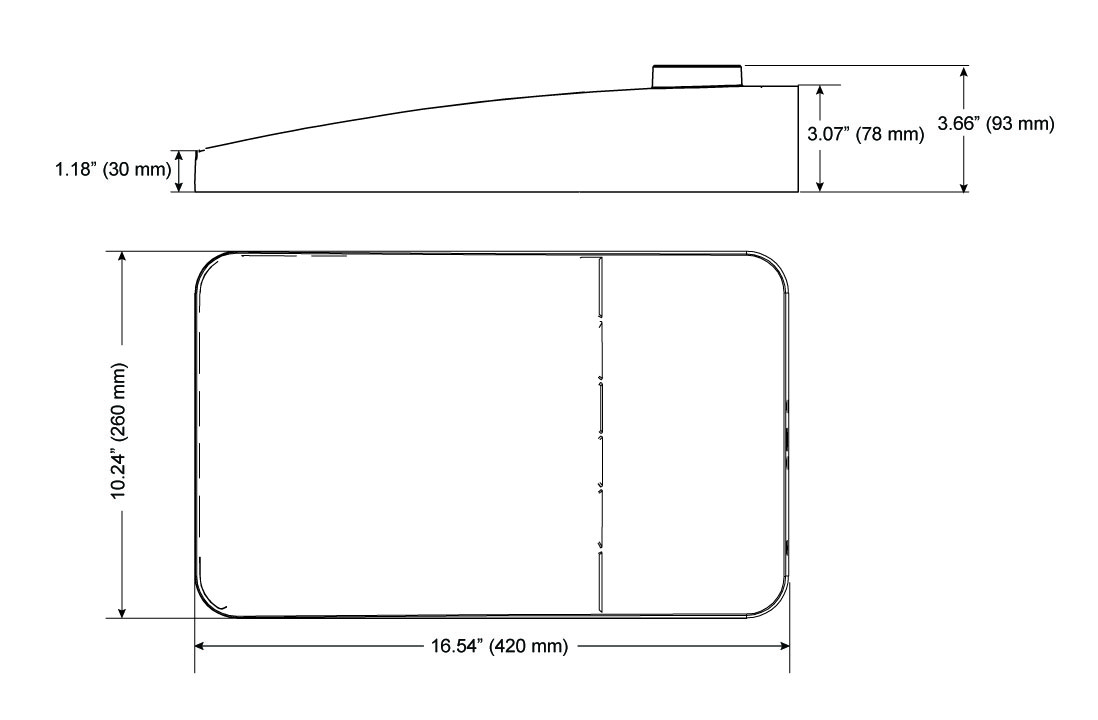

Line Drawing
Specification Sheet
Installation Guide
IES Files
| Model No. | Wattage (Nom.) | Lumens |
|---|---|---|
| ALS-70/50K XE G3 | 70W | 10,486 |
| ALS-100/50K XE G3 | 100W | 14,324 |
| ALS-150/50K XE G3 | 150W | 21,045 |
