Unbeatable Performance and Versatility
easy installation
Proprietary mounting system enables quick and easy mounting and installation with various options.
plug 'n' play sensor
Deeper energy savings and code compliance becomes simple and easy with sensor receptacles. Choose from a variety of sensor options, saving time and labor.
Versatile
Lumen Select and CCT Select allow for quick field adjustments to accommodate any job. Reduce SKUs, simplify ordering, and increase flexibility on the jobsite.
Lumen Packages
| MODEL NO. | Input Voltage | NOM. WATTAGE | 3000K LUMENS | 4000K Lumens | 5000K Lumens |
|---|---|---|---|---|---|
|
ALX-150UX/CT (SR/RC) |
120V-277V |
70 |
9436 |
10608 |
9887 |
|
100 |
13347 |
15003 |
13982 |
||
|
150 |
19825 |
22296 |
20779 |
||
|
ALX-300UX/CT (SR/RC)
|
200 |
27570 |
30506 |
28355 |
|
|
240 |
32744 |
36243 |
33685 |
||
|
300 |
40535 |
44847 |
41681 |
||
|
ALX-150UX/CT HV (SR/RC)
|
277V-480V |
70 |
9410 |
10622 |
10316 |
|
100 |
13318 |
15032 |
14603 |
||
|
150 |
19777 |
22319 |
21691 |
||
|
ALX-300UX/CT HV (SR/RC) |
200 |
26805 |
30176 |
29742 |
|
|
240 |
31856 |
35853 |
35333 |
||
|
300 |
39433 |
44369 |
43719 |
Energy Savings
Energy Savings
Reduction in Maintenance Cost
alx led area luminaire Series
Special Features
CONSTRUCTION
Rugged, die-cast housing with advanced thermal management system ensures reliability and durability. Luminaire features matte bronze durable finish.
installation & mounting
Luminaire comes standard with universal mounting adapter. Versatile platform includes different mounting options, including: straight arm, trunion, slip-fitter, yoke mount and rotatable pole-mount.
CONTROLS
Suitable for use with sensors and photocells to achieve deeper energy-savings and code compliance. Comes standard with receptacle for plug and play occupancy sensor or photocell.
Advanced Optics
Precision-formed optical lens system reduces glare and improves safety and security by delivering highefficiency illumination with precise optical distribution. Type III distribution comes standard. Type II, III, IV and V available.
Mounting OPTIONS

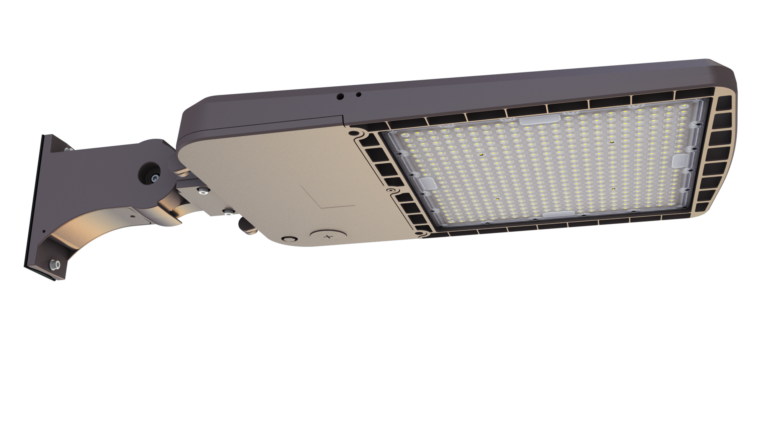

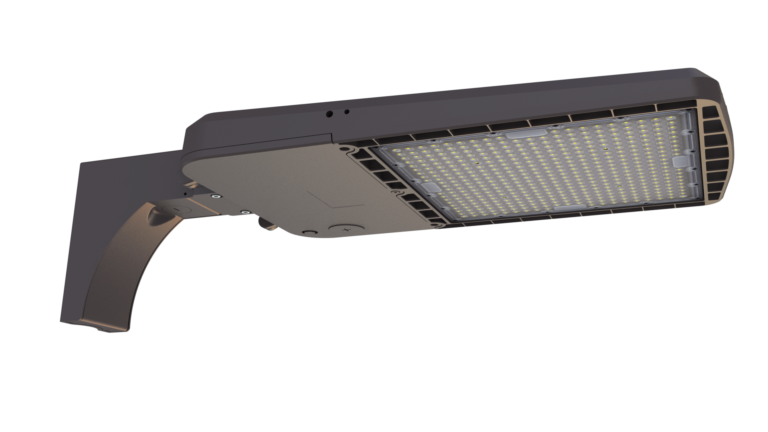

STRAIGHT ARM
( Sold Separately )

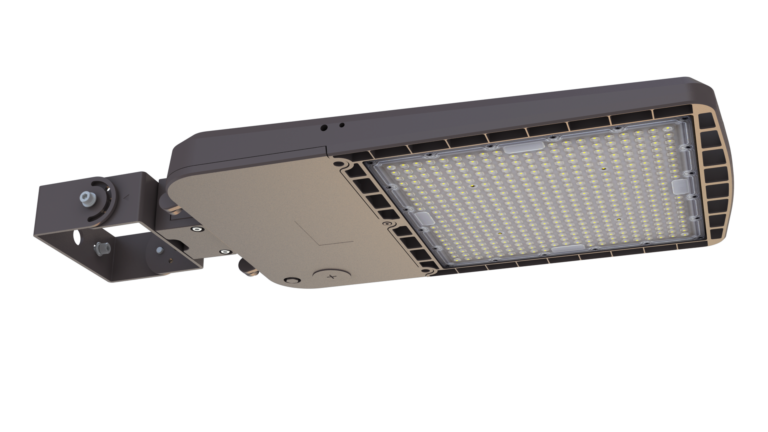

SLIP FITTER
( Sold Separately )
U-BRACKET TRUNION
( Sold Separately )

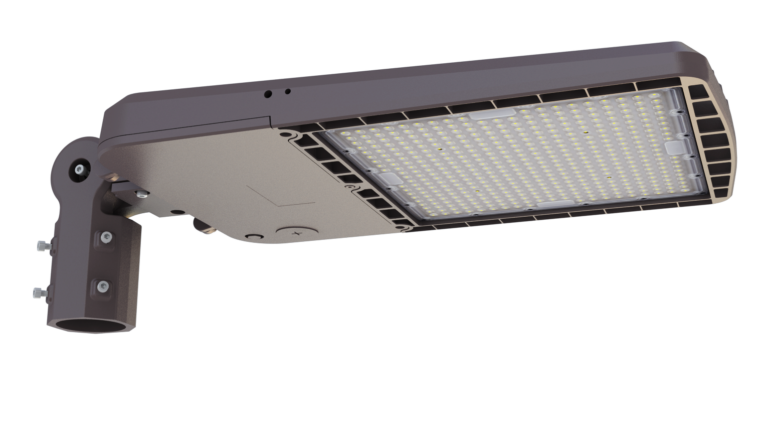

ROTATABLE POLE
( Sold Separately )

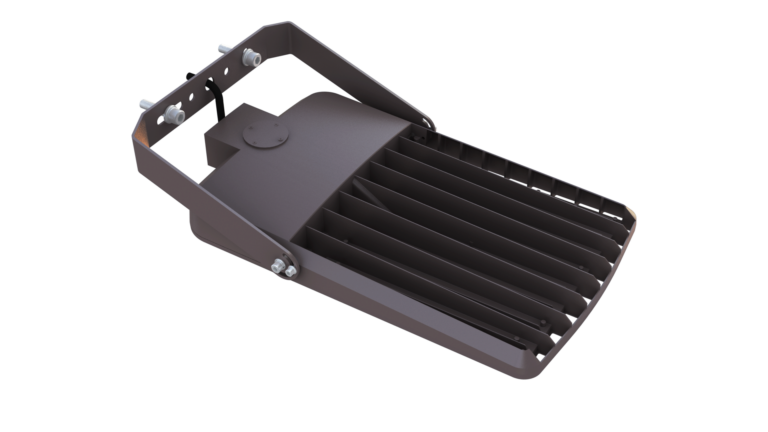

YOKE
( Sold Separately )
backshield OPTIONS
Plug & Play Sensor
Easy Field Install Occupancy Sensor with Daylight
- Save on labor and time with easy field installation.
- Easy energy code compliance.
- No more factory lead time required.
- AleoBlue and SimplBlue wireless Bluetooth networked sensors available.
- May help qualify for luminaire-level lighting control (LLLC) rebates.
