LT-CD (SR/RC) Series
Volumetric LED Troffer - Sensor Ready

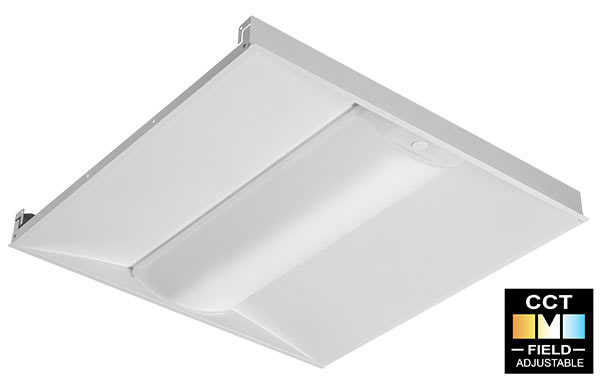

The Aleo LT-CD™ (SR/RC) Series LED Field Adjustable Troffer delivers industry-leading Versatility with deep energy savings and continuous dimming. The precision-formed diffuser produces comfortable and pleasant illumination, enhancing productive spaces in various applications.
Sensory Ready quick connect port enables plug and play field installation of AleoBlue Wireless Bluetooth Mesh Networked Lighting Control (NLC) occupancy sensors with daylight (LLLC).
APPLICATION
Provides architectural aesthetics for retail, schools, offices, healthcare, and other various commercial applications.
FEATURES AND BENEFITS
- Reduces Inventory and Increases Flexibility
- Field Adjustable CCT
- AleoBlue – Wireless Bluetooth Mesh Networked Lighting Controls (NLC)
- Sensor Ready with Quick Connect Port
- Field Install Plug and Play Sensor
- Luminaire-level Lighting Controls (LLLC)
Construction
Simple construction with minimal parts allows for easy handling and installation. Low profile design optimizes shipping, storage, and handling. Luminaire features matte white durable finish. Integral T-Bar clips built into luminaire. Diffuser requires no additional frame or fastener for easy installation.
Optical System
Reflector systems features highly reflective coating and delivers balanced, comfortable illuminance for productive spaces. Diffuser lens reduces glare and improves occupant comfort while maintaining high efficiency emission.
Certifications
UL Listed. All components have UL certification. UL Class 2. Driver: SCP, OTP, OVP protection, FCC Part 15 Class B, UL8750 Class 2.
Controls & Dimming
Continuous dimming (0-10V) comes standard. Luminaire is sensor-ready with quick-connection port to accept AleoBlue luminaire-level lighting control (LLLC) sensor. Easily upgrade to an AleoBlue Networked Lighting Controls (NLC) system with field installable, plug and play sensors and control nodes. AleoBlue offers advanced lighting controls, easy code compliance, and intuitive commissioning.
Warranty
7-year Limited Warranty. See warranty documentation for more information.
Electrical
Luminaire utilizes high-efficacy LED packages maintained at cool temperatures for long life, high efficacy. Reliable driver features continuous dimming. Universal voltage (120-277V) for convenient installation. Comes equipped with luminaire quick-disconnect.
Field-Adjustable CCT / Wattage
Increased versatility and reduced inventory burden. Color Temp. can be adjusted in the field by selecting (3) different CCTs via switch on driver box.
Installation & Mounting
Installs in most standard T-Bar ceiling grid systems. Flange kit available for hard-lid/drywall applications.
2X4 Line Drawing
2X2 Line Drawing
1X4 Line Drawing
Specification Sheet
Installation Guide
IES Files
| Form Factor | Model No. | Nom. Wattage | 3500K Lumens | 4000K Lumens | 5000K Lumens |
|---|---|---|---|---|---|
| 1’x4′ |
LT-CD-14-UXL-30/8CT G5 ECO |
20 | 2840 | 3080 | 2880 |
| 25 | 3450 | 3750 | 3500 | ||
| 30 | 4020 | 4380 | 4080 | ||
| 2’x2′ | LT-CD-22-UXL-30/8CT G5 ECO (SR/RC) | 20 | 2820 | 2980 | 2840 |
| 25 | 3425 | 3625 | 3450 | ||
| 30 | 4020 | 4260 | 4050 | ||
| 2’x4′ | LT-CD-24-UXL-34/8CT G5 ECO (SR/RC) | 25 | 3500 | 3750 | 3600 |
| 30 | 4080 | 4380 | 4200 | ||
| 35 | 4655 | 5005 | 4795 |
| Model No. | Description |
|---|---|
| -EM700 | Emergency battery backup, 700 lm |
| -EM1400 | Emergency battery backup, 1400 lm |
